Fig 8 Outdoor 7 Strand Wire Self-Supporting Armored Optical Fiber Cable (GYXTC8S)

Fig 8 Outdoor 7 Strand Wire Self-Supporting Armored Optical Fiber Cable (GYXTC8S)
Supplier: Ningbo Haishu Efon Communication Equipment Limited
Price: US $ 0.126-0.5/Meter
Min Order: 2000/Meter
Quantity::
Trade Terms: FOB,CIF
contact supplier

Product Specifications

Prod Model: GYXTC8S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type: Sm G652D
Fiber Material: Doped Silica
Fiber: Single Mode
Armored: Aluminium Tape/Steel Tape
Loose Tube: Central Loose Tube
Diameter Of Self Support Member: 0.9mm*7;1.0mm*7;1.2mm*7;1.5mm*7
Material Of Jacket: Lszh/PE /Flame Retardant Sheath
Bending Radius: Static 10*Cable-D: Dynamic 20*Cable-D
Max Tension: 4000n
Applications: for Hanging on Poles
Type: Single-mode Fiber
Application: Communication
Certification: CCC
Brand: Efon
Core: 2-288
Sheath Material: Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent
Connection Structure: Other

Product Description


Description

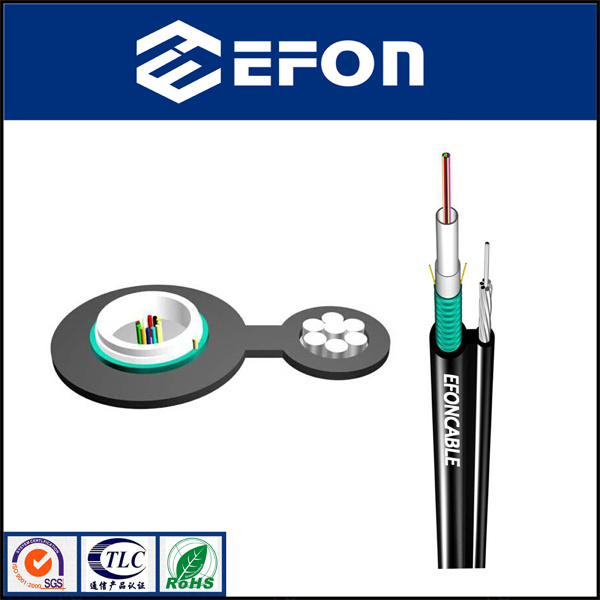

     The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure 8 self-supporting structure provide high tensile strength and enab les easy and cost aerial installations.

Features:

  • Unitube design. Up to 24fibers.
  • Water blocking, UV resistance, High and low temperature resistance.
  • The corrugated steel tape(CST) armor provide desirable crush resistant.
  • Adopt strict process and raw materials control guarantee the lifespan more than 30 years.



 Application:



For hanging on poles

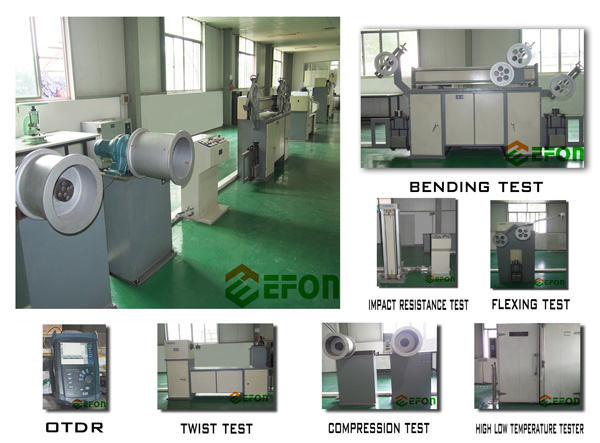

TEST CENTRE
PACKAGING


Products Standard
Mechanical Performance :
Max Tension Performance  : IEC 60794–1-2-E
Max. Operation Tension     : IEC 60794–1-2-E1
Crush Test                        : IEC 6079 –1-2-E3
Impact Test                      : IEC 60794–1-2-E4
Repeated Bending              : IEC 60794–1-2-E6
Torsion Test                     : IEC 60794–1-2-E7
Cable bend                        : IEC 60794–1-2-E11A
Attenuation Coefficient       : ITU-T G.652
Structural Test                  : IEC-60793-1-20
Environmental Performance
Temperature Cycling         : IEC 60794–1-2-F1
Water Penetration             : IEC 60794–1–2-F5B
Filing Compound Flow      : IEC 60794-1-E14

Structure and Technical Specifications


Fiber Count 2-8 10-12 14-24
Diameter of Self support member (Steel wire) 7x0.9mm 7x1.0mm 7x1.2mm
Diameter of Loose tube(mm) 2.4 2.4 2.8
Diameter of Cable(mm) 7.3 7.3 7.7
Gross weight(Kg/Km)
Min. bending radius Static 10xD     Dynamic 20xD
Max. tensile force, N (short term) 2700N 3000N 4000N
