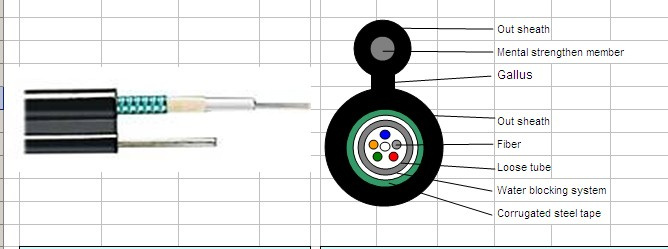

Figure 8 Seif-Support Stranded Fiber Optical Cable
Product Specifications
| Prod Model: |
GYXTC8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Figure 8 Self-Supporting Cable |
| Item: |
GYXY,GYTS,Gyfta,GYXTW,Gytc8s |
| Fiber Cores: |
Duplex, 4cores, 8cores,12cores---288cores |
| Cable Diameter: |
3.0mm,4.0mm,6.0mm,8.0mm |
| Cable Type: |
Outdoor Fiber Cable and Indoor Fiber Cable |
| Application: |
Submarine Cable |
| Cover Material: |
Rubber |
| Certification: |
UL |
| Conductor Material: |
Optical Fiber |
| Type: |
Gyxtc8s |
| Model: |
Fiber Optic Cable |
| Brand: |
Takfly |
Product Description
Product Name: GYXTC8S
Model: Figure 8 self-supporting cable
Application:
. Adopted to Outdoor distribution...Suitable for aerial (self- supporting), decrease cost
. Long distance and local area network communication.
Characteristics:
. Stainless steel or gaivanized steel self-supporting.
. Excellet mechanical and environmental performance.
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature |
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | () |
| 2 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 4 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 6 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 8 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 12 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| Optical Characteristics: |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 |
| Singlemode | G.652(A\B\C) | B1.1:Conventional fiber |
| G.652D | B2: Zero dispersion shifted |
| G.655 | B1.2 :Cut-off wavelength shifted |
| G.657(A1\A2 \B3) | B4: Main technical data for positive dispersion shifted single-mode fiber |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 100 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
