Zhangjiagang City Xinmao Beverage Machinery Co., Ltd. >> Filling Machine

Filling Machine

Name: Filling Machine
Brand: China-Manufacturer-Directory.com
SKU: 684001495
Availability: InStock
Rating: 4.4 (61 reviews)

Supplier:	Zhangjiagang City Xinmao Beverage Machinery Co., Ltd.
Price:	US $ 15000-500000/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ingredient:	Beverage
Material:	Aquatic Product
Manufacturing Process:	Filling
Product Type:	Beverage
Type:	Beverage

Product Description

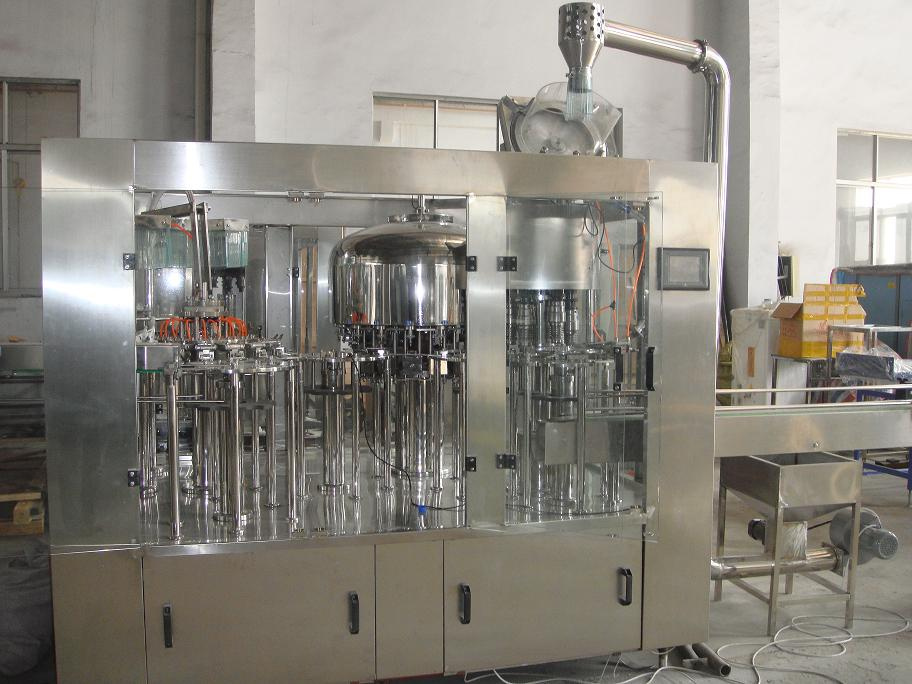

Water filler

The filling machine is mainly used for filling water. The three functions of washing, filling and capping are in one body. The whole process is automatic. The machine can fill mineral water, pure wter and distilled water into PET bottles. It is easy and conveient to operate this The advanced OMRON programmed controller (PLC) is adopted to control the machine running automatically tranducer, touch screen, photoelectic switch and other electric compnent adopt advanced famouse brand.

The capacity scope: 3000bph-15000bph.

Main performance
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn't changed because of adopting hanging clamping bottleneck way.

2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.

3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.

4) Screw capper adopts French advanced technology which can screw cap promptly when clamping bottle.

5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.

Technology data
Model	XMC14125		XMC18186		XMC24248		XMC323210
The heads of washing, filling, capping	14-12-5		18-18-6		24-24-8		32-32-10
Capacity(bph):(500ml/bottle)	3000-4000		5000-6000		8000-12000		12000-15000
Power(kw)	Total motor 5kw		Total motor 5kw		Total motor 6kw		Total motor 8kw
Dimensions(mm)(LxWxH)	2180x1560x2000		2250x1670x2200		2800x1900x2300		4300x3500x2300
Weight(kg)	2500		3500		4500		5500
technology data
Model		XMC404012		XMC505012		XMC606015
The heads of washing, filling, capping		40-40-12		50-50-12		60-60-15
Capacity(bph):(500ml/bottle)		16000-20000		20000-24000		25000-30000
Power (kw)		total motor 12kw		total motor 15KW		total motor 18KW
Dimensions(mm)(LxWxH)		4600x3800x2400		5000x4200x2400		5500x4500x2400
weight(kg)		6500		7500		9500

Zhangjiagang City Xinmao Beverage Machinery Co., Ltd., is specialized in manufacturing various drinking machines. Recently it imports jointly with Shanghai universities the 90' advanced technology of drink mix from Germany, It has professional technical staff for research, design, developing and manufacturing and it applys scientific management, with advanced technology, superior quality products and perfect and efficient after sales service, it offers consulting for onstruction of factory, installment and tesing, technical training, technical reform of equipment and offer accessories of drinker all year around, therefore it gains belief from clients.

Our main products are as follows:
The capacity of 2000-- 40, 000 BPH for hot filling, super-clean filling, aseptic cold filling lines.
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 100 -- 2000 TBH, for 3 gallon, 5 gallon.

All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.

All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.

The company takes its product quality as its life of the enterprise development. It has set up a strictquality inspection system. The quality aim of thecompany is "quality first, consumer supreme".

We welcome your patronage from both from domestic and abroad.
