Product Specifications
| Prod Model: |
CBB65A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type: |
Polypropylene Capacitor |
| Application: |
Air Conditioner |
| Package Type: |
Surface Mount |
| Capacitance: |
2-100UF |
Product Description

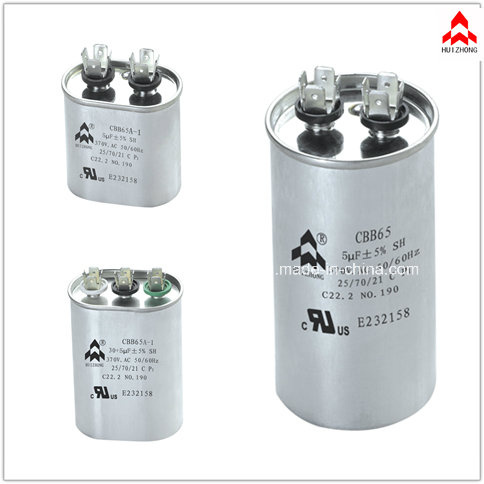

CBB65A RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
Self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
Refrigerator which demand 50/60Hz AC power supply Have
Safe protection constrution.
Specifications
Climatic
Category Rate voltage Testing voltage
T-T Testing voltage
T-C Capacitance
Tolerance Dissipation
Factor
-25/+70/21
-40/+85/21 370/440VAC 1.75Un/5S
(2Un/5S) 2000V. AC/5s ± 5%
(± 10%) ≤ 0.002
(100Hz)
Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD
Dimension(mm): D: Φ 40-Φ 60, H: 60-150
Reference standard: UL810, IEC252, EN60252, GB3667
Certification: UL Construction, UL 10, 000AFC, TUV
Safety grade: P1
CBB65A-1 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
Self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
Refrigerator which demand 50/60Hz AC power supply Have
Safe protection constrution.
Specifications
Climatic
Category Rate voltage Testing voltage
T-T Testing voltage
T-C Capacitance
Tolerance Dissipation
Factor
-25/+70/21
-40/+85/21 370/440VAC 1.75Un/5S
(2Un/5S) 2000V. AC/5s ± 5%
(± 10%) ≤ 0.002
(100Hz)
Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD
Dimension(mm): W: 51.5(71), H: 60-150, L: 31.5(45)
Reference standard: UL810, IEC252, EN60252, GB3667
Certification: UL Construction, UL 10, 000AFC, TUV
Safety grade: P1
We were founded in 1991 and later developed to a company with working force of over 500staffs, among which are 50 technicians. Our working facilities cover an area of 100, 000 square meters with floor area of 25, 000 square meters.
We are specialized in manufacturing all kinds of metallized film AC/DC capacitor, aluminum electrolytic capacitor, power capacitors, motor capacitors, etc. With fixed assets reaching USD5, 000, 000, we own a special production line of annual output over 4, 000, 000 electronic containers.
Our products have gained an envious reputation overseas due to their high quality standards and consistent performance under all conditions. Together with UL, CE, CCEE, VDE and TUV certification that we have received for various series, we have also obtained ISO9001: 2000 authorization.
Our pursuit of first-rate quality, competitive prices and comprehensive after-sales services offers both potential and long-standing clients confidence in our company. If your business needs any of the products we have available, please contact us with your details of your specific requirement.
