Product Specifications
| Prod Model: |
TJD 2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Value: |
10k, 50k 100k |
| B Value: |
3435k, 3950k |
| Tjd Length: |
18mm, 25mm, 50mm, 75mm |
| Lead Wire: |
28# |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
Battery-Pack and So on |
| Quantity: |
as Required |
| Installation: |
Solder |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Film Wrapped |
| Brand: |
Tonze |
Product Description

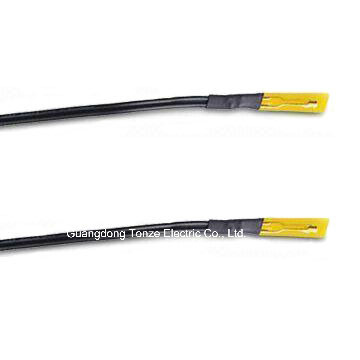

Insulation film wrapped NTC thermistors could be customized to connect with different cable, designed for the purpose of temperature detection, control and compensation of electric and electronic products.
Features:· Different lengths available: 18mm, 25mm, 50mm, 75mm
· Insulation film wrapped, could be customized to connect with different lead wire
· Wrapped with insulation film for superb electric insulation and safe use
· Quick response to thermal sensing and high delicacy
· High resistance precision, and working stability and reliability
· Small, light, firm structure and convenient for automation mounting on PCB
Application:Computer, Printer, Battery-pack, Home electric appliances, Medical equipment and so on.
Specification:· The range of resistance under the rated zero power (R25ºC): 10KΩ,50KΩ,100KΩ
· The allowable tolerance of R25ºC: ±0.5%,±1%,±2%,±3%,±5%
· The range of B value (K): 3435K; 3950K
· The allowable tolerance of B value: ±0.5%,±1%,±2%
· The range of operating temperature: -30ºC ~ +125ºC
· Dissipation factor: ≥0.7mW/ºC (In Still Air)
· Thermal time constant: ≤5S (In Still Air)
· Encapsulated: Film Wrapped + PVC wire

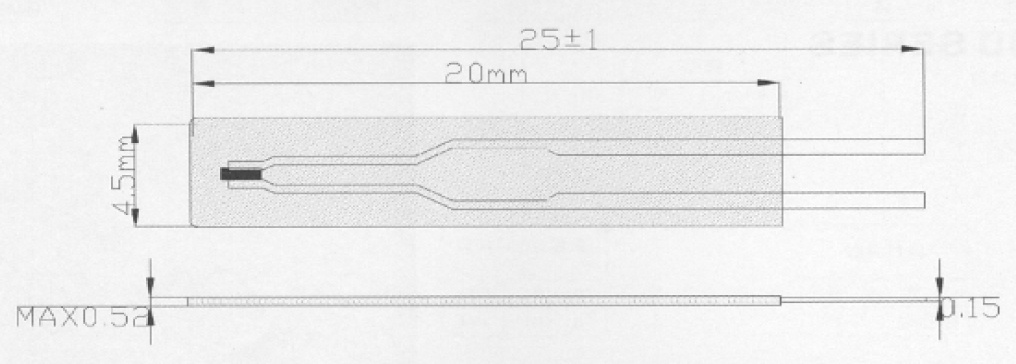

· Dimension: 18mm,25mm,50mm,75mm
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
