Anping County Chuntian Metal Wire Mesh Factory >> Filtering Mesh Disc

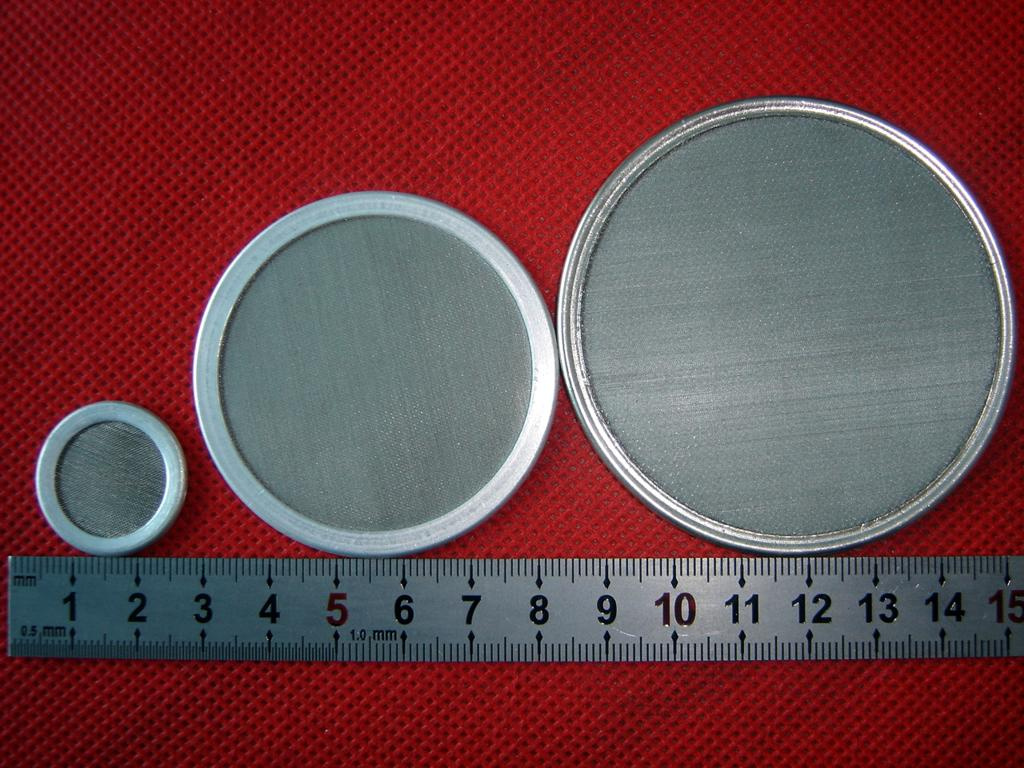

Filtering Mesh Disc

Name: Filtering Mesh Disc
Brand: China-Manufacturer-Directory.com
SKU: 672381542
Availability: InStock
Rating: 4.6 (142 reviews)

Supplier:	Anping County Chuntian Metal Wire Mesh Factory
Price:	US $ 20-25/Piece
Min Order:	300/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CT-FD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mesh Type:	Disc
Type:	Sub High Efficiency
Hole Shape:	Square
Application:	Gas Filtration
Style:	Filter Disk
Material:	Stainless Steel Wire, Brass Wire, Coper Wire,

Product Description

Filter mesh can be classified into round, square, kidney shape, oval and other special shapes according to the outside designs.

Materials of Stainless steel wire mesh: 304 316 304L 316L
Disc Diameter of Stainless steel wire mesh: Usual disc is 5mm to 300mm, above 300mm can be custom make.

Applications of of Stainless steel wire mesh: Filter mesh are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and so on.

the mesh and specification are as below:

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.

Our hot products and feature products: Galvanized wire, oval galvanized wire and automatic binding wire.

Base on our more than 10 years exporter experienced, we also can supply competitive price for other products:

Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.

Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and so on.

We would like to win your long term businss by our high quality products and competitive price.
