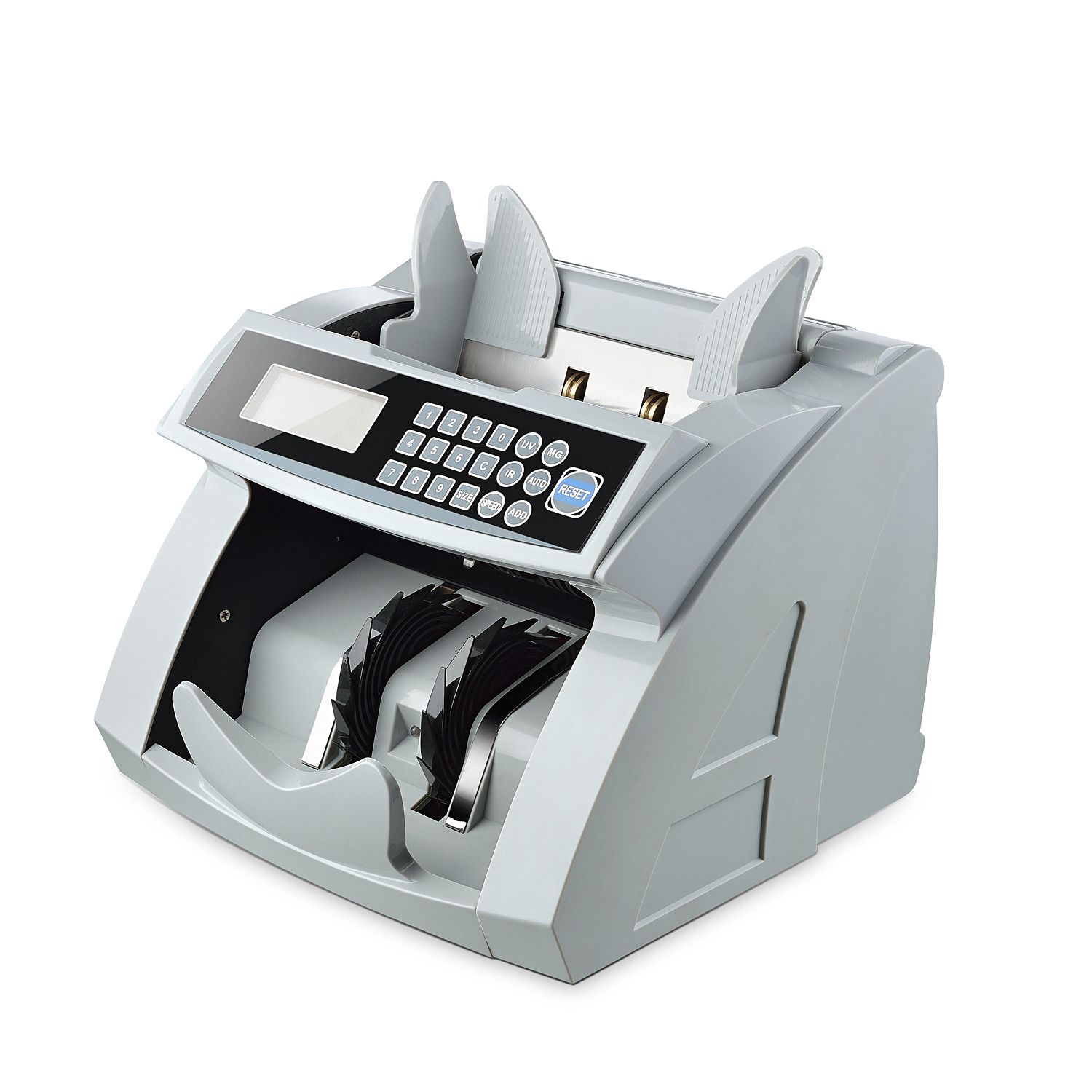

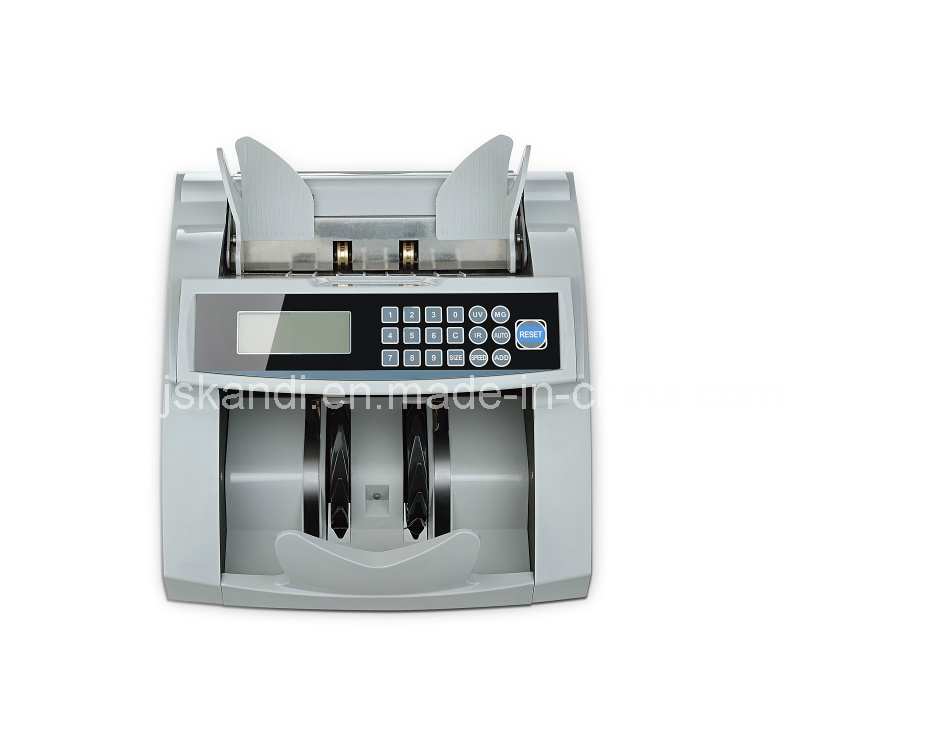

Finance Electronics/ Bill Counter China Factory (UV/MG LCD Display)
Product Specifications
| Prod Model: |
6201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Plastic |
| Usage: |
Bank |
Product Description
OUTLINE
I. LIIustration
II. Functions
III. Technical index
IV. When switched on
V. Buttons and function of the buttons
VI. Counterfeit detection and indication
VII. Trouble indication and solution
VIII. How to adjust the sensitivity
IX. How to adjust the position of hopper
X. Maintenance and alarm clauuses
I ILLUSTRATION
1. MG button
2. UV button
3. ADD button
4. ADD /manual
5. C button for batch clear
6. LEVEL for speed control
7. RESET
8. Main Display
9. Size button
10. IR button
11. Length adjustment of feeding notes
12. Automatic sensor for starting and stopping
13. Previous sensor
14. Right counting tube
15. Left counting tube
16. Accepting notes wheel
17. MG sensor pressing wheel
18. Out-notes pressing wheel
19. Adjustment screw
20. Power switch
21. Power connection
II functions
Automatic starting and stopping, automatic clearing, counterfeit detecting with UV
(ultraviolet), MG (magnetic) or IR (infrared ray) system, size distinguishing, adding,
batching, automatic trouble-diagnosing, etc.
III Technical index
Function buttons: 0.1.2.3.4.5.6.7.8.9. "C" Auto, ADD, UV, MG, SIZE, IR, RESET, speed
Control, 19keys
1. banknote size(width/length): 50-100/100-190mm
2. counting speed: 900pcs/minute,1200pcs/minute, 1500pcs/miunte,
3. counting range: 1-9999pcs
4. batch range: 1-999pcs
5. feed countent: 300pcs
6. power supply: 100-240V 50/60. Hz
7. power :50W
8. Display : 4 disgits LED
9. N.W: 5.5kg
10. overall dimension315*295*295mm
11. environment temperature: 0-40 centigrade
12. opposite humidity :40-90%
13. adding, batching, presetting, mode
14. AUTO/manual starting function
15. automatic cleaning sensor
16. a dual means of detection; 1. UV-ultraviolet 2. MG 3. IR 4. SIZE
17. durable shassis with carrying handle
18. suitable for multi-curreny (US$, Can$, Euro, Ruble, HK$, Sterling, South Korea won,
erc.)
19. precaution leakage of pieces
20. two sheets, halt note & notes stuck together detection
21. quick and easy to operate
22. automatic clearing
23. automatic clearing
24. external customer display
We, Yangzhou Kandi Home Products Co., Ltd is a professional manufacturer of oral care products in Yangzhou in Jiangsu Province, which is the famous manufacturing base and distribution center in China.
We apply ourselves to researching and promoting oral care products for the health of human being, and specializing in export of toothbrush, toothpaste, toothpicks, dental floss and other relative products. We are in a position to accept orders against customers' samples specifying design, specifications and packaging requirements. We also prepared to accept orders for goods with customers' own trade marks or brand names. The area of our company is about 12, 000 square meters and skilled employees are more than 200 and 20 technicians.
With advanced equipments and technology from Germany, Korea, Taiwan, etc. Our products have reached the ISO 9001. We export our products to more than 50 countries and regions, having over 15 years' experience in this particular line of business. Meanwhile, we are also the partner of some famous oral care enterprises in the world.
On the basis of mutual development and benefit, we sincerely wish we can establish business relationships and develop the international market with customers jointly all over the world.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints
