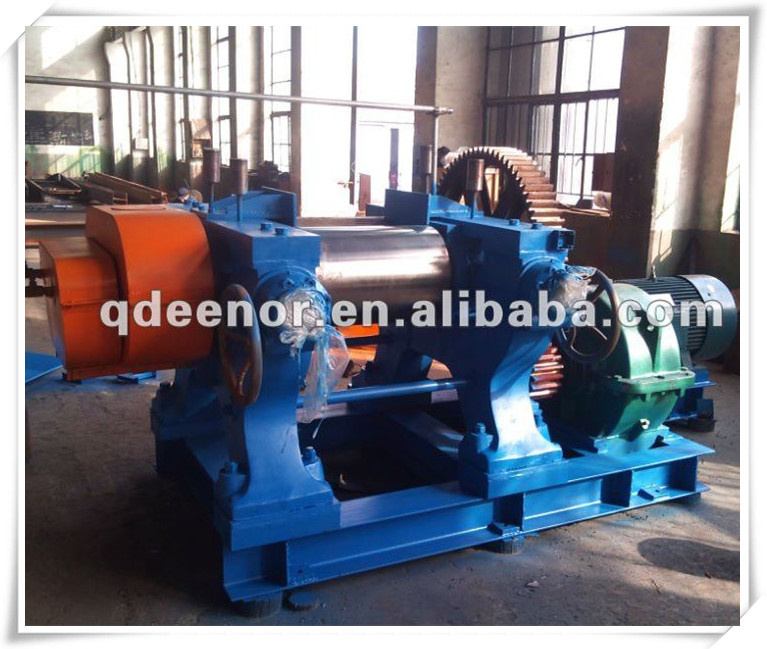

Fine Efficiency Open Mixing Mill Rubber Machinery For Reclaimed Rubber Making
Main features of open mixing mill rubber machinery:
1, Tailored structure, easy to operate.
2, There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.
3, Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
4, Chilled alloy cast iron roll is abrasion resistant with long service life.
5, The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
Working process of reclaimed rubber making line:
Rubber powder-devulcanizer-open mixing mill-rubber kneader machine-rubber refiner machine-reclaimed rubber.
|
Type |
XK-160 |
XK-250 |
XK-300 |
XK-360 |
X(S)K-400 |
X(S)K-450 |
X(S)K-5600 |
XK-600 |
|
Working diameter of rolls(mm) |
Φ160 |
Φ250 |
Φ300 |
Φ360 |
Φ400 |
Φ450 |
Φ560 |
Φ660 |
|
Working length of rolls(mm) |
320 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
2130 |
|
Working linear speed of front roll(m/min) |
8.95 |
14.1 |
15.1 |
16.25 |
18.65 |
24.26 |
27.7 |
28.6 |
|
Compare before and after the roller speed(m/min) |
1/1.35 |
1/1.17 |
1/1.27 |
1/1.25 |
1/1.27 |
1/1.27 |
1/1.12 |
1/1.24 |
|
Max gap(mm) |
4.5 |
10 |
10 |
10 |
10 |
15 |
15 |
15 |
|
Capacity per.batch(kg) |
1~2 |
10~15 |
15-20 |
20-25 |
18-35 |
25-50 |
50-65 |
165 |
|
Driving motor power(kw) |
5.5 |
18.5 |
22 |
30 |
37 |
55 |
90 |
245 |
|
Weight(kg) |
1100 |
3500 |
5205 |
5670 |
7600 |
13000 |
22000 |
49000 |
|
Notes |
Bearing |
Nylon bush grease LUB Copper sleeve oil LUB |
Nylon bush grease LUB |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
