Product Specifications
| Prod Model: |
all various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rubber Floor Tile Vulcanizing Press Mach: |
Rubber Tiles Making Machine |
| Total Pressure: |
0.50-1.00mn |
| Plate Clearance: |
150mm |
| Working Layer Number: |
3-4 |
| Piston Stroke: |
400mm |
| Color: |
Green, Blue, etc. |
| Sales Country: |
More Than 20 Countries |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Cutter |
| Type Of Tire Machinery: |
Cycle Tire Machine |
| Certification: |
SGS/BV, CE, ISO |
Product Description

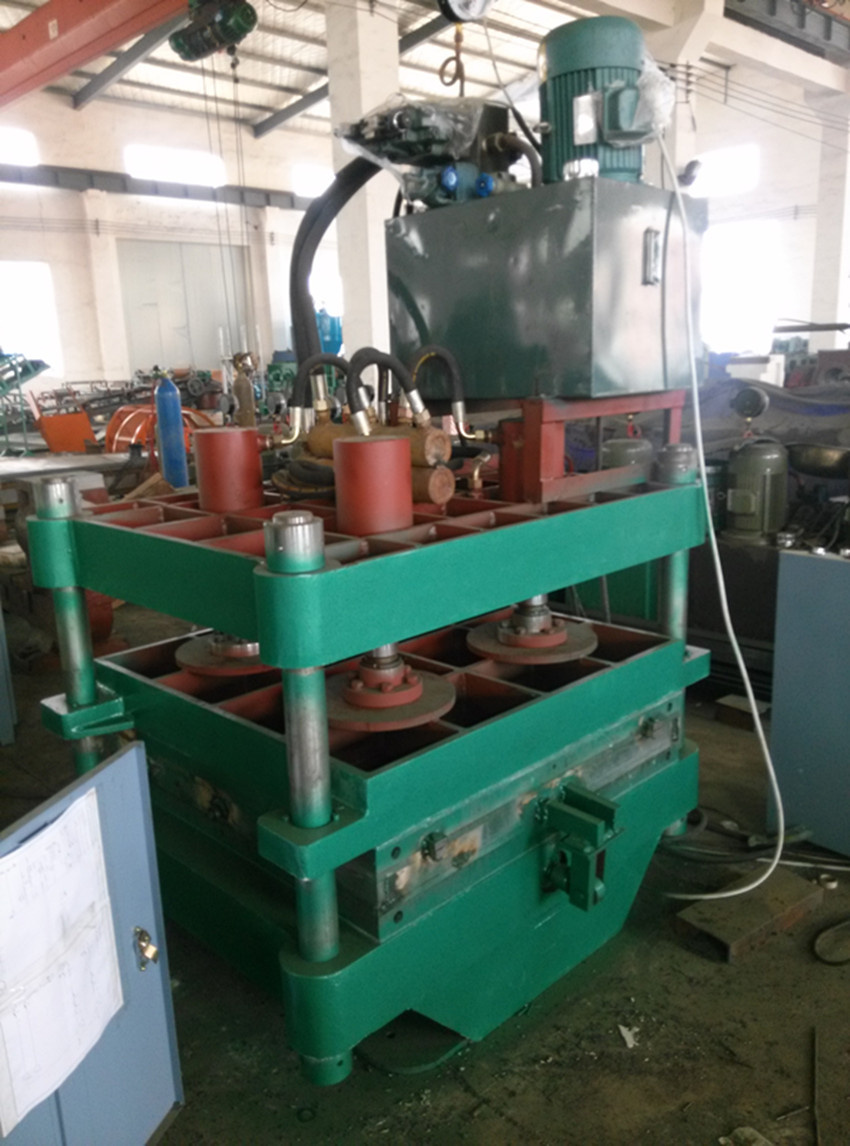

Fine Efficiency Rubber Floor Tile Vulcanizing Press Machine
Features of rubber floor tile vulcanizing press machine:
1. This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
2. Being a column structure and downward pressing type, the heating plate opens by the seif-weight of the heating plate, platfrom and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
3. This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity, The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the very good sealing purpose. Operation very stable and reliable.
4. By moving the operational handle of the control value to the two different positions, the heating plate can open and close. Easy installation and operation.
5. It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.
6. We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.
|
Type |
XLB-D550*550*4 |
XLB-D680*810*3 |
|
Total pressure(MN) |
0.5 |
1 |
|
Plate size(mm) |
550*550*45()Q235) |
680*810*60 |
|
Plate clearance(mm) |
150 |
150 |
|
Working layer number |
4 |
3 |
|
Piston stroke(mm) |
400 |
400 |
|
Motor power(kw) |
3 |
3 |
|
Overall dimension(L*W*H) |
2200*900*2200 |
|
|
Weight(kg) |
3600 |
4500 |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
