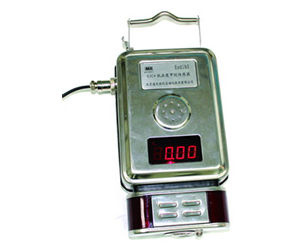

Fire Alarm Hydrogen Sulfide Sensor/H2s Meter
Product Specifications
| Prod Model: |
GLH100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Hydrogen Sulfide Sensor/H2S Meter
Model: GLH100
Application: GLH100 H2S Meter can continuously and automatically convert down hole H2S concentration into a standard electrical signal and then transmit to the matching equipments. It can show the concentration of methane in situ and it has the function of transfinite audible and visual alarm. It can connect with monitoring system, breaker and wind power gas lock instruments. It is widely used in the field of coal mining working face, electrical and mechanical cavern and return air roadway.
Key Feature:- It adopts new type single chip microcomputer and high integration digital circuit. Then the circuit structure is simple. Performance is reliable. Easy to maintenance and debugging.
- It has the function of Infrared remote calibration zero, sensitivity and emergency alarm. It is simple and convenient to calibrating.
- The sensor has extra function of cutting off control. You can set cutting off point arbitrarily. It has a multi-usage function.
- Using new type of switching power, reduce the power consumption of the engine, increase the transmission distance of the instrument.
- Self-diagnostic function, easy to use and maintain.
- Newly high-strength shell structure, enhance the impact resistance of the instrument.
Technical Specification:| Testing Range | 0-100 ppm H2S |
| Environment Temperature | 0ºC~40ºC |
| Relative Humidity | ≤98%RH |
| Atmosphere Pressure | 80kPa~116kPa |
| Wind Speed | 0m/s~8m/s |
| Alarm Point | 0~20×10-6H2S adjustable |
| Response Time | ≤45s |
| Intensity of Sound Level | ≥80dB(A) |
| Ex-mark | ExibI Mb |
| Dimension | 270mm× 155mm × 55mm |
| Weight | 1.3kg |
Beijing Topsky (Lingtian Shiji) Automatic Technology Co., is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Established in 2003, we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff, we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success!
