Huizhou Dayawan Fox Etech Limited >> Firewall Motherboard with Intel Atom D2550, 6*Intel 82583V

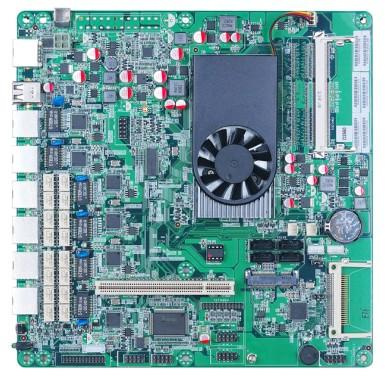

Firewall Motherboard with Intel Atom D2550, 6*Intel 82583V

Name: Firewall Motherboard with Intel Atom D2550, 6*Intel 82583V
Brand: China-Manufacturer-Directory.com
SKU: 684188482
Availability: InStock
Rating: 4.7 (30 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	ITX-D25SL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LAN:	6*Intel 82583V
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	4G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Printed Circuit Board:	Six Layer
Main Board Structure:	Integrated
Audio Effects:	Not HiFi

Product Description

Firewall Motherboard with Intel Atom D2550, 6*Intel 82583V

Name:
Firewall Motherboard(ITX-D25SL)
Spec:
ITX-D25SL VER: 1.2
Memo:
Intel Atom D2550, 6*Intel 82583V
Class:
Mini-ITX Motherboards

Payment Terms: T/T, Western Union, PAYPAL, ESCROW

Fanless 6*Intel 82583V Atom D2550 mini-itx motherboard

Model	ITX-D2550S6L
Processor	Onboard Intel Atom D2550 dual core(32nm,1.86GHz,1MB two level cache)
Chipset	Intel 82801JIR+ICH10 high speed chipset
Graphic	Built-in Intel GMA3600
Memory	1* SO DDR3 slot,support 1333/800/1066,up to max 4GB
Expansion slot	1* PCI slot
Storage	4* Serial ATA2 3Gb/s
	1*Msata SSD
	1* 52P CF slot
LAN	6* Intel 82583V 1000M
LAN	support WOL,PXE,and LAN1-LAN4 support BYPASS function
Rear I/O	1* COM(RJ-45)
	2* USB2.0
	6* RJ-45
	1* POWER
	1* LED1(POWERLED/HDDLED)
Built-in I/O	1* CPUFAN , 2*SYSFAN
	2* PWOUT
	1* ps/2
	1* JVGA(2*5pin)
	1* RS232
	4* USB 2.0
	1* LAN_LED
	1* GPIO(2*5)
	1* FP1(2*5pin Function button and the indicator light on the front panel interface)
Watchdog Timer	Chip internal 256 level,0~255 seconds
BIOS	AMI 16MB DPI Flash ROM
Power supply	ATX 20pin or DC12V single psu
Working Temp	-10°C~60°C
Working Humidity	0-95%(relative humidity,no condensation
Size	220 mm x 220 mm
