Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,EXW,CIF |
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union,Paypal,Money Gram |

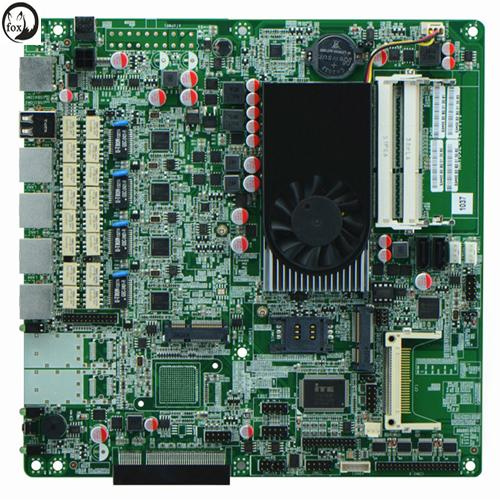

Model NO. | ITX-NM70SL4L VER : 1.2 |
CPU |
Intel® 1037U dual core 22nm processor 1.8GHz TDP 17W |
Chipset |
Intel® NM70 Chipset |
Memory |
2* dual channel SO DDRIII 1333/1066MHz, Max. up to 16GB |
Graphics |
Intel® HD Graphics, support VGA display output |
Expansion Slots |
1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
|
1* Mini-PCIE, support WIFI/3G |
LAN |
4* Intel® 82583L 10/100/1000Mbps Ethernet |
|
Support Wake-on-LAN and PXE function , support 1 group of BYPASS function ( Optional ) . |
Storage |
2* SATAII 3Gbps |
|
1* CF card( cannot be used with SSD at the same time ) |
|
1* MSATAIII 6Gbps |
Rear I/O |
1* COM( CISCO standard interface ) |
|
2* USB 2.0 |
|
4* RJ-45 LAN |
|
1* POWER |
|
1* LED1( POWERLED/HDDLED ) |
Internal I/O |
1* LAN_LED 2*13pin |
|
1* JVGA 2*5pin |
|
1* LPT |
|
5* RS232, COM2 supports RS422/485 |
|
1* TX-RXCOM RS422/485 |
|
1* PS/2 |
|
4* USB 2.0 |
|
1* FP1 (2*5pin Front panel buttons and LED connected) |
|
2* PWROUT (Hard drive power connector) |
Fun interface |
1* CPUFAN 4pin, 1* SYSFAN 3pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
32MB SMT Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
ATX 4 pin power supply |
Operating Temp. |
-10°C~ 60 °C |
Storage Temp. |
-20°C~ 70 °C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
220mm x 220mm |
Prod Model: | ITX-NM70SL4L |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Optional: | Bypass Function |
Main Chipset: | Intel |
Structure: | Mini-ITX |
Memory: | DDR3 |
Integrated Graphics: | Integrated Graphics |
CPU Socket: | Onboard Intel 1037u |
