Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
UIC |
| Part: |
Fishplates |
Product Description
We specialized in manufacturing private parts for railway line and we are one of designated bidders for the railway constructions from the Ministry of Railway.

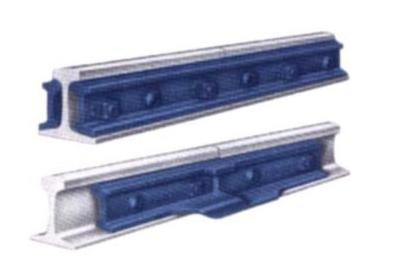

We are a fishplate supplier, and can make fishplates with various shapes and sizes as per customers' requirements.
Our fishplates include GB standard fishplates (43-75kg), UIC standard fishplates, DIN standard fishplates, JIS E Standard fishplates (37A, 50N, CR73, CR100) AREMA 2007 standard fishplates, and BS standard fishplates (BS75R, BS80A, etc. ), and more.
You choose us: Because we are more professional!
Choosing us will be your choice with no regrets!
Fishplate For BS Standard Steel Rail
Rail Type Standard Material
BS50'O' BS 47-1 European GRADE 700
BS75R
BS60A
BS80A
BS90A
BS100A
BS113A
Joint Bar For AREMA 2007 Standard Steel Rail
T-Rail Standard Material Hole Diameter
100lb. ASCE AREMA 2007 AREMA Grade/Steel Grade55# 1.1875''
115RE 1.1875''
132RE 1.3125''
136RE 1.3125''
Joint Bar For Crane Rail
104LB. CR AREMA 2007 AREMA Grade/Steel Grade55# 1.0625''
105LB. CR 1.3125''
135LB. CR 1.1875''
171LB. CR 1.1875''
175LB. CR 1.1875''
Standard Length: 914.4mm The bolt holes are either drilled or punched, with 4 and 6 holes available. (104LB. CR fish plate)
Fishplate For JIS E Standard Steel Rail
Rail Type Fishplate Standard Material
37A JIS E 1102-2001 SS490 S20C
50N
CR73
CR100
Fishplate For DIN Standard Steel Rail Corresponding rail
Type Material Rail Type Weight Kg/m Standard
FI30 Grade 700 S30 30.03 DIN5901
FI33 S33 33.47
FI41 S41 41.38
FI49 S49 49.43
Fishplate Standard: DIN5902: 1995
Fishplate For UIC Standard Steel Rail Corresponding rail
Type Material Rail Type Weight Kg/m Standard
U79 Grade 700 UIC54 54.43 UIC
U85 UIC60 60.34
Fishplate Standard: UIC864-4, UIC864-8
Fishplate For Chinese Standard Steel Rail
Rail Type Standard Material
43KG TB/T 2345-2008 B7
50KG
60KG
Jiangsu Haixun Railway Equipment Group Share Co., Ltd. is the holding company of Jiangsu Haixun Group and established in 1998. Our company has been qualified as authorized producer of orbit accessories by Ministry of Railways in 1999, and has received the class certificate of AAA credibility. As a member unit of Jiangsu Rail Traffic Industry Association, all of our products have awarded the manufacturing license by National Quality Testing, and also special manufacture permit by Ministry of Railways.
Our company is mainly engaged in rail fastener series products, rubber products for rails and locomotives, railroad RPC series products, railway cable series products, a great variety of engines fittings, railroad switch and kinds of casting products for locomotives.
We have four production lines of rail clip, two rubber pad production lines, two steel pad production lines, two RPC production lines, one nylon parts production line, and two screw spike production lines. Besides machining center, we have 10 sets of numerical control equipment. The RPC production line has a yearly capacity of 0.8 million square meters. Now we have acquired ISO9001 quality system certification (by DNV). Our rail clips have been awarded CRCC certification issued by Ministry of Railways, and our oil dampeners which was newly developed have passed the test which held by Railway Department Quality Testing Center.
Having been granted the domestic sell right of products made by Draka, who is the global 5th largest Cable Manufacturer, our company is a universal agency of railway signal cables and all kinds of special cables in China.
