Fixed Concrete Batching Plant Hzs75 Js1500
| Price: |
US $ 45000-80000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
HZS75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Js1000 |
| Email: |
[email protected] |
| Condition: |
New |
| Certification: |
CE |
| Type: |
Concrete Mixing Plant |
| Machining Process: |
Hydraulic |
Product Description

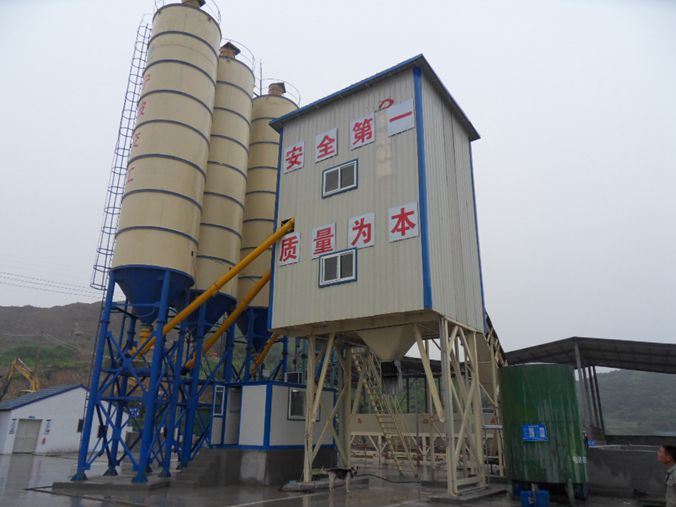

Fixed concrete batching plant HZS75 JS1500
1, Modular structure, fast and easy installation
2, Aggregate consisting of large inclination apron conveyor belt conveyor
3, The control system uses PLC control, realize manual,automatic operation, with the function of fault alarm. Controlled by a computer and easy use.
4, Electronic balance measurement,Schneider electrical components,to ensure that the system has high precision and high reliability,and more.Fixed concrete batching plant HZS75 JS1500--- workshop and office

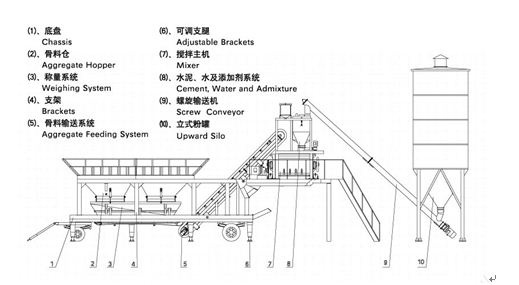

Fixed concrete batching plant HZS75 JS1500 layout drawing
|
Models |
HZS50(60) |
HZS75(90) |
HZS100(120) |
HZS150(180) |
HZS200(240) |
|
Production (m³/hr) |
50(60) |
75(90) |
100(120) |
150(180) |
200(240) |
|
|
Models |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS4000 |
|
|
Mixing Power (kw) |
2×22 |
2×30 |
2×37 |
2×55 |
2×75 |
|
Mixer |
Output (m³) |
1 |
1.5 |
2 |
3 |
4 |
|
|
Aggregate Size (mm) |
≤60 |
≤80 |
≤120 |
≤150 |
≤150 |
|
|
Hopper Capability(m³) |
13 |
15 |
18 |
25 |
30 |
|
Hopper |
Hopper Quantity |
3-4 |
3-4 |
3-4 |
3-4 |
3-4 |
|
Mixing Cycle (s) |
72(60) |
72(60) |
72(60) |
72(60) |
72(60) |
|
Conveyor Capability (t/hr) |
200 |
300 |
400 |
600 |
800 |
|
Scope and Precision of Weighing |
Aggregate (kg) |
2500±2% |
3500±2% |
4500±2% |
7000±2% |
2×4500±2% |
|
Cement (kg) |
600±1% |
900±1% |
1200±1% |
1800±1% |
2400±1% |
|
Fly ash (kg) |
200±1% |
300±1% |
400±1% |
600±1% |
800±1% |
|
Water (kg) |
300±1% |
500±1% |
600±1% |
800±1% |
1000±1% |
|
Additive(kg) |
20±1% |
20±1% |
30±1% |
30±1% |
100±1% |
|
Total Power (kw) (without screw conveyor) |
≈92 |
≈108 |
≈118 |
≈172 |
≈230 |
|
Discharge Height (m) |
≥3.9 |
≥3.9 |
≥3.9 |
≥3.9 |
≥3.9 |
