Product Specifications
| Prod Model: |
A2FE90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Motor |
Product Description

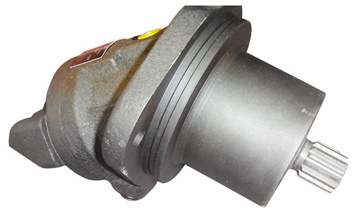

A2FE Plug-in Motor
Fixed Displacement Plug-in Motor ,axial Tapered Piston,Bent Axis Design ,it is a extremely compact hydraulic motor ,fittable to the truck drive gearbox etc. There is no installation tolerances to consider .
The displacement range:63-160ml/rev
Working pressure :35-45MPA
The seals ,shaft end,mounting flange is selected by customer .
| Technical Data: |
|
|
|
|
|
|
|
|
|
|
|
|
| Size | 28 | 32 | 45 | 56 | 63 | 80 | 90 | 107 | 125 | 160 | 180 |
Theoretical Displacement Vg
(³/r) | 28.1 | 32 | 45.6 | 56.1 | 63 | 80.4 | 90 | 106.7 | 125 | 160.4 | 180 |
| Rated Speed n(r/min) | 2240 | 2240 | 2000 | 1800 | 1800 | 1600 | 1600 | 1400 | 1400 | 1250 | 1250 |
| Max.Speed Nmax(r/min) | 4750 | 4750 | 4250 | 3750 | 3750 | 3350 | 3350 | 3000 | 3000 | 2650 | 2650 |
| Torque Constant (Nm/Pa) | 0.445×10-5 | 0.509×10-5 | 0.725×10-5 | 0.89×10-5 | 1×10-5 | 1.27×10-5 | 1.43×10-5 | 1.7×10-5 | 1.99×10-5 | 2.54×10-5 | 2.86×10-5 |
Out Power N (kw)
Drive speed n=1450r/min
ΔP=40MPa | 27 | 31 | 44 | 54 | 61 | 78 | 87 | 103 | 121 | 155 | 174 |
| Weight | 10.5 | 10.5 | 15 | 18 | 19 | 23 | 25 | 34 | 36 | 47 | 48 |
High speed hydraulic motor, easy mounting, it can be stalled in with the reducer completely, save space.
A2FE56/61W-VZL010
A2FE80/61W-NAL100
A2FE90/61W-VAL100
A2FE107/61W-VZL010
A2FE125/61W-VAL100
A2FE160/61W-VAL100...
