Aurora International (Chengdu) Limited >> Fixed Point Gas Detector (AR2232AT)

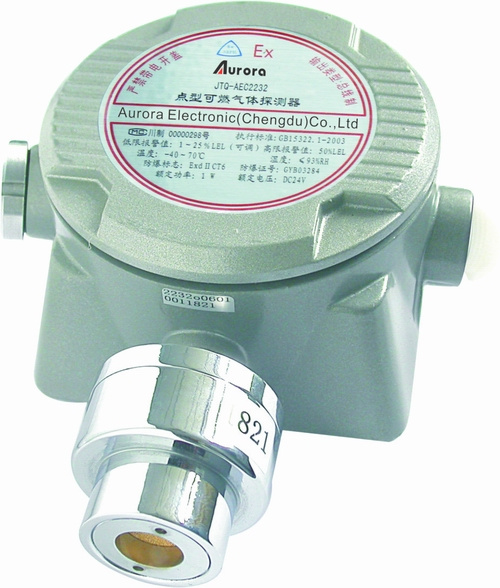

Fixed Point Gas Detector (AR2232AT)

Name: Fixed Point Gas Detector (AR2232AT)
Brand: China-Manufacturer-Directory.com
SKU: 675089555
Availability: InStock
Rating: 5 (83 reviews)

Supplier:	Aurora International (Chengdu) Limited
Price:	US $ 100-200/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AR2232A
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

the cheapest over the ear headphones
Model: AR-T019

1.Frequency Range: 20Hz - 20KHz
2.Impedance: 32 Ohm
3.Speaker:30MM
4.Sensitivity:96dB
5.Plug Type :3.5mm Stereo
6.Length of Cable: About 1.2m
7.Microphone Sensiticity: -42dB±3dB
8.Microphone Specification:6*1.5mm
9.ABS Frame

	Model
Item	ARC2232aK	AR2232aT
Scope of Application	Combustible gas such as alkanes and combustible vapor like volatile organic matters such as alcohol and gasoline
Detection Principle	Catalytic combustion
Sampling Mode	Diffusion
Measurement Range	0~100%LEL
Alarm Error	± 3%LEL
Response Time	≤ 30S
Working Voltage	DC24± 6 V
Power Consumption	1.5W(DC24V)	1W(DC24V)
Operating Environment	Temperature: -40C~+70C; Relative humidity: ≤ 93%RH; Pressure: 86~106kPa
Connecting Thread of Outgoing Line Hole
G3/4 pipe thread (internal)
Signal Output	Alarm: Passive normally-on contact output of electric relay
Trouble: Passive normally-off contact output of electric relay (contact capacity: DC24V/ 1A)	4-20mA standard signal
	Ex-factory alarm set value:
25%LEL (default)	Maximum load resistance: < < 250(≥ 16VDC), 500(≥ 20VDC)
Explosion-proof Grade	Exd IICT6
Protection Grade	Up to IP66IP66
Transmission Distance:		≤ 1000m (RVV3× 1.0mm2 )

Sensor Service Life	Three years (average)
Sensor Storage Temperature	-25? ~+55?
