Fixed Ultrasonic Flow Meter

Name: Fixed Ultrasonic Flow Meter
Brand: china-manufacturer-directory.com
SKU: 696539512
Availability: InStock
Rating: 4.6 (149 reviews)

Supplier:	Xiuyan Precision Instrument Factory
Price:	US $ 260/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	U-100F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Size:	Dn15~Dn6000
Velocity:	0.03 - ± 32 M/S
Power Supply:	AC: 220V DC: 8~36
Data Interface:	RS-232 Serial Port
Type:	Ultrasonic Flow Meter
Measuring Principle:	Electrical Principles
Measuring Media:	Liquid
Sensor:	Clamp-on/External

Product Description

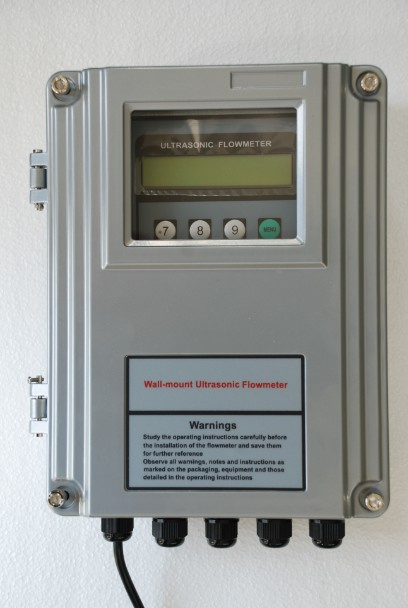

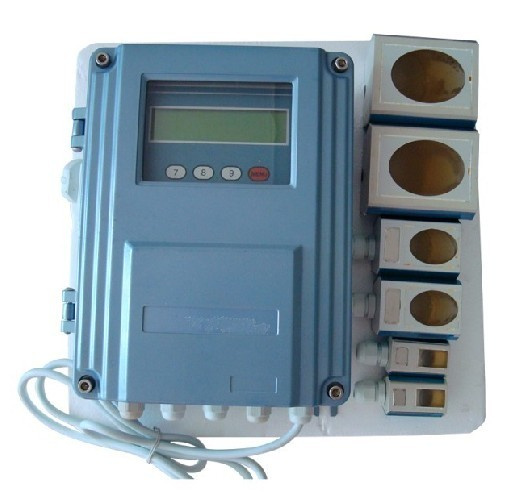

Fixed Ultrasonic flow meter

1. Accuracy: Better than 1%
2. Repeatability: 0.2%
3. Certifiacte: EMC and LVD Compliance certificat

Ultrasonic flowmeter including follow types:
Fixed, Portable, Handheld type,
Flange, Insertion, Clamp-on sensor type,
Battery powered, Heat flow type ect.

The specifications of our Fixed ultrasonic flow meter
Measuring Principle	Ultrasonic wave transmission time difference principle, dual CPU working in parallel, 4-byte floating-point operations
Accuracy	Better than ± 1.0 %
Repeatability	0.2%
Velocity	0.03-± 32 m/s
Measurement Period	0.5S
Display	Backlit LCD can display 2x20 letters instantaneous flow, cumulative flow, velocity, time, calories and other data signal output at the same time etc.
Keypad	4x4-key membrane keypad with tactile feedback
Input	Can input two current signals(such as: temperature, pressure, liquid level, etc. signals ) in order to achieve heat measurements or a dual-purpose machine
Output	Electric current signal 4-20mA or 0-20mA, etc. RS 485 Impedance 0 - 1K, accuracy 0.1%
Isolated OCT output	For frequency output (0-9, 999Hz)
Internal Alarm (Buzzer)	User programmable
External Alarm Driver	Alarm signal can be transmitted to Relay or OCT output terminals to drive an externa alarm.
Data Interface	RS-232 serial port.
Power	AC: 220V DC: 8~36VDC or AC7-30V
Power Consumption	< 2W
Work time	Continuous
Environment Temperature	-30-80 Degrees Celsius
Environment Humidity	85% RH

Product Features:

Product Features	1. Bi-directional measurement, can measure the positive and negative, the net cumulative flow
	2. Automatic memory before 64 days prior 64 months, the first 5 years of light product flow rate
	3. Automatic memory 64 days before the working status of flow met er
	4. Auto memory the former 64 times more time and power flows can be manual or automatic inspection in order to reduce the flow losses
	5. Programmable volume (quantitative) Controller
	6. Configure GPRS / GSM module enables remote monitoring and control
