Product Specifications
| Prod Model: |
Fixture ultrasonic cleaning machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jig,Tong,Mold Ultrasonic Cleaning Machin: |
Fixture Ultrasonic Cleaning Machine |
| Application: |
Fixture Ultrasonic Cleaning Machine |
| Control: |
Fixture Ultrasonic Cleaning Machine |
Product Description
MACHINE'S INTRODUCTION AT KEEPLEADER™
| Application |

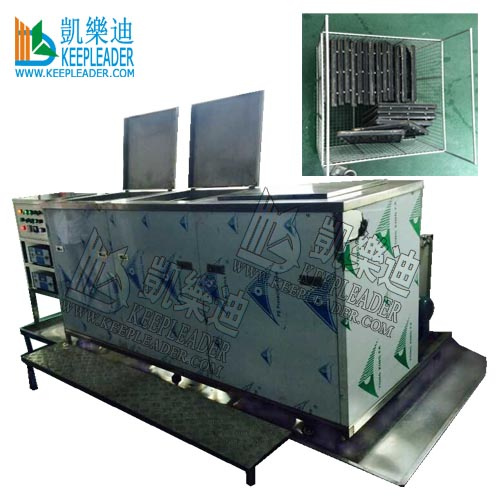

| Fixture ultrasonic cleaning machine uses high-frequency sound waves to remove mold residues and mold fixture, the plastic mold or fixtures are immersed in a heated aqueous solution, an ultrasonic generator converts standard line-frequency current into high-frequency electrical energy, the ultrasonic generator is connected to small transducers vibrate at ultrasonic frequency when the current passes through, this causes the bottom or sides of the tank to vibrate like the diaphragm in a speaker, which scrub and loosen vent residues and grime |
| Character |
KEEPLEADER™ is using full-bridge IGBT high-power integration modules-Germany Siemens to control power source, good protection against high temperature, high pressure and overheating, makes the cleaning effect perfect
Withstand high temperature, it can reach up to 80 degree, Siemens modules is of high pressure resistance, as transistor and filed effect tube can be easily be broken down by correct under high voltage, not only affect the normal function but also disturbing the transducer's frequency, Siemens can avoid this
Siemens module control power is higher that other components, KEEPLEADER™ control circuit adopts the most advanced power adjustment according to different components
Adopting original Germany piezoelectric ceramic chip, high-precision CNC machine equipment, and accurate test methods ensure KEEPLEADER™ high quality, and tank adopts exported 2mm SUS304 stainless steel
Good appearance, low defective rate, easy operation and professional style |
| Parameter |
| Ultrasonic cleaning tank |
| Inner size of cleaning tank | 650*500*450mm |
| Ultrasonic Vibrators | 48pcs |
| Ultrasonic power | 2400w |
| Heating power | 4kw |
| Cycling and spraying tank |
| Inner size | 650*500*450mm |
| Spray pressure | 10mpa |
| Jet range | 100m |
| Heating power | 2kw |
| Hot air drying |
| Inner size | 650*500*450mm |
| Heating power | 12kw |
| Overall parameter |
| Power consumption | 21kw |
| Power source | 380v / 50hz |
| Outsize | 2400*1600*1400mm |
| Net weight | 600kgs |
MFR: KEEPLEADER™ have modified and designed model for our customers' unique and special requirements, please contact KEEPLEADER™ for updated details
KEEPLEADER™ SERVICE
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being cleaned (eg: picture, materials, sizes, requirements, etc) and advise KEEPLEADER™ its contamination in need of removing, the cleaning effect and how to check the cleaning result, what detergent will be used, it is also better to advise KEEPLEADER™ your existing cleaning method and its cleaning effect, KEEPLEADER™ provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
AFTER SALES SERVICE AT KEEPLEADER™
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines' design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines' working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need
BUYING GUIDANCE
01: Choose your correct system
For customers demanding multiple stage ultrasonic cleaning and high efficiency parts drying, KEEPLEADER™ multi-stage consoles provide the same efficient, effective ultrasonic cleaning technology plus the ability to move the items items through additional wash and rise stages, KEEPLEADER™ will design a custom-sized and custom-featured ultrasonic cleaning machine to meet your specific needs
011: heated ultrasonic cleaning
012: heated ultrasonic cleaning + heated rinse
013: heated ultrasonic cleaning + heated ultrasonic rinsing
014: heated ultrasonic cleaning + heated ultrasonic rinsing + hot air drying
015: Inner size of cleaning tank, frame construction, custom color, ultrasonic frequency
02: Choose your tank size
021: the length*Width*depth you wanting
022: advise KEEPLEADER™ the size of your cleaning parts and cleaning efficiency
03: Each system includes:
031: Full insulated stainless steel tanks
032: Exterior power coat finish
033: Digital temperature controls-each tank
034: Digital timer-controlled ultrasonic cleaning
035: Dual stage filtration-cleaning stage
036: Single-stage filtration rinse stage
037: Low-level float sensors-each stage
04: Exceed industry standards
041: All size available, including bench version
042: High quality stainless steel construction
043: For vapor degreasing, cleaning and drying applications
044: Full solution control features
