Product Specifications
| Prod Model: |
FL1-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MCB: |
Mini,Miniature Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
1 |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
High-Speed Circuit Breaker |
Product Description
Specifications
1.Rated Voltage:AC 230V/400V
2.Rated Current:6A-63A
3.Pole:1p 2p 3p 4p +N
5.CE,oem for 5 years
4.Breaking capacity:4.5KA 6KA

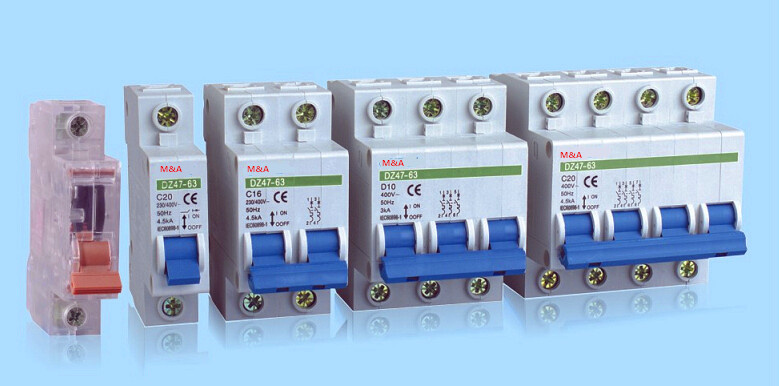

FL1-63 c65n type dz47-63 circuit breaker
1.Application
FL1-63 is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.It's conformity with GB10963,IEC60898 EN898 standards.
2.Main technical data
Rated temperature 40C
Rated voltage 230V/400V AC
Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A
Electric endurance not lower than 6000 times
Mechanical endurance lower than 20000 times
Tropical test:2 kinds
Weight(g)1P2P3P4P
90182274366
StandardRated current (A)PoleVoltage (V)Breaking capacity(A)
EN898 IEC8981 to 4012406000
2,3,44156000
IEC157-11 to 401220/2406000
2,3,4220/24012000
2,3,4380/4156000
Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.
Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

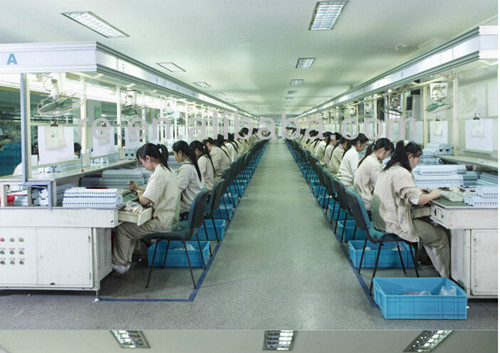

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.
The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.
The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.
Together with you, Souli is willing to create a better future.
