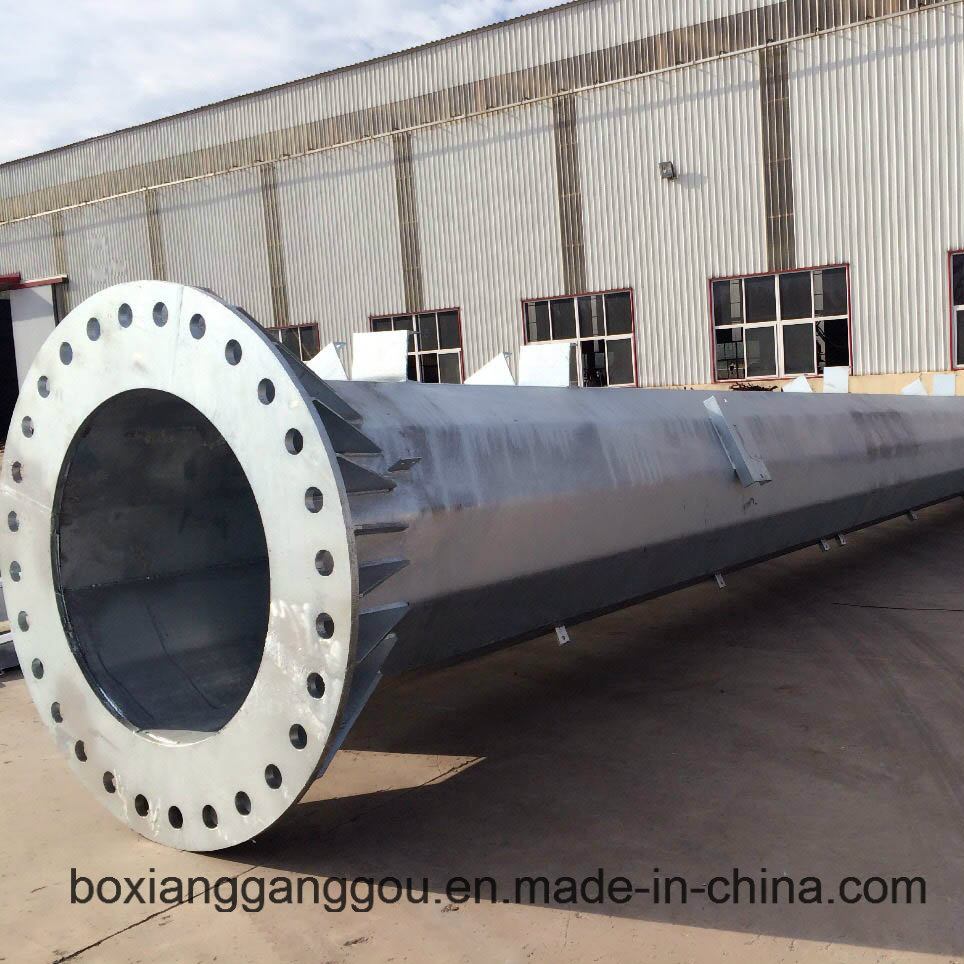

Flange Connection Galvanized Polygon Welded Tube for Power Transmission Tower

Product Specifications

Prod Model:	Polygon Welded Tube for Power Transmission Tower
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Side:	8, 12, 16, 18, 20
Thickness:	6, 8, 10, 12, 14, 16, 18, and Above
Type:	Welded
Usage:	Pipeline Transport
Section Shape:	Rectangular
Technique:	Hot Rolled
Application:	Power Distribution
Surface Treatment:	Galvanized
Material:	Q235, Q345, Q420 or According to Your Request.

Product Description

Flange Connection Galvanized Polygon Welded Tube for Power Transmission Tower

For the polygon pipe fabrication, we are eqquipped with the 24m plasma cutting machine to cut the plate for the first process, and 14m, 3200tons bending machine that bending 14m once time and above 25mm plate. For the flange cutting, we use 4m flange cutting machine.

Pipe Parameters:

1. Side: Generally we can produce 8, 10, 12, 14, 16, 18, 20 with our bending machine.

2. Length of the pipe: Below 14 meters one time, we have our 3200ton Bending Machine, and it can bend 14 meters at one time, so below 14meters, we can do it.

3. Thickness of the pipe: Generally 6mm, 8mm, 10mm, 14mm, 18mm, 20mm, 25mm, and other according to your request.

4. Fabrication Process: Cutting plate(with our plasma flame cutting machine)→bending(with our 3200ton bending machine)→joint→welding(submerged-arc welding)

5. After all fabrication process, pipes are delivered to galvanization

Details of Galvanizing:

1. Degreasing of tower parts with Sodium Hydroxide solution.

2. Pickling to clean up the surface with HCl solution

3. Rinsing twice with fresh water to remove the acid content.

4. Fluxing wth synth flux to prepare surface for galvanizing.

5. Drying on hot plate.

6. Dipping in zinc bath with 99.95% pure zinc at 450° C to 465° C temperature.

7. Quenching in water.

8. Dichromating.

Thickness< 5mm, galvanization thickness≥ 460G/M² (65um)
Thickness> 5mm, galvanization thickness≥ 610G/M² (86um)

All our galvanizing zinc thickness is strictly tested before delivery in view of its importance for anticorrosion.

Welcome to contact us for further information.



Height	From 9 meter to 100 meter
Suit for	Electric Power Transmission and Distribution
Shape	Angle
Material	Normally    Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²                     Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity	10KV to 500KV
Tolerance of the dimension	According to your  requirement.
Surface treatment	Hot dip galvanized Following ASTM A 123, or any other standard by client required. Thickness< 5mm, galvanization thickness≥ 460G/M² (65um) Thickness> 5mm, galvanization thickness≥ 610G/M² (86um)
Joint of Section	bolts and nuts.
Standard	ISO 9001:2008
Length of per section	According to your request.
Welding Standard	AWS (American Welding Society ) D 1.1 CO2 welding or Submerged arc auto methods
Thickness	1 mm  to 36mm
Production Process	Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Capacity	Product	Annual Production Capacity(TON)	Monthly Production Capacity(TON)
1	Tubular Tower	24000	2000
2	AngleTower	24000	2000
3	Steel Structure	12000	1000
4	Total Production Capacity	60000	5000
