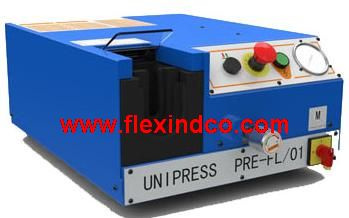

Flaring & Cutting Ring Pre-Assembly Machine
This device allows pre-assembling DIN2353 rings through manual adjustment of the pressure, which is to be set before each operation. A 37° Flaring of 6 to 42 mm diameter and 4 mm maximum thickness rigid stainless steel (AISI 316 TI) and carbon steel (ST 37.4) tubes may be obtained due to the addition of a special block made of steel. Also available in the 12V version, this is the perfect device for outdoor assistance.
Technical Features
|
24° PRE-ASSEMBLING |
6 x1-42x4 mm |
|
37° FLARING |
6X1- 42x4 mm |
|
MATERIALS |
AISI 316 TI - ST 37.4 |
|
WEIGHT |
58 KG |
|
DIMENSIONS L x W x H |
430x600x270 mm |
|
STANDARD VOLTAGE |
380V 50Hz 3PH |
|
MOTOR POWER |
0.75 Kw |
|
OIL |
incl. |
|
TOOL HOLDER |
OPTIONAL |
|
37° FLARING BLOCK |
OPTIONAL |
|
12V VOLTAGE |
OPTIONAL |
|
SPECIAL VOLTAGE |
OPTIONAL |
We, Flex company are a professional enterprise in the hydraulic hose & tubing processing equipment. Our complete production process includes development, production, reform, technological export, installation, repair and maintenance. What's more, the excellent after-sale service is the guarantee of our good quality. Creating brands by quality, promoting development by service is the purpose of our enterprise. We take the service as the basis for survival. The success of a brand not only depends on the best quality, but also the best service!
Our products include multi-functional tube processing center, tube bending machine, flaring & cutting ring pre-assembling machine, internal & external tube deburring machine, pipe flaring machine, hose crimping machine and so on.
