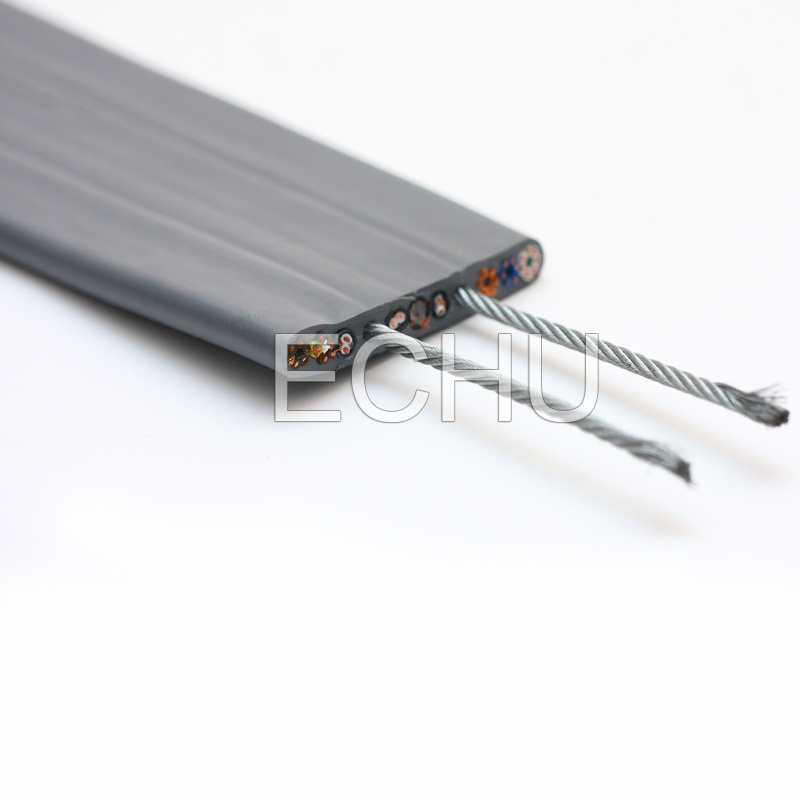

Flat Elevator Paraller Travel Cable 36cores for Lift Elevator Escalator System

Name: Flat Elevator Paraller Travel Cable 36cores for Lift Elevator Escalator System
Brand: china-manufacturer-directory.com
SKU: 697204052
Availability: InStock
Rating: 4.7 (137 reviews)

Supplier:	Shanghai Echu Wire and Cable Co., Ltd.
Price:	US $ 3.97-4.19/Meter
Min Order:	500/Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TVVB TVVBG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standards:	IEC60332-1, En50214, GB5023.6, IEC60227-6
Insulation:	Special PVC
Rated Voltage:	450/750V
Normal Temp.:	-15c-+70c
Desigh Temp.:	-35c-+105c
Type:	Elevator Traveling Cables
Control Type:	Elevator Control Cable
Use Of Occasions:	Lifts,Elevators, Escalators

Product Description

Approvals: CCC & CE approval

Conductor:Fine strands of bare copper wire, acc. to VDE 0295 class 5
Insulation:special PVC
Sheath: special flexible PVC, wear -resistant ,cold-resistant, flame resistance.

Range of application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.

Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
Standards:GB5023.6,IEC60227-6,EN 50214

Structure:
Conductor: fine strands of bare copper wire,
Acc.to VDE0295 CLASS5
Insulation:special PVC
Colour:yellow,white,orangeg with black number with white digital coding
Bearing:steel rope
Outer sheath:flexible PVC,cold resistance ,flame resistance
Colour:grey(RAL7001)

Technical data:
Rated voltage:300/500V
Test voltage:2500V
Minimum bending radius:0.3mBurning vertically test:GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions.the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C

H05VVH6-F (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
H05VVH6-F(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

TYPE	CORES	Section	Width mm	Thicknedd mm	Weight (kg/km)	Shape
H05VVH6-F	24	0.5	56.1±2.0	4.1±0.5	434	line Type
H05VVH6-F	24	0.5	31.3±2.0	8.4±0.5	428	Flower Type
H05VVH6-F	30	0.5	39.9±2.0	7.8±0.5	530	Flower Type
H05VVH6-F	36	0.5	43.5±2.0	8.4±0.5	628	Flower Type
H05VVH6-F	40	0.5	50.7±2.0	7.8±0.5	677	Flower Type
H05VVH6-F	42	0.5	49.5±2.5	8.4±0.5	717	Flower Type
H05VVH6-F	48	0.5	55.5±2.5	8.4±0.5	806	Flower Type
H05VVH6-F	54	0.5	61.5±2.5	8.4±0.5	895	Flower Type
H05VVH6-F	60	0.5	67.5±2.5	8.4±0.5	984	Flower Type
H05VVH6-F	66	0.5	73.5±2.5	8.4±0.5	1074	Flower Type
H05VVH6-F(G)	24	0.5	62.2±2.0	4.1±0.5	484	LINE TYPE(with steels)
H05VVH6-F(G)	24	0.5	40.3±2.0	8.4±0.5	567	FLOWER TYPE(with steels)
H05VVH6-F(G)	30	0.5	48.1±2.0	7.8±0.5	652	FLOWER TYPE(with steels)
H05VVH6-F(G)	36	0.5	51.7±2.0	8.4±0.5	757	FLOWER TYPE(with steels)
H05VVH6-F(G)	40	0.5	58.9±2.5	7.8±0.5	800	FLOWER TYPE(with steels)
H05VVH6-F(G)	42	0.5	58.7±2.0	8.4±0.5	878	FLOWER TYPE(with steels)
H05VVH6-F(G)	48	0.5	64.7±2.5	8.4±0.5	967	FLOWER TYPE(with steels)
H05VVH6-F(G)	54	0.5	70.7±2.5	8.4±0.5	1056	FLOWER TYPE(with steels)
H05VVH6-F(G)	60	0.5	76.7±2.5	8.4±0.5	1146	FLOWER TYPE(with steels)
H05VVH6-F(G)	66	0.5	82.7±2.5	8.4±0.5	1235	FLOWER TYPE(with steels)
H05VVH6-F	24	0.75	64.7±2.5	4.2±0.5	537	LINE TYPE
H05VVH6-F	24	0.75	31.3±2.0	8.4±0.5	470	FLOWER TYPE
H05VVH6-F	30	0.75	39.9±2.0	7.8±0.5	582	FLOWER TYPE
H05VVH6-F	36	0.75	43.5±2.0	8.4±0.5	691	FLOWER TYPE
H05VVH6-F	40	0.75	50.7±2.0	7.8±0.5	748	FLOWER TYPE
H05VVH6-F	42	0.75	49.5±2.0	8.4±0.5	791	FLOWER TYPE
H05VVH6-F	48	0.75	55.5±2.0	8.4±0.5	891	FLOWER TYPE
H05VVH6-F	54	0.75	61.5±2.5	8.4±0.5	990	FLOWER TYPE
H05VVH6-F	60	0.75	67.5±2.5	8.4±0.5	1090	FLOWER TYPE
H05VVH6-F	66	0.75	73.5±2.5	8.4±0.5	1190	FLOWER TYPE
H05VVH6-F(G)	2	0.75	13.5±1.0	4.2±0.5	111	LINE TYPE(with steels)
H05VVH6-F(G)	3	0.75	15.9±1.0	4.2±0.5	130	LINE TYPE(with steels)
H05VVH6-F(G)	4	0.75	19.2±1.0	4.2±0.5	156	LINE TYPE(with steels)
H05VVH6-F(G)	5	0.75	22.6±1.5	4.2±0.5	182	LINE TYPE(with steels)
H05VVH6-F(G)	6	0.75	23.9±1.5	4.2±0.5	195	LINE TYPE(with steels)
H05VVH6-F(G)	7	0.75	27.3±1.5	4.2±0.5	221	LINE TYPE(with steels)
H05VVH6-F(G)	8	0.75	29.6±1.5	4.2±0.5	240	LINE TYPE(with steels)
H05VVH6-F(G)	9	0.75	32.0±2.0	4.2±0.5	260	LINE TYPE(with steels)
H05VVH6-F(G)	10	0.75	34.3±2.0	4.2±0.5	279	LINE TYPE(with steels)
H05VVH6-F(G)	11	0.75	36.7±2.0	4.2±0.5	299	LINE TYPE(with steels)
H05VVH6-F(G)	12	0.75	39.0±2.0	4.2±0.5	297	LINE TYPE(with steels)
H05VVH6-F(G)	13	0.75	42.0±2.0	4.2±0.5	322	LINE TYPE(with steels)
H05VVH6-F(G)	14	0.75	45.4±2.0	4.2±0.5	346	LINE TYPE(with steels)
H05VVH6-F(G)	15	0.75	47.7±2.0	4.2±0.5	364	LINE TYPE(with steels)
H05VVH6-F(G)	16	0.75	50.1±2.0	4.2±0.5	383	LINE TYPE(with steels)
H05VVH6-F(G)	17	0.75	52.4±2.0	4.2±0.5	401	LINE TYPE(with steels)
H05VVH6-F(G)	18	0.75	55.8±2.0	4.2±0.5	425	LINE TYPE(with steels)
H05VVH6-F(G)	19	0.75	58.1±2.0	4.2±0.5	443	LINE TYPE(with steels)
H05VVH6-F(G)	20	0.75	60.5±2.5	4.2±0.5	461	LINE TYPE(with steels)
H05VVH6-F(G)	21	0.75	62.8±2.5	4.2±0.5	479	LINE TYPE(with steels)
H05VVH6-F(G)	22	0.75	65.2±2.5	4.2±0.5	498	LINE TYPE(with steels)
H05VVH6-F(G)	23	0.75	67.5±2.5	4.2±0.5	516	LINE TYPE(with steels)
H05VVH6-F(G)	24	0.75	70.9±2.5	4.2±0.5	540	LINE TYPE(with steels)
H05VVH6-F(G)	24	0.75	40.3±2.0	8.4±0.5	609	FLOWER TYPE(with steels)
H05VVH6-F(G)	30	0.75	48.1±2.0	7.8±0.5	705	FLOWER TYPE(with steels)
H05VVH6-F(G)	36	0.75	51.7±2.0	8.4±0.5	821	FLOWER TYPE(with steels)
H05VVH6-F(G)	40	0.75	58.9±2.0	7.8±0.5	870	FLOWER TYPE(with steels)
H05VVH6-F(G)	42	0.75	58.7±2.0	8.4±0.5	952	FLOWER TYPE(with steels)
H05VVH6-F(G)	48	0.75	64.7±2.5	8.4±0.5	1052	FLOWER TYPE(with steels)
H05VVH6-F(G)	54	0.75	70.7±2.5	8.4±0.5	1151	FLOWER TYPE(with steels)
H05VVH6-F(G)	60	0.75	76.7±2.5	8.4±0.5	1251	FLOWER TYPE(with steels)
