Product Specifications

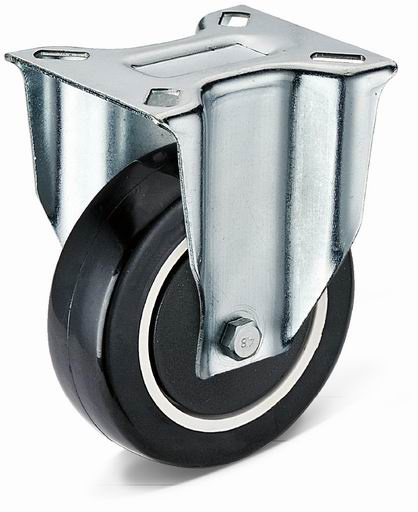

| Prod Model: |
14R01B8063.32UPB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Tread: |
PU |
| Wheel Core: |
PP |
| Wheel Size: |
62.5X32/75X32/100X32/126X32mm |
| Load Capacity: |
60/70/115/135kg |
| Type: |
Fix Wheel |
| Wheel Material: |
PU |
| Surface Treatment: |
Zinc Plated |
| Brake: |
Without Brake |
| Bearing Type: |
Ball Bearing |
Product Description
4 Size available: 2.5'' 3'', 4'', 5''
[Model Included]: 14R01B8063.32UPB/14R01B8075.32UPB/14R01B8100.32UPB/14R01B8125.32UPB
[General Feature]:
*Wheel Material: PU
*Wheel core: PP
* Brake: Without brake
*Bearing: Ball bearing
*finish: Zinc plated
*packing: Carton package
*Certification: Through the DNV, ISO9001: 2000 international system authentication
*Top quantity Competive price
Payment and delivery:
1. Payment: By T/T, 30% advance payment, the balance paid before shipment
2. Delivery time: 1 month after receiving the down payment.
Special Size can be made upon request.
|
Model No. |
Wheel diameter&Wheel width (mm) |
Wheel Holediameter&Hub width (mm) |
Overall height (mm) |
Top plate size (mm) |
Bolt hole spacing (mm) |
Hole diameter (mm) |
Fork's width & thickness (mm) |
Load capacity (kg) |
|
14R01B8063.32UPB |
62.5×32 |
40×8.5 |
99.5 |
100×85×2 |
72×52 |
18×9 |
40×2 |
60 |
|
14R01B8075.32UPB |
75×32 |
40×8.5 |
116.5 |
100×85×2 |
72×52 |
18×9 |
40×2 |
70 |
|
14R01B8100.32UPB |
100×32 |
40×8.5 |
138 |
100×85×2 |
72×52 |
18×9 |
40×2 |
115 |
|
14R01B8125.32UPB |
126×32 |
40×8.5 |
166.5 |
100×85×2 |
72×52 |
18×9 |
40×2 |
135 |
