Flat Roof Prefabricated Building in Workshop

Flat Roof Prefabricated Building in Workshop
Supplier: Foshan TianPuAn Building Materials Technology Co., Ltd.
Price: US $ 50-80/Square Meter
Min Order: 100/Square Meter
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: TPA-FH035
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life Span: 15-20 Years
Material: Sandwich Panel
Usage: Workshop
Certification: ISO
Customized: Customized

Product Description

Product Description
Product type:Flat roof prefabricated house

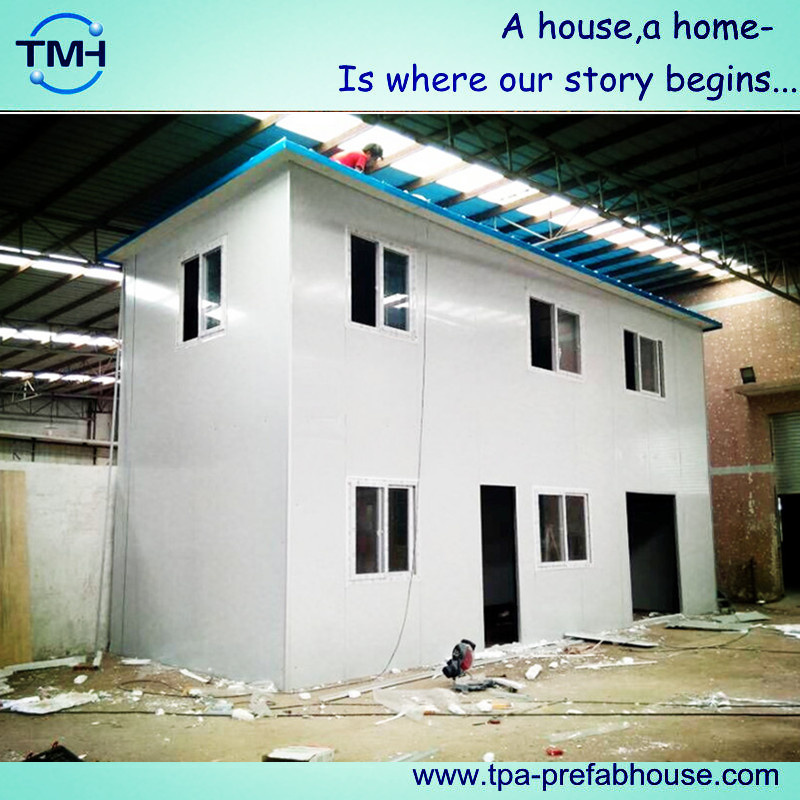

Flat roof prefabricated building

- Flexible layout

- Sound proof

- Water proof

- Modular type & Fast installation



Prefabricated house benefit

*Steel Structure With Complete Material Water-proof Finishing

*Fast installment and good ability to assemble and disassemble for several times

*Wind resistance: Grade 10

*Earthquake resistance: Grade 7

*Low cost suitable for labor camp and construction worker accommodation project


Mainly Materical info

No

component

Specification

1

Ground beam

50 U-type Steel (Thk:1.8mm)

2

Stand-Colum 01

H200X100X5X7/H250X125X6X9    (for two store and workshop)

Stand-Colum 02

100x100x2.5

3

Ring beam

100x100x2.5   square steel pipe    (Thk:2.5mm)

4

Roof steel beam 01

H200X100X5X7/H250X125X6X9  (Thk:5mm for two store and workshop)

5

Roof steel beam 02

8#C steel 80*35*1.8 + L40 Angle    brace (Thk:1.8mm)

6

Roof Purlin

100x40x20x2.0/120x40x20x2.0    (Thk:2.0mm)

7

Wall Purlin

120x40x20x2.0  (Thk:2.0mm)

8

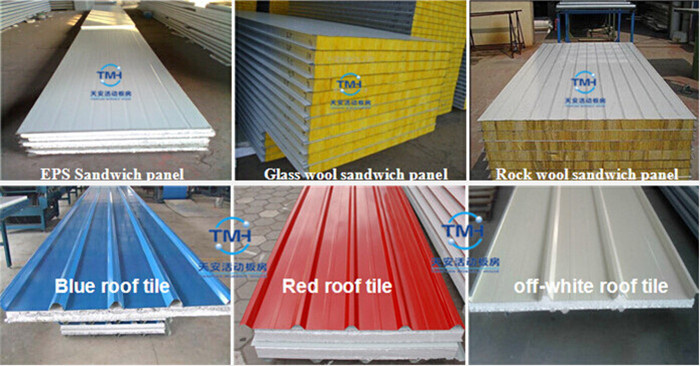

External wall panel

50mm color-steel Foam sandwich    panel  (steel sheet Thk:0.326mm)

9

Internal wall panel

50mm color-steel Foam sandwich    panel  (steel sheet Thk:0.326mm)

10

Roof tile

50mm color-steel Foam sandwich    panel  (steel sheet Thk:0.326mm)

11

Door

Aluminum frame with sandwich    panel

12

Window

PVC silding window

13

Lock for door

Stainless steel ball shape lock

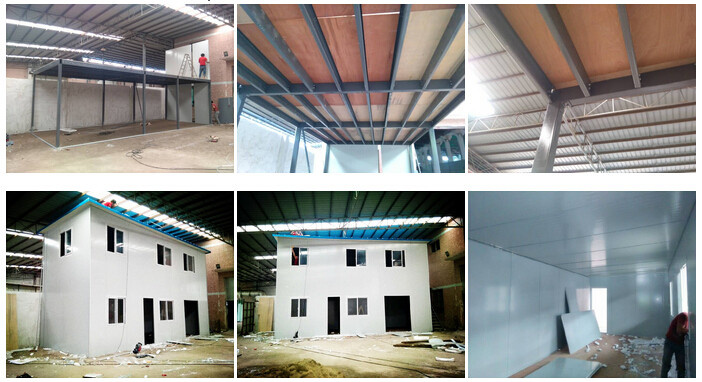

Prefabricated building installation steps

Application

*Prefabricated Offices/Accommodation, Kitchens, Diners

*Site Offices and Administrative Buildings

*Mine Camp Infrastructure Processing Areas

*Insulated Trailers

*Store Rooms

*Temporary Housing
