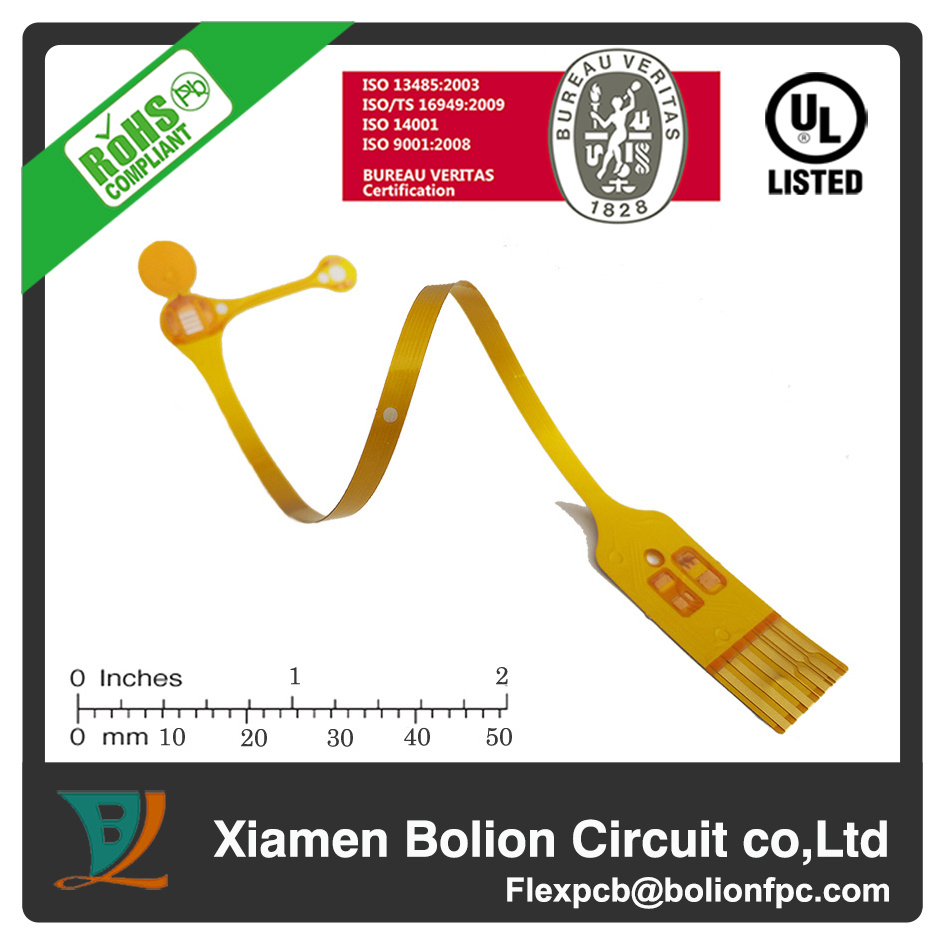

Flex Rigid PCB Board Flexible PCB

Name: Flex Rigid PCB Board Flexible PCB
Brand: China-Manufacturer-Directory.com
SKU: 752975595
Availability: InStock
Rating: 4.8 (106 reviews)

Supplier:	Xiamen Bolion Circuit Co., Ltd.
Price:	US $ 0.2-0.3/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	B10187
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min.Space:	0.175mm
Min. Line:	0.127mm
Min. Pth:	N/a
Stiffener:	N/a
Surface Treatment:	Hard Gold
ISO9001:2008:	Quality Management Qualification
ISO/Ts 16949:	Automotive
ISO 13485:	Medical Devices
ISO 14001:	Environmental Qualification
Type:	Flexible Circuit Board
Material:	Paper Phenolic Copper Foil Substrate
Flame Retardant Properties:	V0

Product Description

1. Over 10 years'manufacturing experience focus on flexible circuit industry area.
2. Assembly provided.
3. 100% quality tested before shipment.
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted.
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then

FPC Apply:

medical apparatus
automobiles
aerospace
industrial equipment
detecting instruments
smart-home controller
consumer electronics, etc

Main Technique Index
Description	Parameters
Description	Polyimide	Polyester
Base film Thickness (um)	12.5,25,35,50	12.5,25,35,50
Copper Thickness (um)	12,17.5,35,50,70,105
Min. Line Width/Line Space (mm)	0.075/0.075
Min. Hole Size (mm)	0.15
Tolerance (mm)	Outline:+/-0.05; Coverlay: +/-0.2
Peel Strength (kgf/cm)	Above 1.0	Above 0.8
Solder Resistance	260C 10 seconds	204C 5 seconds

Surface Treatment
Content	Normal coating thickness	Normal PNL size
Plating nickel gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating hard gold (In house)	Ni:2-9um;Au:0.1-1.0um	300mm×400 MM
Plating soft gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating pure tin (In house)	2.0-8.0um	300mm×400 MM
Immersion Tin (In house)	0.3-0.6um	300mm×400 MM
OSP (In house)	N/A	300mm×400 MM
ENIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENIG (Soft Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENEPIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
HASL (Outsource)	Cover the pads with min thickness 1~2 um	300mm×400 MM
Immersion silver (Outsource)	Per standand creteria	300mm×400 MM

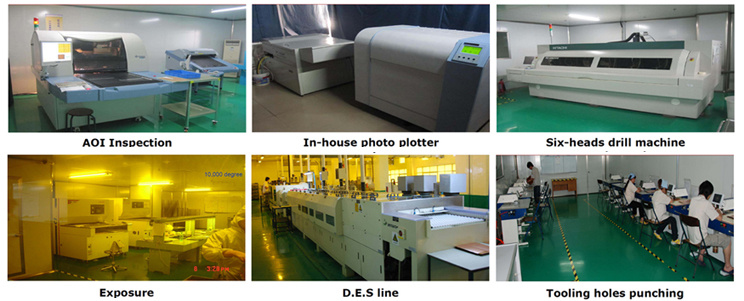

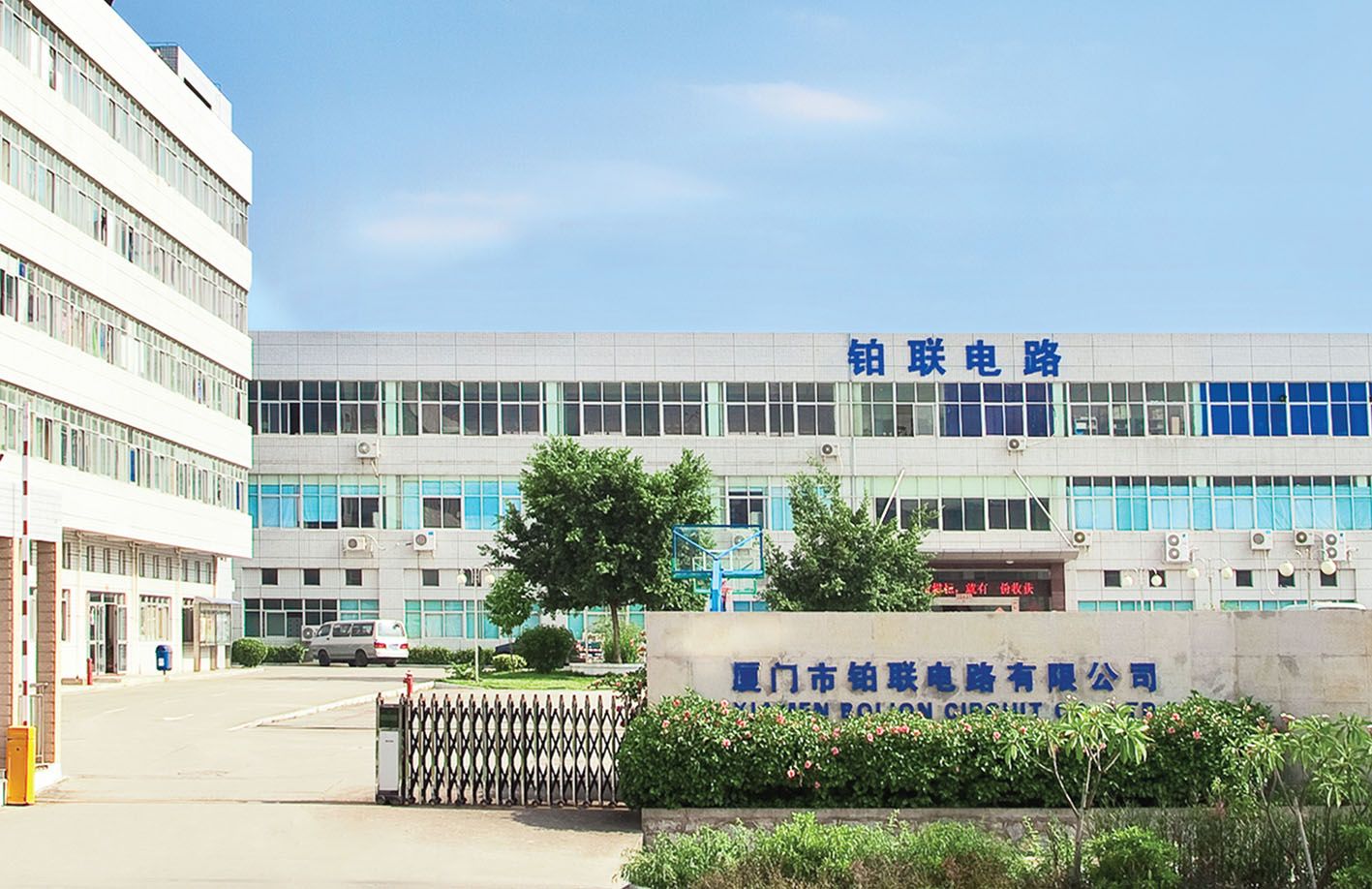

XiaMen Bolion Circuit Co., Ltd. Was established in January 23, 2003. The enterprise includes 24, 000 square meters of clean production workshop containing advanced equipment and sophisticated FPC testing instruments, allowing mass single panel / double panel / hollow board / plywood / layered board / rigid-flex board capabilities. March production of FPC and rigid-flex boards and other high-quality products is a minimum of 16, 000 square meters. Our products are widely used in aerospace, automotive, medical, communication, camera, optical instrument, computer peripheral, and LCD applications, among others.

Our company is a standing member on the China Printed Circuit Board Industry Association (CPCA) and has won various awards including being included on the China Printed Circuit industry list of top 100 Businesses and winning the China India Control Circuit Industry Award as a "National Branded Enterprise". We have passed ISO9001 Quality Management Ceritication, TS16949 Automotive Supply Chain Management Certification, and ISO14001 Environmental Management Certification.

Our FPC product safety test center is approved by the U. S. UL certification, and SGS certified to comply with RoHS & WEEE environmental protection requirements. Ourcompany has accumulated a wealth of experience in the FPC industry, and, through our exceptional product quality control and customer service, we have earned anoutstanding reputation.

At Bolion Circuit Co., Ltd., we advocate a core philosophy of "integrity, innovation, harmony and win-win business relationships" within every aspect of our business. With superb technology, advanced equipment, strict quality control and scientific management, reasonable pricing, and honest business practices, we are dedicated to providing customers with quality products and efficient services.

Through our commitment today to integrity, innovation, harmony, and win-win business relationships, and by providing the most value and quality, we can be proud to present our products to the world and assure our ascent to the top of the FPC industry in the future.
