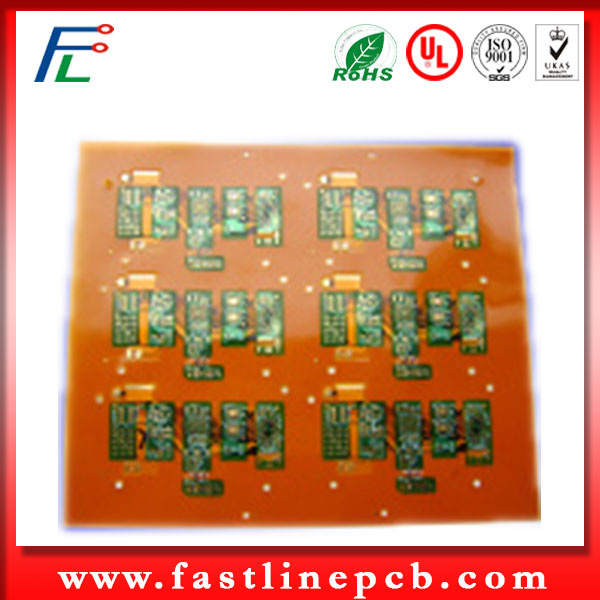

Flexible Circuit Board with Polyimide Material
Product Specifications
| Prod Model: |
Fl9915 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Polyimide |
| Board Layer: |
2 |
| Board Thickness: |
0.1 mm |
| Copper Thickness: |
1 Oz |
| Solser Mask: |
Yellow |
| Silkscreen: |
White |
| Surface Finishing: |
Enig |
| Lead Time: |
4-5 Working Days |
| Shipping Type: |
DHL.TNT, EMS, FedEx, UPS etc |
| PCB Design: |
Custom Design Product |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Conductive Silver Paste |
| Base Material: |
Polyimide |
Product Description
Flexible Circuit Board with Competitive Price
Product description: | Product Name | Flexible PCB Board |
| Type | 1-8 Layer |
| Quality Grade | Standard IPC 2 |
| Material | DuPont PI, Domestic Shengyi PI |
Board Size | Min 6mm*6mm, Max 400mm*500mm |
| Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Min Tracing / Spacing | 3mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finishing | HASL, HASL Leadfree, Immersion Tin, Gold Finger, OSP |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | ±0.05mm |
| Other Tech | Peelable Solder Mask, Stiffener |
![]()
![]()
Our Main Products![]()
production machine
![]()
Our service:Now we have been a factory which can provide one-stop service, from the PCB production,
the components purchasing to the components assemble.
![]()
Packaging and shipping :
Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size : 33cm*28.5cm*18.5cm
Medium Size: 44.5cm*30cm*15cm
Big Size: 51.5cm*32.5cm*17.5cm
Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark,
the customer needs to specify the destination and other information.![]()
Any questions,Please let us know.
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
