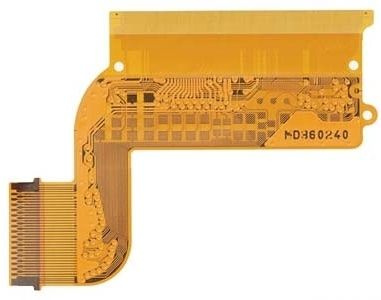

Flexible PCB, FPC Circuit Board (FL475)
| Price: |
US $ 0.62-0.8/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
FL475 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Polyimide |
| Copper Thickness: |
1oz |
| Board Thickness: |
0.8mm |
| Min. Hole Size: |
0.2mm |
| Min. Line Width: |
01mm |
| Min. Line Spacing: |
0.09mm |
| Surface Finishing: |
Enig |
| Is Customized: |
Yes |
| Material: |
Polyimide |
| Structure: |
Multilayer FPC |
| Application: |
Aviation and Aerospace |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
Product Description
China professional flexible pcb and Rigid flex pcb board FPC manuafcturer Product Description
Commodity Introduction
This is a type of polyimide PCB for the application of Sensor. It's a single sided layer board at
0.1mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately. Parameters & Data Sheet| PCB SIZE | 95x 43mm=1PCS | | BOARD TYPE | | | Number of Layers | double | | Surface Mount Components | YES | | Through Hole Components | no | | LAYER STACKUP | copper ------- 35um(1oz) | | Polyimide 0.1mm | | TECHNOLOGY | | | Minimum Trace and Space: | 12mil/12mil | | Minimum / Maximum Holes: | 2.5mm | | Number of Different Holes: | 1 | | Number of Drill Holes: | 2 | | Number of Milled Slots: | 0 | | Number of Internal Cutouts: | 0 | | Impedance Control | NO | | BOARD MATERIAL | | | Glass Epoxy: | Polyimide 0.1mm, FPC | | Final foil external: | 1oz | | Final foil internal: | 0oz | | Final height of PCB: | 0.1mm ±0.05 | | PLATING AND COATING | | | Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) | | Solder Mask Apply To: | TOP | | Solder Mask Color: | Yellow, Coverlay | | Solder Mask Type: | LPSM | | CONTOUR/CUTTING | Laser cut | | MARKING | | | Side of Component Legend | TOP | | Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. | | Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA | | VIA | None Plated Through Hole(NPTH) | | FLAMIBILITY RATING | UL 94-V0 Approval MIN. | | DIMENSION TOLERANCE | | | Outline dimension: | 0.0059" (0.15mm) | | Board plating: | 0.0030" (0.076mm) | | Drill tolerance: | 0.002" (0.05mm) | | TEST | 100% Electrical Test prior shipment | | APPLICATION: | Bluetooth, Converters
Portable Router
3G Speed
4G Speed
GPS For Car | | TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc | | SERVICE AREA | Worldwide, Globally. |
| |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
