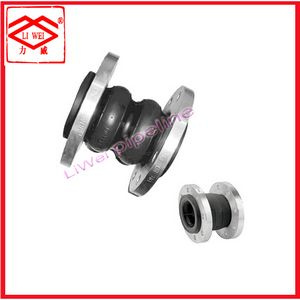

Flexible rubber compensator:
Features:
1. Small volume, light flexible, low mass, easy to install and maintain
2. It reduces structural noise transmission with strong shock absorption in survive.
This product takes advantages of high flexibility and high air impermeability and medium resistance of rubber as well as compliance and heat resistance of glass— Fabric and is prepared at both ends with metal spool and flange in connection with wind machine and air duct, which can compensate the thermal expansion by the operation of air duct and multidirections displacement. For better compliance of rubber and fabric and good sound absorption and vibration isolation, the noise and vibration passage can be reduced effectively in the operation of boiler, wind machine and air current. Because the main materials are rubber or fabric and fiber heat preservation materials of light weight without thrust in reverse and in no need of pipe supporting seat, a lot of materials are used so it has good heat resistance and corrosion resistance. In addition, rubber has better air impermeability absolutely without leakage and with lower price than metal compensator and import products.
| item | type | JGD-1 | JGD-2 | JGD-3 |
| working pressureMPa(kgf/cm 2 ) | 1.010) | 1.6(16) | 2.5(25) |
| burst pressureMPa(kgf/cm 2 ) | 2.0(20) | 3.0(30) | 4.5(45) |
| vacuumKPa(mm/Hg) | 53.3(400) | 86.7(650) | 100(750) |
| applicable temperature`C | -15`C~ 15`C under special conditions-30~+250 |
| applicable media | Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
main connecting dimension
| nominal diameter | length
mm
| flange thickness
| quality of bolt
n
| bolt hole diameter | diameter of the central ring of the bolt | axial displacement | lateral displacement | deflection angle |
| mm | inch | extension | compression |
| 32 | 1.25 | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 | 15° |
| 40 | 1.5 | 95 | 18 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 18 | 4 | 18 | 125 | 7 | 10 | 10 | 15° |
| 65 | 2.5 | 115 | 20 | 4 | 18 | 145 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 20 | 4 | 18 | 160 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 22 | 8 | 18 | 180 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 24 | 8 | 18 | 210 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 24 | 8 | 23 | 240 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 24 | 8 | 23 | 295 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 26 | 12 | 23 | 350 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 28 | 12 | 23 | 400 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 28 | 16 | 23 | 460 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 30 | 16 | 25 | 515 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 30 | 20 | 25 | 565 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 32 | 20 | 25 | 620 | 16 | 25 | 22 | 15° |
