Product Specifications
| Prod Model: |
ZRY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

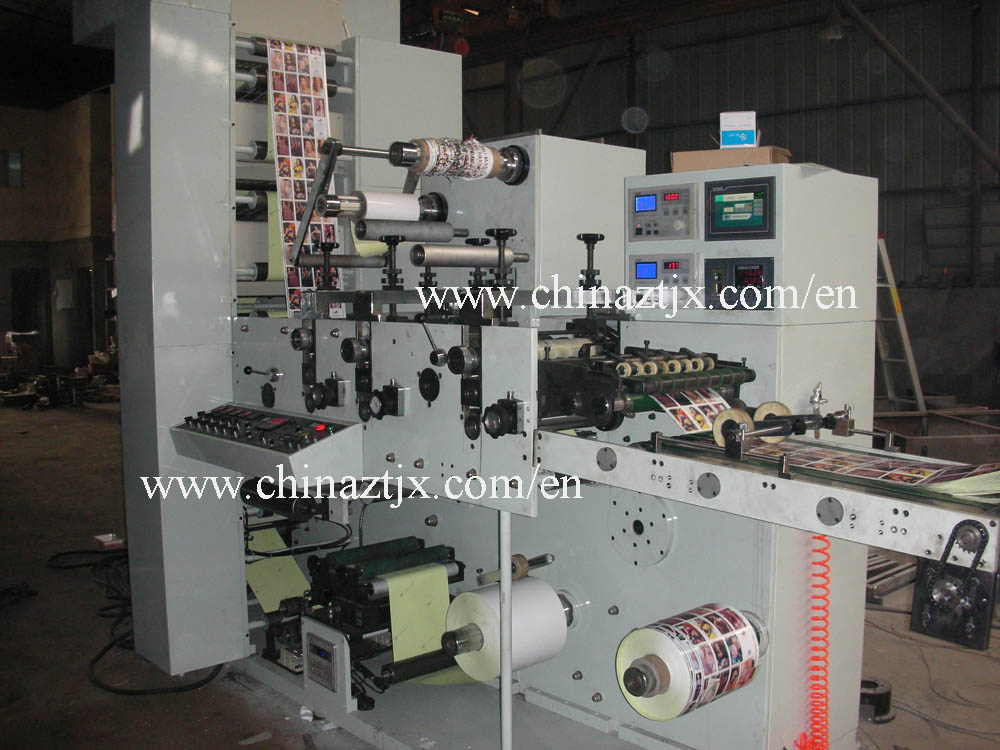

Product Name: Label Printing Machine / Flexo Printing Machine (ZRY320-A)
Characteristics
1. The main motor adopts imported converter to govern in a stepples way.
2. Feeding and dischaributor are controlled through magnetic powder brake and clutch(Japanese Mitsbish aut tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. Adopt cetramic mesh distributor roller, which is characterized by dutability, wear resistance, and corrosion resistance. The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficlency.
5. The printing unit can register in 360 degrees. Each printing unit can independently gear and loosen to have the units continue printing.
6. The printing units are all equipped with a group of infrared dryers respectively.
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8. The rooling device is adopted clipping device with air-expansin core shaft.
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, laminating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.
Printing speed
|
-60m /Minutes
|
Least can be printed color
|
-6Color
|
Web maximum width
|
-320mm
|
The largest printing width
|
-310mm
|
Roll diameter
|
-600mm
|
Rolling diameter
|
-550mm
|
Printing perimeter
|
-175 -320mm
|
Available UV drying unit
|
-5Group (Group5)
|
Alignment accuracy
|
-± 0.1mm
|
The dimension(LxWxH)
|
-2000x1100x 2100mm
|
Weight machines
|
-about 2000kg
|
Ruian Xincheng Zhongtai Packaging Machinery Factory. We are engaged in manufacturing slitting and rewinding machine, inspecting machine, sealing machine, and flexo printing machine etc. Our machine have been exported to South America, South-east Asian, Africa, Middle East ans so on, which without any exception, have been given good accomplishment by our customers and cusumers.
Our factory is authorized CE certification and also ISO9001 Certification. We have been also authorized to advanced enterprise and so on.
