Product Specifications
| Prod Model: |
TN-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| Type: |
Server Cabinet |
| Installation: |
Vertical |
Product Description

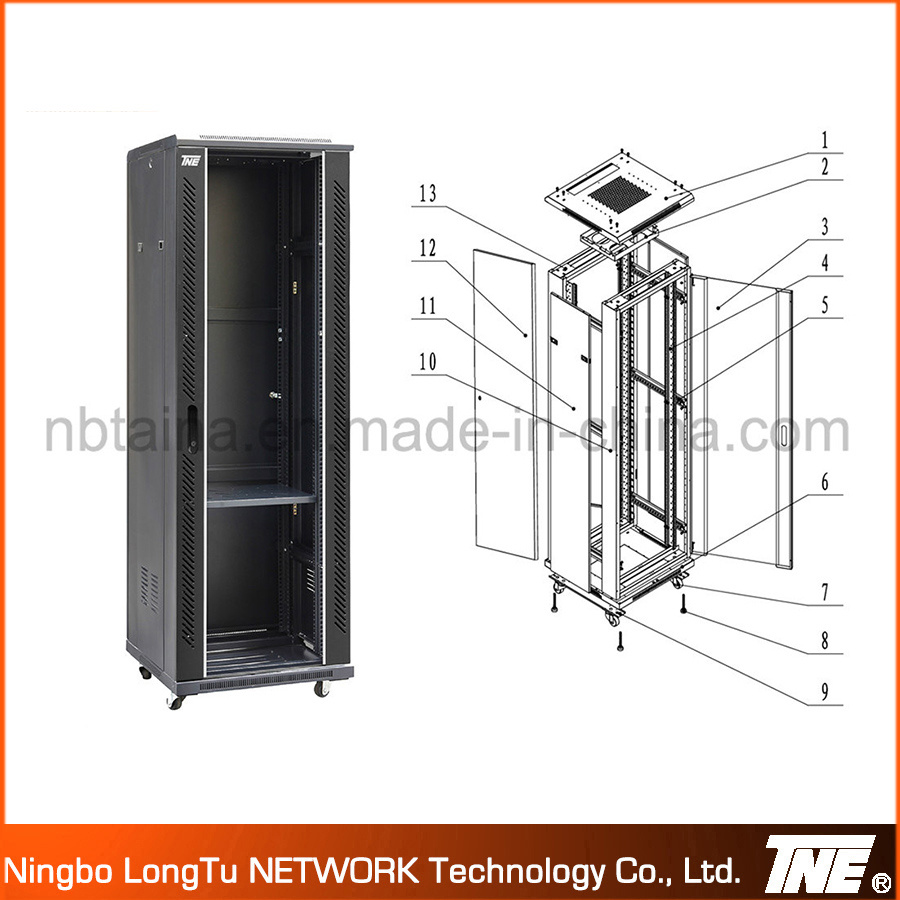

Model No. Tn-002 19'' High Quality Network Cabinet for Telecommunication Equipments*Exquisite design with precise dimension and craftsmanship;
*Toughened temper glass door front and rear solid steel door
*Lockable door and side panels for system security;
*Fully adjustable vertical mounting rails;
*Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
*Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional AccessoryFixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...

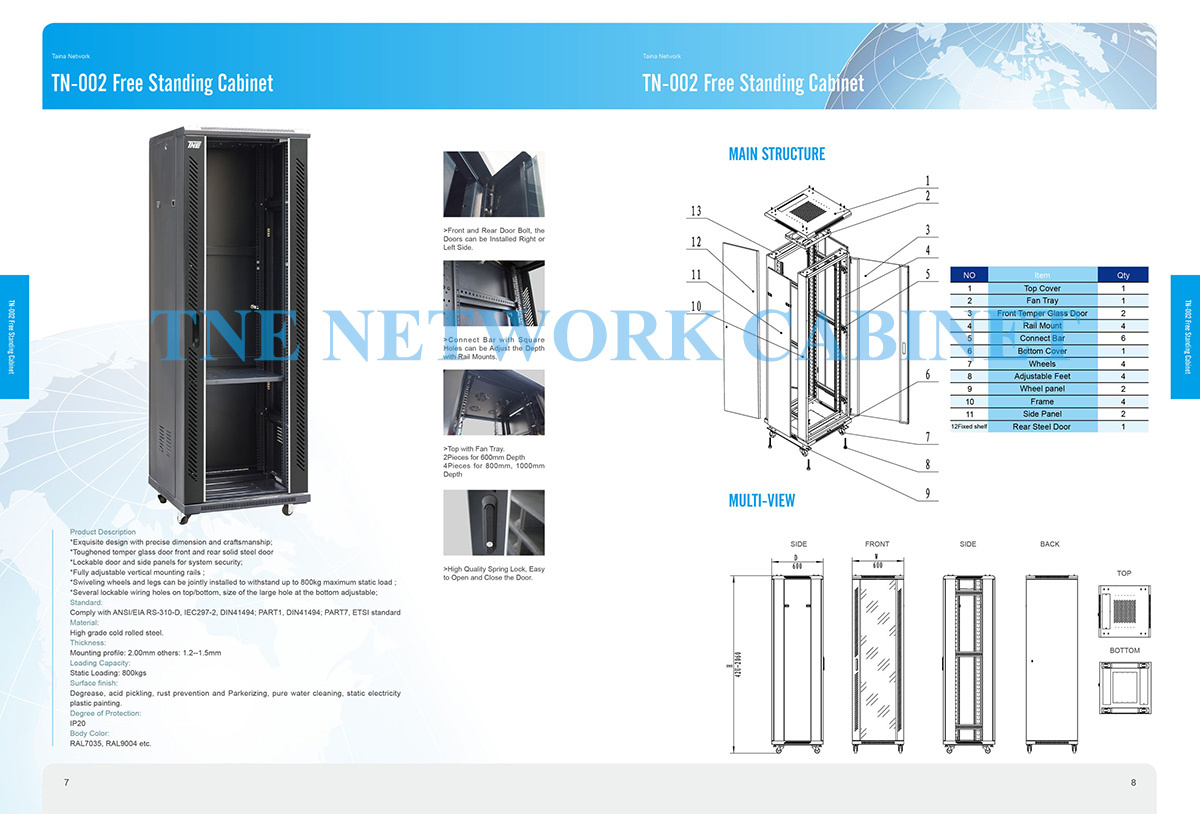

Catalog:
Factory Informaiton:
Packing Way:
| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-002
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-002
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-002
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-002
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-002
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-002
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-002
| 47U | 600mm/800mm | 600mm/800mm/1000mm |
2277mm
|
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a
Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and custom
Products, built for your specific requirement.
For more than 10 years, Longtu's customers have known we are more than a supplier or parts and
Pieces. They see us as a business partner, a trusted provider of comprehensive product lines and
Infrastructure solutions all backed by good stuff...Solid guarantees, expeditious service and incredible
Sourcing capabilites.
Our mission has always been to listen to our clients specific needs and deliver superb quality, high
Performance products through continuous product innovation and operational excellence.
Looking forwarder to contact with Us.
Ningbo Longtu Network Technology Co., Ltd was founded in June, 2003 and got the rights of self
Export and import in January 2004. It located in the south of Hangzhou Bay Cross-sea Bridge, with
Convenient transportation and traffic.
The company consistently adheres to the business principle of "Quality is basic and the service is
Supreme ". High quality products and excellent services have brought us a promising export market.
Moreover it has got the approval of ISO9001(2000)Quality Management System and other important
Security certificates such as GS, RoHS, CCC and CE.
Ningbo Longtu Network Technology Co., Ltd is a professional manufacturer in network cabinets and
Power Distribution Units in China. The products are sold all around the world, and have won a high
Reputation. In this field we own the capability of developing and designing new styles.
Many customers from foreign countries regard our factory as a manufacturing base in China. Our
Brand TNE also gains a favorable reputation overseas due to its high standards.
Good quality and Competitive price as our strength lead our products more competitive in the
International market. Furthermore, we always do our best to supply our customers with first-class
Service and delivery on time.
