Product Description

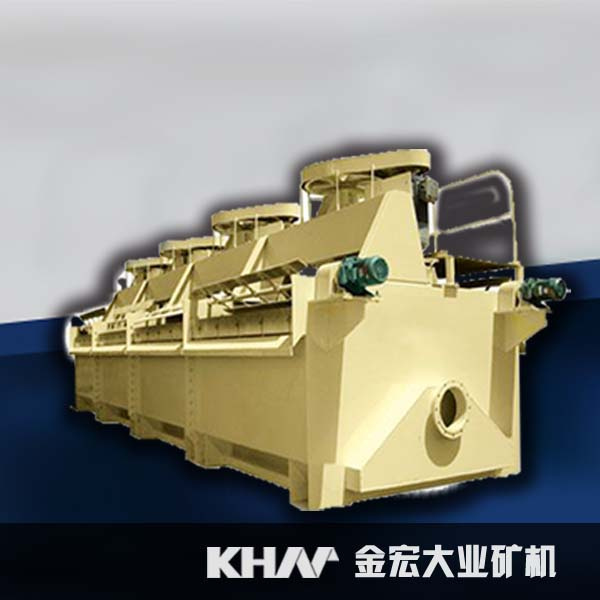

Flotation Machine
Processing ability: 0.2~16 m³ /min
Impeller rotation speed: 191~400 r/min
Dimensions: 700*700*750~2200*2900*1400 mm
Applied material: Non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.
The Inner Structure and Application of Flotation Machine:
This flotation machine is suitable for separating non-ferrous and ferrous metals as well as non metals such as fluorite and talc. The structure of flotation machine: This machine is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.
Flotation_machine
The Working Process of Flotation Machine:
This machine runs by the triangle belt of the electrical motor driving the impellor to rotate, producing centrifugal effect which will form negative pressure, and on one hand it will absorb sufficient air in order to mix with the pulp, and on the other hand it will mix the pulp in order to mix with the reagents, and at the same time will refine the foam in order to stick the minerals onto the foam, and float on the surface of the pulp in order to become mineralization foam. The workers can adjust the height of the flashboard and control the liquid level in order to scrap the useful foam.
Feature:
Before starting the machine, first check the bolts of all spare parts and before stopping the machine, manually spin the wheel to prevent the depositing of sediment from increasing the load of electro motor. During the working process, carefully adjust the height of the flashboard to maintain the stability of the liquid level, so that the mineralized bubbles on the liquid surface of the pump can be timely scraped to the launder. A certain space should be maintained between the impeller and the stator, and when the impeller is abraded, it should be changed timely, and the bearing inside the pump should be maintained every three month.
|
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Impeller diameter(mm) |
300 |
350 |
450 |
550 |
650 |
T60 |
|
Production capacity (m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Impeller rotation speed (r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
|
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
|
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
|
Dimensions(mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
2200×2900×1400 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
4486 |
XCF Flotation Machine
|
Model |
XCF-1 |
XCF-2 |
XCF-3 |
XCF-4 |
XCF-8 |
XCF-16 |
XCF-24 |
XCF-38 |
|
Chute dimensions |
Length (mm) |
1000 |
1300 |
1600 |
1800 |
2200 |
2800 |
3100 |
3600 |
|
Width (mm) |
1000 |
1300 |
1600 |
1800 |
2200 |
2800 |
3100 |
3600 |
|
Height (mm) |
1100 |
1250 |
1400 |
1500 |
1950 |
2400 |
10819 |
3400 |
|
Single effective weight (kg) |
1154 |
1659 |
2259 |
2669 |
3868 |
6520 |
8000 |
16790 |
|
Effective cubage (m³) |
1 |
2 |
3 |
4 |
8 |
16 |
24 |
38 |
|
Production capacity(calculated by slurry volume) (m³/min) |
0.2-1 |
0.4-2 |
0.6-3 |
1.2-4 |
3-8 |
4-16 |
4-24 |
10-38 |
|
Main shaft motor |
Model |
Y132M2-6 |
Y160M-6 |
Y160L-6 |
Y180L-6 |
Y200L2-6 |
Y280S-8 |
Y280S-8 |
Y280S-6 |
|
Power (kw) |
5.5 |
7.5 |
11 |
15 |
22 |
37 |
37 |
45 |
|
Impeller |
|
Rotation speed (r/min) |
960 |
970 |
970 |
970 |
970 |
740 |
740 |
980 |
|
Diameter (mm) |
400 |
460 |
540 |
620 |
720 |
860 |
950 |
- |
|
Height (mm) |
155 |
175 |
207 |
247 |
321 |
349 |
- |
- |
|
Rotation speed (r/min) |
358 |
331 |
266 |
215 |
185 |
160 |
153 |
- |
|
Circular velocity (m/s) |
7.5 |
7.5 |
7.5 |
7 |
6.97 |
7.6 |
7.6 |
7.4 |
|
Loam board motor |
Model |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
|
Power (kw) |
1.1 |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Rotation speed (r/min) |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
|
Loam board |
Rotation speed (r/min) |
18 |
18 |
16 |
16 |
16 |
16 |
16 |
16 |
|
Diameter (mm) |
500 |
500 |
580 |
600 |
600 |
700 |
700 |
700 |
|
Wind pressure of fan (kpa) |
≥12.6 |
≥14.7 |
≥19.8 |
≥19.8 |
≥21.6 |
≥25.5 |
≥30.4 |
≥34.3 |
|
Max.air injection amount (m³/m2/min) |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
