Product Specifications
| Prod Model: |
F-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Flow Control Switch |
| Temperature Of Medium: |
0~+120c |
| Maximum Working Pressure: |
10bar |
| Suitable Mediums Are: |
Water, Oil, Glycol and Other Non-Hazard Liquid |
Product Description

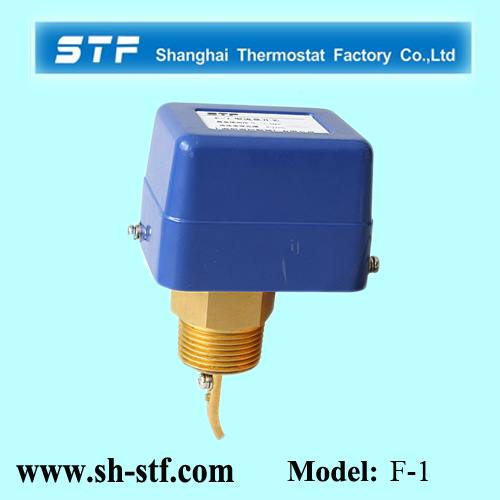

Flow Control Switch
General:
1. F-1 is used for flow control or cut-off protection. When the flow reaches the setting volume, the switch turns on/off automatically.
2. The setting point is adjustable.
3. Suitable mediums are water, oil, glycol and other non-hazard liquid.
4. Standard 1" NPT or other special connecting.
5. Maximum working pressure: 10bar.
6. Five paddles to fit with pipes of different diameters.
7. Temperature of medium: 0~+120º C.
Model | Connection size
(inch) |
Flow range (Liter / min) |
| Minimum adjustment | Maximum adjustment |
Flow decreasing |
Flow increasing |
Flow decreasing |
Flow increasing |
| F-1 | 1 | 18 | 21 | 45 | 50 |
| 1-1/2 | 30 | 35 | 100 | 105 |
| 2 | 50 | 58 | 150 | 155 |
| 2-1/2 | 75 | 86 | 187 | 200 |
| 3 | 100 | 115 | 225 | 260 |
| 4 | 110 | 154 | 317 | 337 |
| 5 | 170 | 236 | 462 | 490 |
| 6 | 225 | 308 | 562 | 599 |
| 8 | 707 | 854 | 1664 | 1727 |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
