Product Specifications
| Prod Model: |
AI-808HA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
a: 96*96*100mm, B: 160*80*100mm, C:80*160*100mm, C |
| Drift: |
≤0.01%Fs |
| Certification: |
Plastic |
| Type: |
Temperature Controller |
| Usage: |
Drying Equipment |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Plastic |
Product Description

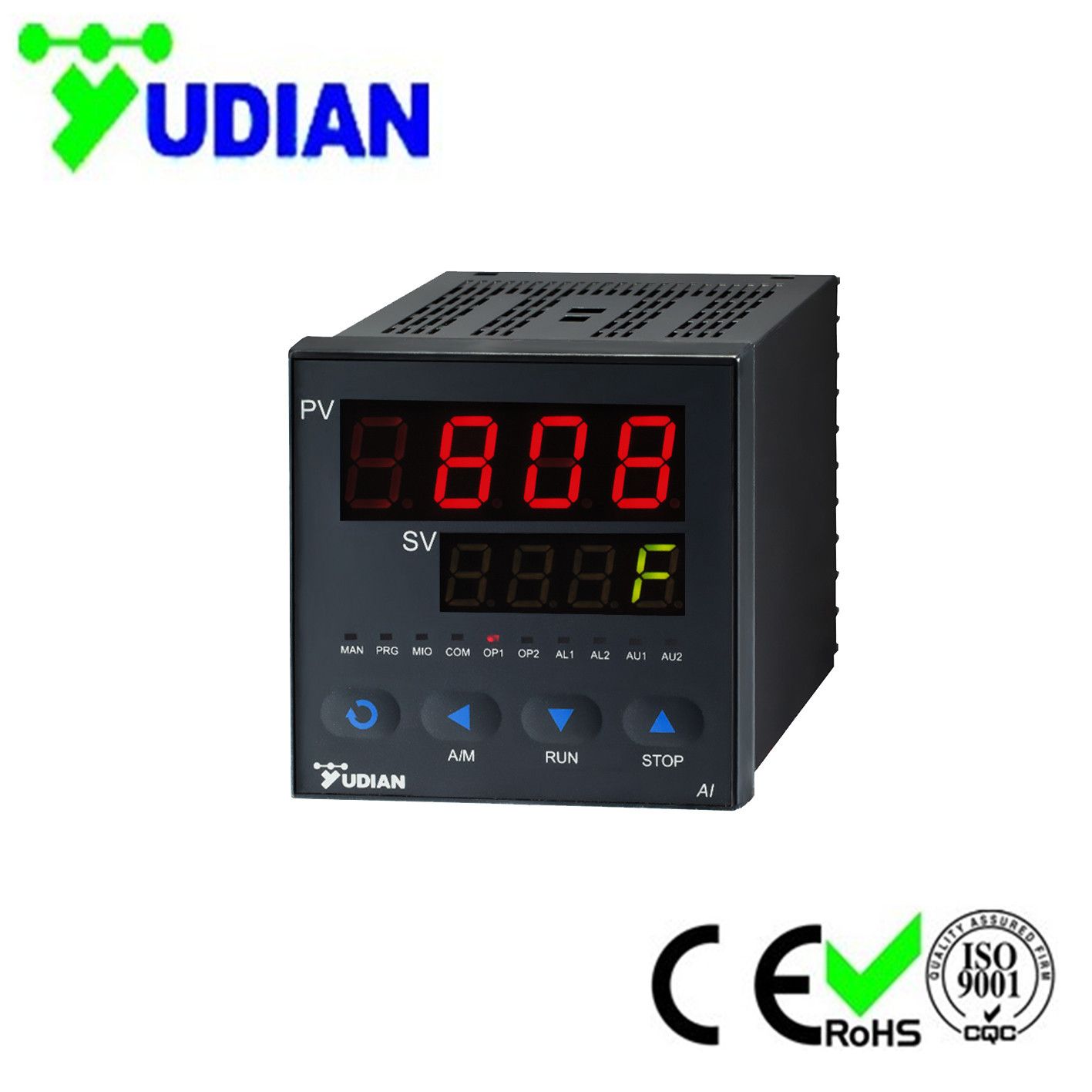

AI-708H/808H？Series？High-precision？Flow？Totalizers
？
Main？Features:
1.？AI-708H？flow？totalizer？(without？temperature？or？pressure？compensation)
AI-808H？flow？totalizer？(with？temperature？or？pressure？compensation)
2.？Provide？accumulation？of？mass,volume？and？length.
3.？Abundant？functions？such？as？retransmission,？high/low？alarm？of？momentary？flow,
temperature？and？pressure,？abnormal？signal？detecting,
and？communication？with？computer？are？available.
4.？With？high？precision？current？module？installed,？the？totalizer？can？provide
retransmission？with？14？bit？output？resolution？and？0.2%FS？output？precision.
5.？Modularized？and？configurable？inputs.
The？flow？input？can？be？1-5V,0-5V,4-20mA？or？frequency？signal,
and？special？user？defined？input？specification？is？also？available.
The？temperature？input？can？be？configured？to？Pt100,RTD,K,E,J？type？thermocouple,
voltage/current？signal.The？pressure？input？can？be？various？voltage/current？signal.
6.？Advanced？computation？algorithm？assure？enough？accuracy？in？the？application
of？flow？measurement？even？if？the？frequency？input？signal？is？very？small.
7.？Square？root/no？square？root？selectable,8-digits？accumulation？value？and？4-digits
momentary？process？value,？small？signal？cut-out？can？be？set？at？any？range.
8.？AI-808H？has？perfect？temperature？and？pressure？compensation？used？for？general？gas,
saturated？steam,？overheat？steam？and？liquid.The？compensation？calculation？with
the？method？of？table？look-up？has？a？high？accuracy？in？steam？measurement？application.
9.？As？used？as？batch？controller,？it？has？4-bit？accumulator？for？control
and？12-bit？accumulator？for？total？sum？individually.
？
Applications:
AI-708H/808H？series？flow？totalizers？can？accumulate？the？mass,？volume？or？length？of？an？object,
and？can？provide？batch？control？over？the？accumulation.
？ ？
？
Specifications:
？
ModelAI-808H？type？flow？totalizer
(with？temperature？or？pressure？compensation)
DimensionA:？96*96*100mm,？B:？160*80*100mm,？C:80*160*100mm,
C3:80*160*100mm(with？a？light？bar？with？50？segments？and？
2？levels？of？luminosity？)
D:？72*72*100mm,？D2:？48*48*95mm,
E:？48*96*100mm,E5:？48*96*112mm(no？panel？DIN？mounted)
F:？96*48*100mm
Measurement
？
Accuracy
±0.2%FS
Temperature
？
Drift
≤0.01%FS
Momentary？
flow？unitDifferent？units？can？be？set,？like？M3/hour,？kg/hour,？ton/hour.
RestranmissionWhen？X3/X5？current？module？is？installed？in？OUTP？slot,？
process？value？(PV)？can？be？retransmitted？to？
standard？current？with？maximum？load？resistor？500Ω.
Alarm？functionHigh？and？low？alarm？of？momentary？flow,？temperature,？pressure.
CommunicationSupport？RS485？communication？with？PC
/AI？True-color？HMI？Touch？Screen/Split？Paperless？Recorder
General
SpecificationsPower？supply:100？~240VAC,？-15%,？+10%？/？50-60Hz;？120？~240VDC;
24VDC/AC,？-15%,？+10%.
Power？consumption:？≤5W
Electromagnetic？compatibility？(EMC)？:
IEC61000-4-4,？±4KV/5KHz？;？IEC61000-4-5,？4KV
Operating？conditions？:？Temperature？-10~60;
Humidity？≤90%RH
|
Control mode |
On-off control mode (deadband adjustable)
AI MPT with auto tuning, adopting fuzzy logic PID algorithm. |
Measurement
accuracy |
0.2%FS ± 0.1ºC |
|
Resolution |
0.1ºC (automatically change to 1ºC when the temperature is high than 999.9ºC) or 1ºC
selectable |
|
Temperature drift |
≤0.01%FS /ºC (typical value is 50ppm/ºC) |
|
Response time |
≤0.3s ( when digital filter parameter dL=0) |
|
Input |
Thermocouple: K, S, R, T, E, J, N, WRe3-WRe25, WRe5-WRe26 |
|
Resistance temperature detector: Cu50, Pt100 |
Linear voltage: 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV, 0~20mV, etc.;
0~10V if module I31 is installed on MIO socket. |
Linear current (external connect to precise shunt resist
or install I4 module on MIO): 0~20mA, 4~20mA, etc. |
|
Linear resistance : 0~80ohm, 0~400ohm. |
Optional: apart from the above-mentioned Input type, an additional type can
be provided upon request.(Graduation index is needed) |
|
Input range |
Thermocouple: K(-100~1300ºC), S(0~1700ºC), R(0~1700ºC),
T(-200~+390ºC), E(0~1000ºC), J(0~1200ºC),B(600~1800ºC),
N(0~1300ºC), WRe3-WRe25(0~2300ºC), WRe5-WRe26(0~2300ºC) |
|
Resistance temperature detector:Cu50(-50~+150ºC), Pt100(-200~+800ºC) |
|
Linear Input: -9990~30000 defined by user. |
Output
(modularized) |
Relay output (NO+NC): 250VAC/2A or 30VDC/1A |
TRIAC no contact discrete output (NO or NC): 100 ~240VAC/0.2A (continuous),
2A (20mS instantaneous, repeat period≥5s) |
|
SSR Voltage output: 12VDC/30mA (used to drive SSR) |
Thyristor zero crossing trigger output: can trigger TRIAC of 5~500A,
a pair of inverse paralleled SCRs or SCR power module |
Linear current output: 0~20mA, 4~20mA (The output voltage of X module ≥10.5V;
and that of X3 module ≥10.5V.) |
|
General specifications |
Voltage: support AC85-265V,50/60Hz or DC24V. |
|
Power consumption: ≤5W or ≤0.8W if no alarm and output |
Isolation withstanding voltage :
between power, relay contact or signal terminal ≥2300VDC;
between isolated electroweak terminals ≥600VDC |
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5. |
|
Operating Ambient : temperature -10~60ºC; humidity ≤90%RH |
