Product Specifications
| Prod Model: |

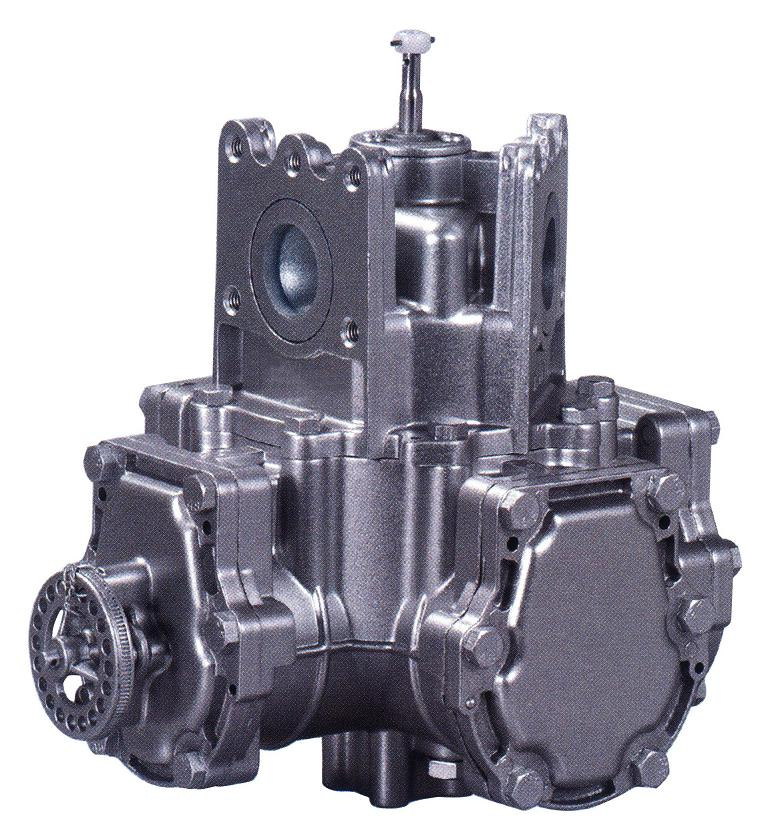

U101-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Materials:
Body: Aluminum (Spray-Painted)
Seals: Buna-N
Technical Specifications:
Discharge rate of each revolution: 0.473L
Flow rate range: 5L~65L/min
Accuracy: ± 0.2%
Repeat error: ≤ ± 0.1%
Environmental condition: -40~+70
Minimum adjusted quantity: 0.04%
Working pressure: 0.12Mpa-0.3Mpa
Features:
Micro-accurate 4-piston, positive displacement type meter with rotary valve, exterior adjustment and double oil lip seal for long life.
External structure achieved by single body design of components.
100% tested before Ex-Factory
Package:
Product ID Net Weight Cross Weight Dimension
U101-D 5.3kg/case of 1 5.5kg/case of 1 27× 23× 22cm/case of 1
Ordering Specifications:
