Product Specifications
Product Description

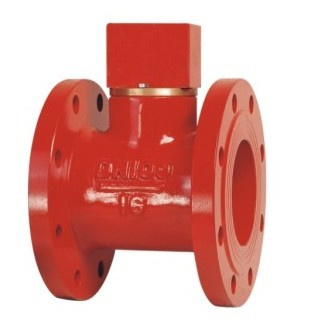

Specifications of electromagnetic flowmeter(speed flowmeter, flow meter):
Main technical data
Precision: Caliber10-250, +/-0.5% +/-1.0%
Caliber300-2000, +/-1.0%
Medium Conductance: More than 5 microsecond/cm(water more than 20 microsecond/cm)
Output signal: 4-20mA DC; 0-10mA DC
Max temperature: Caliber10-200 for 80, 120, 150 centigrade degree; Caliber250-1200 for less than 80 centigrade degree
Max pressure: Caliber10-50 for 4.0MPa; Caliber65-125 for 1.6MPa; Caliber150-1000 for 1.0MPa; Caliber 1200-2000 for 0.6MPa
Enclosure Grade: IP65, IP67 and IP68 for water proof
Power supply: 220V, 50Hz
Flange connection: JB/T 81-94, GB9119-88 or made per user's requirements.
We are a professional piping system equipments supplier with 20 years export experience to more than 45 countories. We produce gate valve, globe valve, check valve, butterfly valve, ball valve, air valve as well as flanges and pipe fittings with materials in iron, carbon steel or stainless steel and design to API, DIN, BS, JIS, ANSI/ASTM standards.
We have obtained international approval certificate ISO9001, CE0035, WRAS, NSF etc.
We are pleased to manufacture according to customer's design, drawing, photo and samples, OEM.
