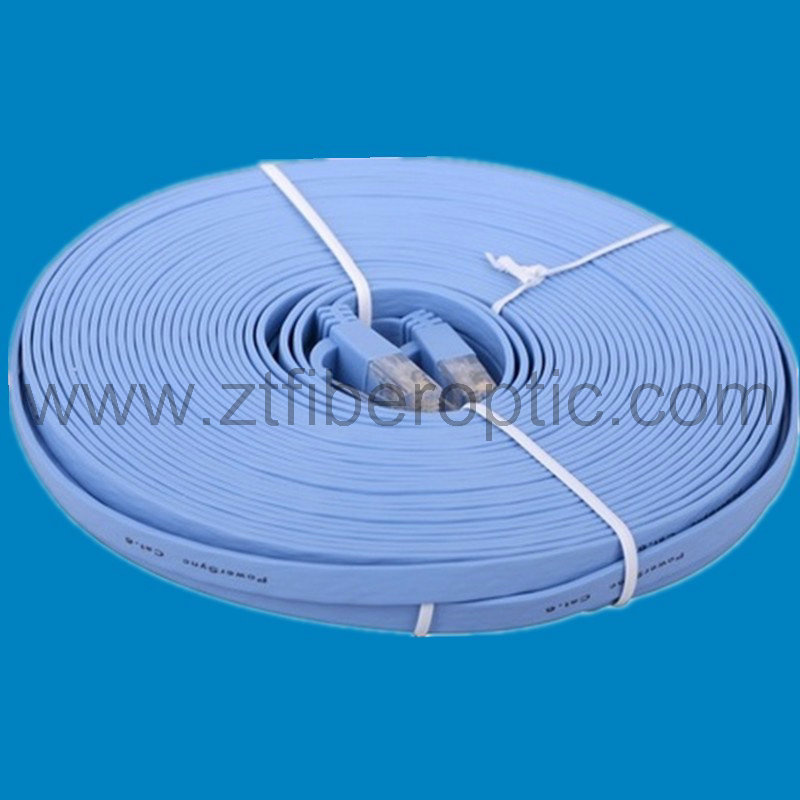

Fluke Test Bare Copper Cat5e/CAT6/Cat7 Flat Computer Cable
Product Specifications
| Prod Model: |
ZT-NC074 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bandwidth: |
Cat5e/CAT6/ CAT6A/Cat7 |
| Jacket Color: |
Customized |
| Wire Guage: |
26AWG, 23AWG, 24AWG |
| Length: |
305m(1000ft) or Customer Request |
| Material: |
Copper |
| Pin: |
8Pin |
| Application: |
Network |
| Interface Type: |
RJ45 |
Product Description
ZT Fiber Optic Technology Co., Ltd Specialized in producing: Fiber optic, optical fiber, fiber cable, optical fiber cable, Plastic Optical Fiber, patch cord, fiber optic patch cord, distribution box, Fast Connector, Terminal Box, Patch Panel, Media Converter, Socket, Outlet, Switch, wall Socket, wall outlet, wall switch, USB socket, USB Outlet, USB Switch and so on.
LAN Cable/Network Cable is used for local communication. It is a twisted pair cable for carrying signals and main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second.
Standard: ISO/IEC11801 ANSI/TIA/EIA-568-B. 2-1
Core Identification:
Blue, White/Blue;
Orange, White/Orange
Green, White/Green
Brown, White/Brown
Max. Conductor Resistance: 7.0Ω /100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.3%
Min. Propagation Velocity: 0.622C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100± 15Ω
Min. Insulation Resistance: 7000MΩ /km
Frequency
MHz |
Attenuation
dB/100m |
NEXT
dB |
PS-NEXT
dB |
RL
dB |
ELFEXT
dB |
PS-ELFEXT
dB |
|
1 |
1.9 |
74.0 |
72.3 |
20.0 |
68.0 |
65.0 |
|
4 |
3.7 |
65.0 |
63.3 |
23.0 |
56.0 |
53.0 |
|
8 |
5.3 |
60.7 |
48.8 |
24.5 |
49.9 |
46.9 |
|
10 |
5.9 |
59.0 |
57.3 |
25.0 |
48.0 |
45.0 |
|
16 |
7.5 |
56.0 |
54.2 |
25.0 |
43.9 |
40.9 |
|
20 |
8.4 |
55.0 |
52.6 |
25.0 |
42.0 |
39.0 |
|
25 |
9.5 |
53.3 |
41.3 |
24.3 |
40.0 |
37.0 |
|
31.25 |
10.6 |
52.0 |
49.9 |
23.6 |
38.1 |
35.0 |
|
62.50 |
15.4 |
47.0 |
45.4 |
21.5 |
32.1 |
29.1 |
|
100 |
19.8 |
44.0 |
42.3 |
20.1 |
28.0 |
25.0 |
|
200 |
29.0 |
40.0 |
37.8 |
18.0 |
22.0 |
19.0 |
|
250 |
32.8 |
38.0 |
36.3 |
17.3 |
20.0 |
17.0 |
ZT Fiber Optic is leading professional provider of telecommunications equipment and network solutions. We have established end-to-end capabilities and strengths across the carrier networks, enterprise, consumer, and cloud computing fields. We are committed to creating maximum value for telecom carriers, enterprises and consumers by providing competitive ICT solutions and services.
We are located in Dongguan city of China which covers an area more than 30, 000 square meters and with 4, 000 square meters non-dusty room. Full sets of advanced production and inspection equipments imported from America, Japan, Germany, and Switzerland. ZT has passed a lot of international management certifications such as ISO9001, ISO14001, RoHS, UL, SGS certification.
Meanwhile, ZT Fiber Optic also has cooperation with Zhongshan University, Guangdong Post and Telecommunications College, Jinan University. A series of professional technicians and talents are absorbed by ZT. We leading a research team to research and develop the active-passive components with our own intellectual property right, creating a set of the product scheme and technology systems of FTTH components. We are trying to connect with the market, to make high efficiency, to reduce the operation time and cost. Providing the whole course of service and technology support for customers.
ZT Fiber Optic Technology Co., Ltd Specialized in producing: Fiber optic, optical fiber, fiber cable, optical fiber cable, Plastic Optical Fiber, patch cord, fiber optic patch cord, distribution box, Fast Connector, Terminal Box, Patch Panel, Media Converter, Socket, Outlet, Switch, wall Socket, wall outlet, wall switch, USB socket, USB Outlet, USB Switch and so on.
Our products are widely used in Telecom, electric power, Railway, oil, communication, energy, coal, port, fiber optic network engineering, aerospace and military fields and other related departments. Our market and sales departments reach all over the world, devoting to offering excellent products with quick response and all-around services.
