Fluorine Barrel Type Pump System for Low Temperature Compressor Unit

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor Brand:	Bitzer, Carlyle, Danfoss, Copeland, Bock, Hanbell,
Refrigerant:	R404A, R22
Voltage:	380V/3p/50Hz, 220V/1p/60Hz
Use:	Cold Room, Blast Freezer, Cold Chain Logistic, Pha
Evaporating Temperature:	10~-15 Deg C, -15~-35 Deg C, -30~-50 Deg C
Condensing Temperature:	35 Deg C, 40 Deg C
Cooling Method:	Indirect Cooling
Certification:	CCC

Product Description



Piston type parallel compressor unit standard configuration
1.Parallel compressor unit assembly		Subcooler assembly (applies for single compressor double stage unit)
Sturdy metal chassis		Subcooler
Lifting ring		Subcooling expansion valve, subcooling solenoid valve, subcooling liquid sight glass, subcooling off-valve.
Cushion
		Gas-liquid separator
Reservoir assembly
Reservoir has 28 bar safety valve		Compressor electronic controller and protection assembly.
Reservoir inlet/outlet off-valve		Compressor high/low pressure controller.
Reservoir sight glass		Electronic overcurrent protector.
Pipeline liquid sight glass		Low pressure sensor
Reservoir out filter barrel drier, contains filter		Independent circuit breakers and thermal protector.
Filter drier barrel oulet has shut-off valve.		PLC controller and color touch screen.
Exhaust gas assembly		9. Fluid supply manifold and return manifold assembly.
Oil separator		Fluid supply manifold and return manifold quantity in accordance with product catalog
Oil separator outlet backstop shut-off valve		Manifold adopts hard straight pipe.
4.Oil line assembly		10.  Other
Oil reservoir (with oil sight glass)		Compressor pressure gauge
Oil reservoir inlet/outlet off valve		Repair valves are mounted on each manifold
Oil line backstop valve		Insulation materials for suction, economizer and cooling tube
Oil outlet filter		Compressor unit suction off-valve
Oil ball valve
Oil level controller		11.   Optional configures
		Refrigerant R22 or R404a
Single compressor assembly.		Reservoir can be vertical or horizontal
Suction and discharge off-valve		Fluid supply manifold shunt and return manifold shunt
Compressor cushion		Cooling type: air cooled, water cooled, evaporative cooled.
Suction filter barrel, contains filter		Other brand compressor and configurations
Oil sight glass
Oil pressure controller (oil pump lubrication)		12. Components that can be added
Crankcase heater		Compressor exhaust muffler
Low temperature single stage compressor cylinder fan.		High pressure sensor
Low temperature single stage compressor liquid spray cooling		Heat recovery device.
		Hot gas defrost function
		Frozen oil

Fluorine Barrel Type Pump System

High efficiency energy saving fluorine barrel type pump system is a refrigeration system utilizes pump principle, running by delivering liquid format refrigerant into evaporator. The throttled low temperature refrigerant liquid, firstly enters a low pressure cycling barrel which has certain liquid storage space and gas-liquid separation space, then uses a fluorine pump pumping the low temperature liquid refrigerant which has several times larger volume than evaporation amount, into the evaporators in each cold room. Most of the liquid in the evaporator absorbs heat and turned into gas, the rest of the liquid goes back to low pressure circulation barrel through return pipe along with gas, after gas-liquid separation, the gas will be taken away by compressor, the liquid left together with newly added liquid which has a volume equivalent to refrigerant amount, are pumped back to evaporator to complete the recycling.

Main advantages

Using fluorine barrel pump system, the evaporator has a higher evaporation efficiency, the cooling performance is good. The refrigerant recycling amount is always several times larger than the evaporation amount in evaporator, this ensures a fully wet surface inside the evaporator, so that the the evaporator's ability can all play out. Refrigerant circulates inside the evaporator along the pipe wall while the gas flows in the pipe center, this guarantees an excellent heat exchange situation between refrigerant and pipe surface. Moreover, because of being largely scoured by the refrigerant, it isn't likely to form an oil film, the bottom as well will not easy to accumulate oil dirt, in this case the pipe wall can remain a good heat exchange performance. In conclusion, using same evaporator, fluorine barrel pump feeding has a 25~30% better result than direct evaporating.

It ensures long enough distance liquid feeding. By using the pumping principle, it can overcome the resistance loss in the system, to guarantee a long distance feeding.

The system is simple but reliable, it's convenient for centralized control and automation, the operating condition of the compressor can be improved. Fluorine pump feeding system can maintain its function without frequently adjustment as long as barrel has relatively stable level of liquid and the heat load of the room doesn't have large fluctuation, this will make the automation of the refrigeration more easily.

Hot fluorine defrosting is easy to operate. In the fluorine pump feeding system, when defrosting, it directly lead the left liquid in the evaporator into low pressure cycling barrel, after defrosting finished, turn on the pump then the evaporator liquid feeding will be carried on. It returns the cold room temperature more faster, very easy to operate. The above mentioned defrosting uses the condensing heat source from other cold room as its heat source, it's more economic and energy saving (saves 80% more compared with electric defrosting )

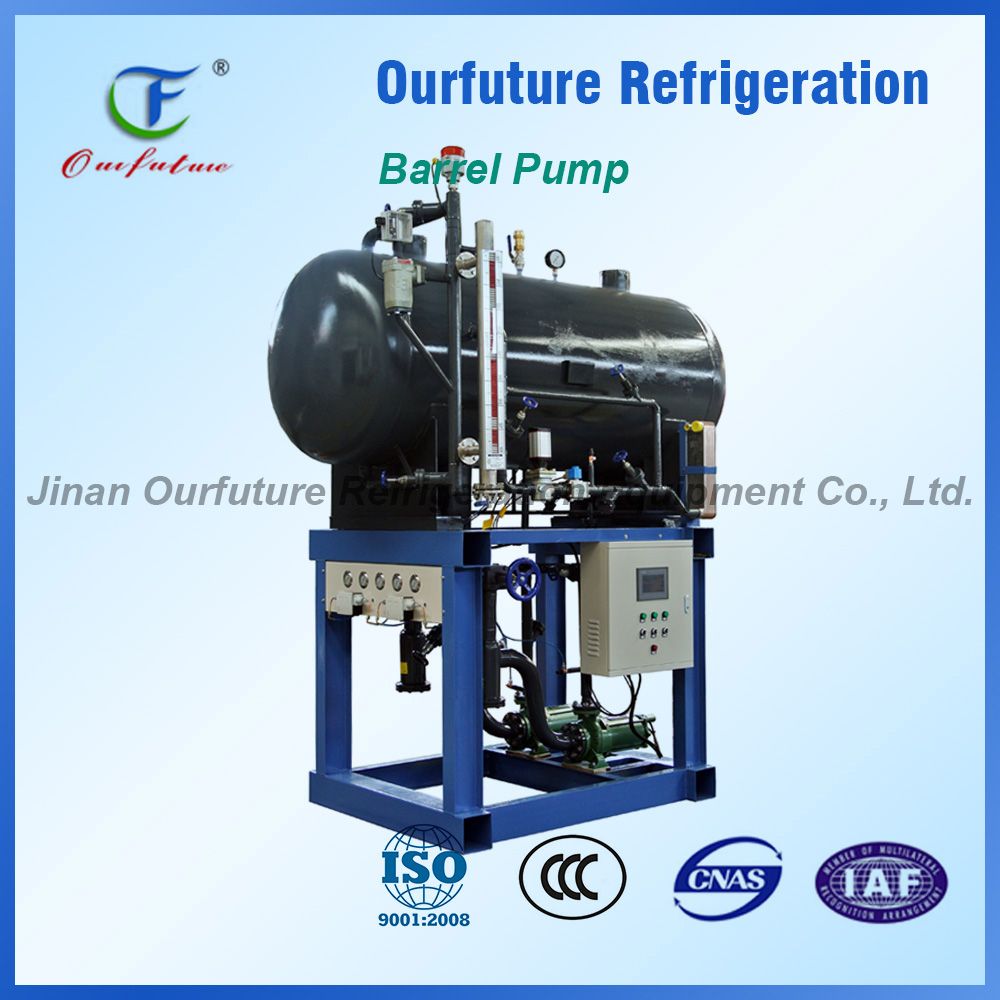

Horizontal barrel pump system is a combination of large refrigeration unit developed by us in order to meet industry need. This system unites the horizontal low pressure cycling barrel and fluorine pump onto the same steel frame, together with process piping, valves and controlled components, completes the barrel-pump integrated refrigeration system. It has auto feeding, liquid level display, fluorine barrel auto alarming system and double protection including liquid level over filled alarm and over heated control, etc.


Model	Volume(L)	Outline size(mm)			connector diameter mm
		D	H	L	a	b	c	D	e	f
OTB-1.0	1.0	712	2700	2174	133	133	25	38	76	76
OTB-2.5	2.5	1016	3100	3248	159	159	25	38	89	89
OTB-3.5	3.5	1220	3300	3404	219	219	25	38	89	89
OTB-5.0	5.0	1420	3500	3516	219	219	25	38	89	89
OTB-8.0	8.0	1620	4128	4280	273	273	25	57	108	108
OTB-10.0	10.0	1724	4237	4528	273	273	25	76	108	108
