Product Specifications
| Prod Model: |
IMG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Type.: |
Img |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Shell Material: |
PVC |
Product Description

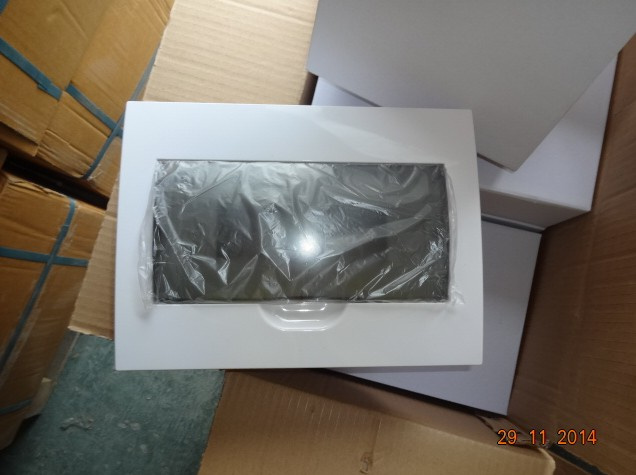

1: Distribution box Specification
Specifications and features of distribution box:
1) High impact resistance material
2) Transparent covering
3) Surface and flush mountings available
4) Plenty of space for smooth and easy wiring
5)Single or double row of copper
6) Range: 4, 6, 8, 10, 12, 15, 18, 20, 24, 30, 36 ways
This Series Flush Type and Surface Type Suitable for indoor use, meanwhile, the plastic-sprayed surface has a stylish appearance.
Products are available for the installation of terminal substitution rail, button box, small terminal, sigal, relay and sensor, communication and joint box etc.
Technical Parameter:
· Environmental Temperature: -40° C~+85° C
· Relative Humidity: ≤ 85% (+30° C)
· Air Pressure: 70~106KPa
· Connector Loss: ≤ 0.2dB
· Insertion Loss: ≤ 0.20dB
· Return Loss: ≥ 50dB
· Plug times: >1, 000 times
· Insulation Resistance between High Voltage Protection Grounding and Rack: ≥ 1000MΩ /500V (DC)
· Voltage Resistance between High Voltage Protection Grounding and Rack: ≥ 3000V (DC), 1 min no puncture, no arc-over
|
Specification |
Dimension(mm) |
|
L |
W |
H |
|
IP40 Flush Type |
4 WAYS |
112 |
200 |
66 |
|
6 WAYS |
150 |
200 |
66 |
|
8 WAYS |
184 |
200 |
66 |
|
10 WAYS |
222 |
200 |
66 |
|
12 WAYS |
256 |
200 |
66 |
|
15 WAYS |
310 |
200 |
66 |
|
18 WAYS |
365 |
220 |
76 |
|
24 WAYS |
257 |
310 |
76 |
|
36 WAYS |
293 |
455 |
76 |
|
IP40 Surface Type |
4 WAYS |
112 |
210 |
100 |
|
6 WAYS |
148 |
210 |
100 |
|
8 WAYS |
184 |
210 |
100 |
|
12 WAYS |
256 |
210 |
100 |
|
18 WAYS |
364 |
222 |
100 |
|
24 WAYS |
270 |
325 |
100 |
|
36 WAYS |
305 |
473 |
100 |
