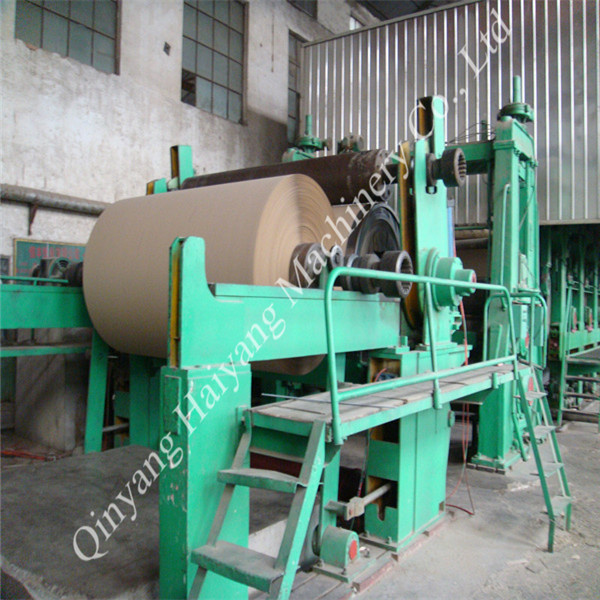

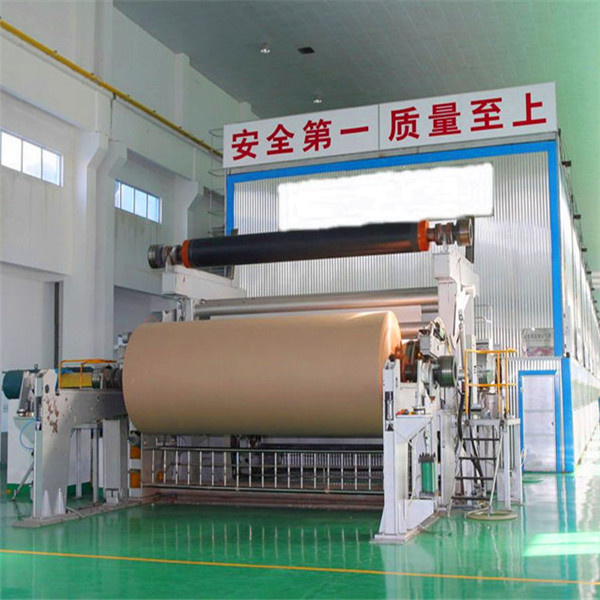

Fluting Paper Making Machine
| Price: |
US $ 450000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
contact & negotiate!!! John:8615638823327 company:we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate
Perfect service:1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
2400 double-dryer and multi- cylinder kraft paper machine| 1. Output paper | Kraft paper, carton paper, |
| 2. Raw material | waste paper |
| 3. Capacity | 30T/d |
| 4. output paper weight | 70-100g/m2 |
| 5. net paper width | 2400mm |
| 6. cylinder mold width | 2850mm |
| 7. Rail space | 3400mm |
| 8. Working Speed | 300-350m/min |
Main frames of the production line:1.Cylinder part:Φ1500mm×2850mm cylinder mould 3sets;Φ450mm×2850mm couch roll 3sets;reverse roll 1 set; rubber Share hardness is 38ºC±2, pneumatic pressure device.
2.Press part: Φ600mm×2850mm stone roll 1 set ;Φ550mm×2850mm rubber roll 1 set; 500 speed reducer of drive part 1 set; scraper knife 1 group.
3.Dryer part: Φ2500mm×2850mm Dryer can 2 sets ; Φ1500mm×2850mm Dryer can 8 sets; Φ550mm×2850mm touch roll 2 sets; rubber Share hardness is 95ºC±2, pneumatic pressure device
4. winding part:
Cylinder type winding machine 1 set, Rewinding machine 1 set.
5. Driving & control part:
AC frequency conversion speed, section drive.
Main machine configuration| No. | equipment | QTY |
| 1 | 2400mmPaper making machine | 1 set |
| 2 | dryer can Exhaust hood | 1 set |
| 3 | 850axial flow ventilator | 3 sets |
| 4 | 1500mm Pressure type mesh vat | 1 set |
| 5 | Model 15roots pump | 1 set |
| 6 | suction box | 3 sets |
| 7 | 2400mm Winding machine | 1 set |
| 8 | calender | 1 set |
| 9 | Rewinding machine | 1 set |
| 10 | 5m3 high consistency Hydrapulper | 2 sets |
| 11 | Fiber separator | 1 sets |
| 12 | Pressure screen | 1 set |
| 13 | 2m2High frequency vibration screen | 2sets |
| 14 | 450Double disk pulp refiner | 3 sets |
| 15 | 12m2 Pulp thickener | 1 set |
| 16 | Φ700mmThruster | 6 sets |
| 17 | 4 inch Pulp pump | 4 sets |
| 18 | 6 inch Pulp pump | 6 set |
| 19 | 8 inch Pulp pump | 4 set |
| 20 | Japan Sanken Control cabinet | 1 set |
| 21 | air pump cabinet | 1 set |
| 22 | Work table | 1 set |
| Prod Model: |
2400mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Engineers Will Be Sent to Install |
| Training: |
Free |
| Factory Layout: |
Depends on Customer Needs |
| Type: |
Paperboard |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thick Paper |
| Condition: |
New |
| Certification: |
ISO |
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
