Product Specifications
| Markets: |
Africa,Mid East,Eastern Asia |
| Fly Ash Drying Machine: |
Dry Mixed Mortar, Dry Sand |
| Certification: |
ISO9001: 2000 |
| Condition: |
Used |
Product Description

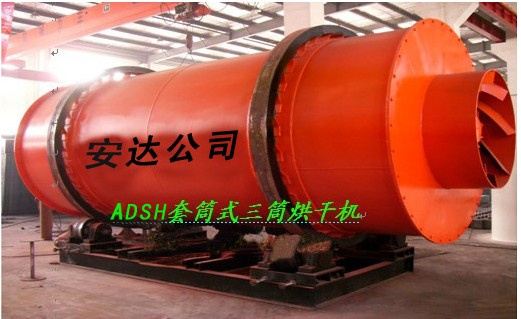

Fly ash drying machine in the structure form is unique and novel, at the domestic leading position in the same products in the technical performance, mainly used in building materials, chemical production of fly ash, slag, clay, coal and ore material drying; Fly ash drying machine is composed of three different diameter of the concentric circle each other block combination, subject to the drying machine. The subject through both ends of the wheel 4 horizontal rotation at the ends of the four wheel 5, fuel, gas, coal-fired hot-blast stove device feeding tube end. The discharge end is provided with a dust cover and automatic feeding device. Dust cover is connected with a dust collector through a pipeline, separately designed according to user process conditions and requirements of dust removal equipment, feeding equipment and transportation equipment. The drying process of sleeve type three cylinder drying machine is realized, dried material is composed of a material is fed into the inner cylinder end of drying machine, spiral guide plate material through the tube into the inner tube, inner tube with internal many spiral lifting plate, the material through the rotary cylinder is not broken, lifter dial up and longitudinal movement, material reaches the inner cylinder left due to fall into the self-weight of cylinder, the guide plate, in the cylinder body under the action of rotary material into the tube, in the material right movement in cylinder lifting plate under the action of cylinder, until the right end, the material falls into the outer cylinder under the action of gravity. Similarly, the material into a leftward movement in the outer cylinder spiral lifting plate under the action of outer cylinder, until the end. Plugging in the outer material guiding cone under the action of the discharge end of the barrel body into.
Fly ash drying machine main body is 1, 2, 3, three concentric cylinder, curved spiral lifting plate with different numbers, different angles, and each end of the cylinder body is provided with a guide plate. The main sleeve type short cylinder drying machine through two gear motor, two driving driving at both ends of the roller, make the belt around the center of rotation. The drying machine of wet material feeding device, the material feeding pipe fed into the inner cylinder 3, wet material through the spiral guide plate quickly to the spiral lifting plate, with the barrel rotation, located in the spiral lifting plate four a barrel reached material is lifting at the same time, continuous rolling, polishing powder and to the discharge end longitudinal motion. At the same time from the stove to heat flow, has entered the inner cylinder, cylinder, outer cylinder 1 and the materials are strong heat exchange. Because of the metal plate is material thermal drying quickly, plate, lifting plate cylinder is firstly heated, and then the heat by conduction and radiation way to the material, the material after heating temperature, when the temperature rises to the evaporation of water temperature, water vapor is separated from the material with the dust into the atmosphere, by dust collector, so as to achieve the purpose of drying materials.
Ruiguang fly ash drying machine advantages
1, the equipment investment is required to imported products 1/6.
2, the material with moisture that is below 0.5%, fly ash and slag powder production line first products.
3, cylinder body self thermal insulation thermal efficiency as high as 80% or more ( the traditional single cylinder drying machine thermal efficiency is only 35% ) to improve the thermal efficiency of 45%.
4, the fuel can be applied to coal gas. Can block granular powdered material drying below 20mm.
5, than the single cylinder drying machine to reduce the area of about 50%, the investment of construction is reduced by about 50%, electricity consumption is reduced to 60%.
Jiangsu Anda Environmental Protecion Technology Co., Ltd. Has advanced production equipment, strong technical force, with high-quality management and R & D team has long been committed to various drying equipment and building materials machinery, energy saving and environmental protection equipment, production research and development. Is a private joint-stock enterprise specialized in domestic production and sales of building materials and machinery, energy saving and environmental protection equipment. The company produces the product structure is reasonable, state-of-the-art technology, high-energy and low consumption, green. Simple to use, easy to operate. In good faith to provide our clients with site surveys, process design, equipment manufacturing, installation and commissioning of a full-service, products sold throughout the country, some of the products are exported to Southeast Asia, widely praised by the user. Companies adhering to the principle of service to "pay attention to every detail, creating value for customers" business practice "pragmatic, pioneering and innovative" business philosophy, adhere to the direction for the development of environmental protection and energy saving devices, and to build a service network across the country, dedication to provide customers with a comprehensive, thoughtful, quick service, and has won a wide range of care and support. The company's products have been widely involved in the electric power, iron and steel, building materials, non-ferrous metallurgy, chemical industry, food, more than 10 industries.
Firmly establish the principle of "the progress of science and technology to drive product development, to win market trust in mass effect" Since its inception, relying on a large number of innovative researchers, active cooperation with research institutes to strengthen the technical problems in research and forward-looking research development, firmly grasp the commanding heights of industry and product technology, the company has developed a ADWH dryer, three-cylinder dryer in ADSH the, JDMC Pulse long bag filter, JDW New Horizontal ESP, JQM air box pulse dust collector, JLC shaft kiln dust collector, improved O-Sepa classifier, JZX efficient combination classifier, JMX efficient dynamic classifier, JDS cycle efficient three separate classifiers, efficient dual-rotor classifier machine, pulverized coal gray grader efficient and environmentally friendly new energy-saving products in the field of domestic environmental protection machinery made certain advantages, and make a contribution to the cause of environmental protection in China. As high-tech enterprises, the company is in strict accordance with the ISO9002 international quality system certification indicators for implementation, design, production, and continue to adopt new technologies, new materials, new technology, introduction of high-tech energy saving and environmental protection products. Jiangsu Environmental Science and Technology Co., Ltd. Production base in Andaman already has a large vertical lathe, drill press, boring machine, dynamic balancing instrument, automatic cutting machine, automatic submerged arc welding, large bending machine, shearing machine processing equipment for the production of large-scale environmental mechanical equipment to create the more favorable conditions.
The company expects by virtue of their tireless efforts in the near future, to become the leading domestic and international environmental protection machinery manufacturing enterprises, providing customers with more efficient and high-quality products and sincere service, to make greater contributions to the cause of environmental protection and energy conservation in China.
