Product Specifications
| Prod Model: |
FM-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Web Width: |
920mm |
| Max. Printing Width: |
900mm |
| Max. Die-Cutting Width: |
900mm |
| Printing Repeat: |
286-1200mm |
| Die-Cutting Repeat: |
286-1200mm |
| Max. Unwinder Diameter: |
1524mm/1200mm |
| Max. Rewinder Diameter: |
1524mm/1200mm |
| Gearing: |
1/8cp |
| Max. Printing Speed: |
150m/Min |
| Diameter Of Web Roller: |
100mm |
| Type: |
Ink Jet |
| Embossing Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Speed: |
150m/Min |
Product Description
We are Flexo Press!

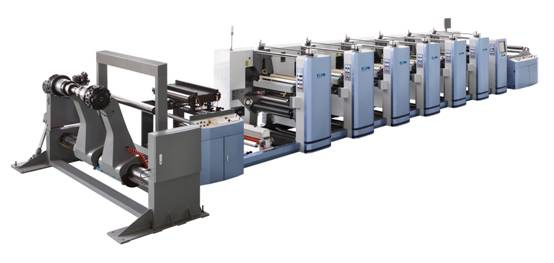

FM-920 Flexo Printing Machine
Application Object:
Suitable for eco-friendly packaging such as paper cup, paper box, pre-printing carton for food/housing, milk package and wall paper printing etc.
Paper used:
Kraft paper, carton board material, coated paper, liner paper, laminated paper, wall paper, nonwoven etc.
Medium-Range Flexographic Press
| Specification | 35.5"(900) | 39.5"(1000) | 47.5"(1200) |
| Max. web width | 920mm | 1020mm | 1220mm |
| Max. printing width | 900mm | 1000mm | 1200mm |
| Printing repeat | 286-1200mm |
| Max. printing speed | 150m/min |
| Max. unwinder/rewinder diameter | 1524mm/1200mm |
| Drying mode | a. warm drying b. IR drying c. UV drying |
| Ink used | Water-based ink or UV ink |
| Power supply | 3 phase 380V 50Hz |
| Suitable material | 17g copy paper, cotton paper, 40-450g paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper |
Wide-Range Flexographic Press
| Specification | 50.4"(1330) | 56.5"(1430) | 64.2"(1630) | 72.0"(1830) |
| Max. web width | 1350mm | 1450mm | 1650mm | 1850mm |
| Max. printing width | 1330mm | 1430mm | 1630mm | 1830mm |
| Printing repeat | 600-1600mm |
| Max. printing speed | 150m/min |
Max. unwinder /
rewinder diameter | 1524mm |
| Drying mode | a. warm drying b. IR drying c. UV drying |
| Ink used | Water-based ink or UV ink |
| Power supply | 3 phase 380V 50Hz |
| Suitable material | 17g copy paper, cotton paper, 40-450g paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper |
Main characteristics:
1. Capable of inline cleaning dust, printing, and cutting
2. Eco-friendly printing, water based ink and UV ink used
3. Metal anilox rollers can be used for a long time, and can supply ink appropriately.
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable , and register much more accurate.
6. Automatically electronic web-guide system
7. Online printing register detection
8.Register system can be operated automatically or by manual.
Our service:
Top quality, competitive price, timely del;ivery and heart-to-heart service.
Delivery: About 60 days after receiving 30% deposit by T/T.
Warrantee: One year guarantee, life-long maintence.
