Supplier: | Weifang Xinshun Casting Co., Ltd. |
---|---|
Price: | US $ 1.2-207718/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,EXW |
![]() |
Prod Model: | XGQT12 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 133mm |
Type: | Equal |
Shape: | Equal Tee |
Lateral: | 90??Tee |
Head Code: | Round |
Technics: | Casting |
Standard: | ANSI |
Certification: | FM,UL |
Connection: | Grooved |
Material: | Ductile Iron |
Finish: | Epoxy Powder,Paint,Galvanization |
Pressure Rating: | 300psi |

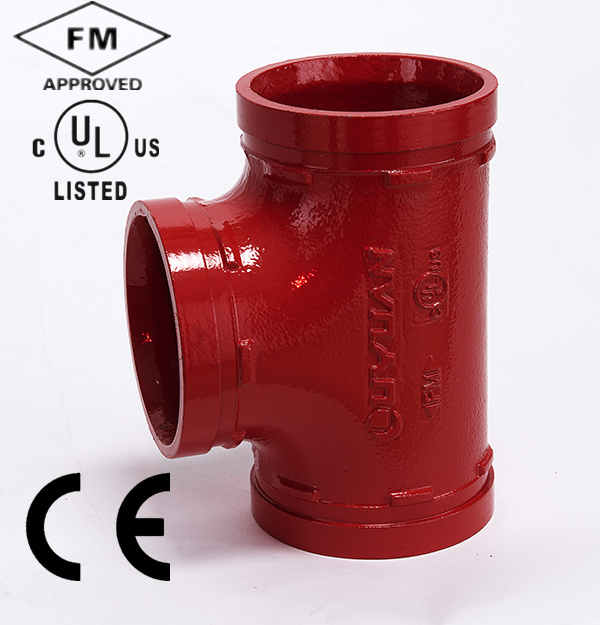

Product Details FM/UL/CE Ductile Iron Grooved Fittings for Fire protection System

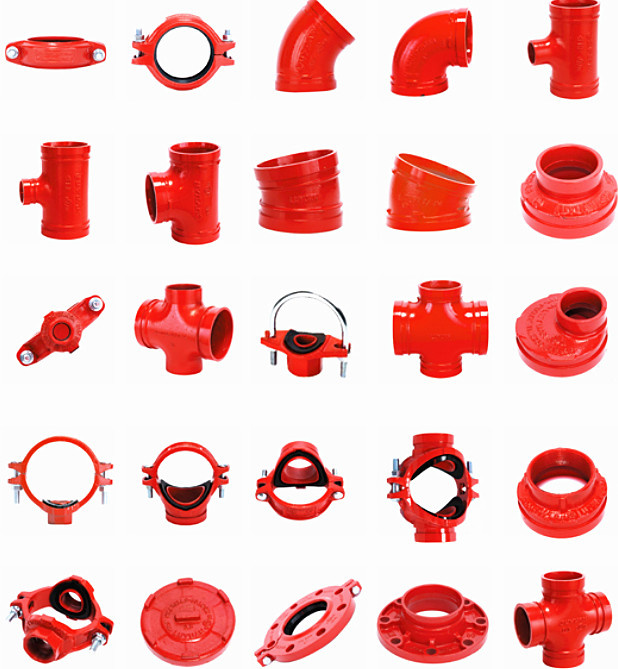

Product Name | Ductile iron grooved pipe fittings and couplings | |||||||
Product series | 1)Rigid coupling, Flexible coupling | |||||||
2)Grooved equal tee, Grooved reducing tee, Threaded reducing tee,Grooved | ||||||||
mechanical tee,Threaded mechanical tee,Threaded U-Bolted mechanical tee | ||||||||
3)90°Elbow, 45°Elbow, 22.5°Elbow, 11.25°Elbow | ||||||||
4)Grooved equal cross,Grooved reducing cross,Threaded reducing cross | ||||||||
5)Grooved reducer,Threaded reducer, Threaded eccentric reducer | ||||||||
6)Grooved adaptor flange, Threaded adaptor flange,Spilit Flange | ||||||||
7)Cap | ||||||||
8)Produce per customer's requirement | ||||||||
Brand | Luyuan | |||||||
Certification | FM/UL/CE/CCC/ISO | |||||||
Size | 1/2 inch-12 inch | |||||||
Material | Ductile iron,ASTM A536/QT450-10 | |||||||
Technics | Casting | |||||||
Working pressure | 300Psi/2.07Mpa | |||||||
Tensile strength | Min.Psi-65,000 (Mpa-448) | |||||||
Yield strength | Min.Psi-45,000 (Mpa-310) | |||||||
Elongation | Min.12% | |||||||
Surface finish | Epoxy powder,Paint,Galvanized,Dacromet,Dipping Paint | |||||||
Color | Red-Ral3000, Blue, Orange | |||||||
Gasket | EPDM, Nitril,White Silica Gel | |||||||
Capacity | 45000 Tons/Year | |||||||
Packing | 1)Carton,Plywood pallet with plastic film | |||||||
2)Wood case | ||||||||
3)As per cutomer's requirement | ||||||||
Delivery Time | 20-30 days after receiving deposit | |||||||
Payment terms | T/T or L/C at sight | |||||||
Application | 1)Automatic sprinkler system for fire protection on commercial,civil and | |||||||
munisipal constructions like water supplying,gas supplying,heat supplying,etc. | ||||||||
2)Industrial pipeline system on shipping, mine, oil field, textile,powder plant,etc. | ||||||||
3)Pipeline system on subway station,railway station,airport,seaport,bridge,etc. |
OEM is acceptable, or according to custom's special requirement
Our Services:
FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 20-30days.
3.What is the shipping port?
We ship the goods via Qingdao port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can send us an email by click Contact Supplier bottom.
You can also call my mobile phone number 0086 15269658168
6.What is the location of your company?
Our company is located in the Weifang, Shandong Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
