Product Specifications
| Prod Model: |
MX-F4004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 70X 42X 70cm: |
70X 42X 70cm |
| Type: |
Compression Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC110V |
| Oil Cylinder Position: |
No |
Product Description

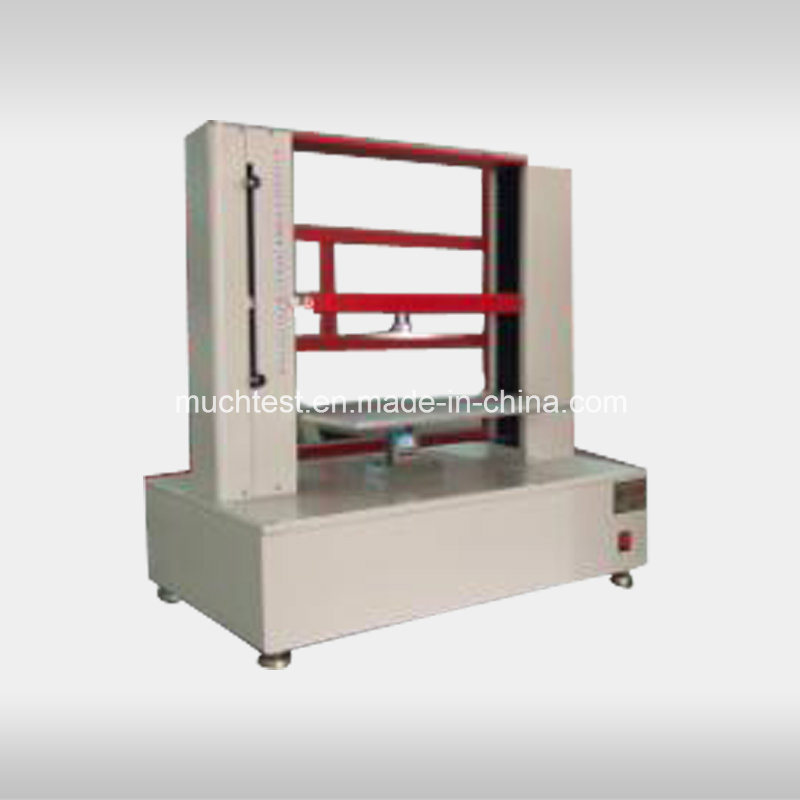

This testing machine is used for mensurating the sunken into the hardness of porous elastic material.
Working principle:
This testing machine adopts computer control, special test software used on the motor drive screw and make the pressure plate moves down, and the percentage of compressed sample to the required;Results using the LOAD CELL power sensors connected automatically display values.
Standards:
GB/T 12825 and GB/T 18942.1
Specification:
Induction way: | force sensor is automatically displayed |
| Capacity: | 300kg |
| Unit switch: | kg, N and LBS |
| Resolution: | 1/1000 |
| Accuracy: | (0.5 ± 0.5%) |
| Maximum stroke: | 200mm |
| Test speed: | 100 ± 20mm/minutes |
| On pressure plate specifications |
|
| Diameter: | 200mm |
| Bottom fillet R1mm of under platform: | 420x420mm |
| Diameter ventilation holes: | 6mm |
| Pitch: | 20mm |
| Sample size: | length of 380mm and thickness of 50mm |
| Automatic shutdown device: | stroke upper and lower limits |
| Volume (WxDxH): | 70X 42x 70cm |
| Weight: | 70kg |
| Power source: | 220V/2.6A |
