Folien Kondensator Cbb21b Polypropylene Capacitor
Product Specifications
| Prod Model: |
CBB21-B |
| Type: |
Polypropylene Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
0.0047~4.7UF |
| Electrolyte: |
Box Type Metallized Polypropylene Film Capacitor |
| Tuning: |
Box Type Metallized Polypropylene Film Capacitor |
| Filter: |
Box Type Metallized Polypropylene Film Capacitor |
Product Description

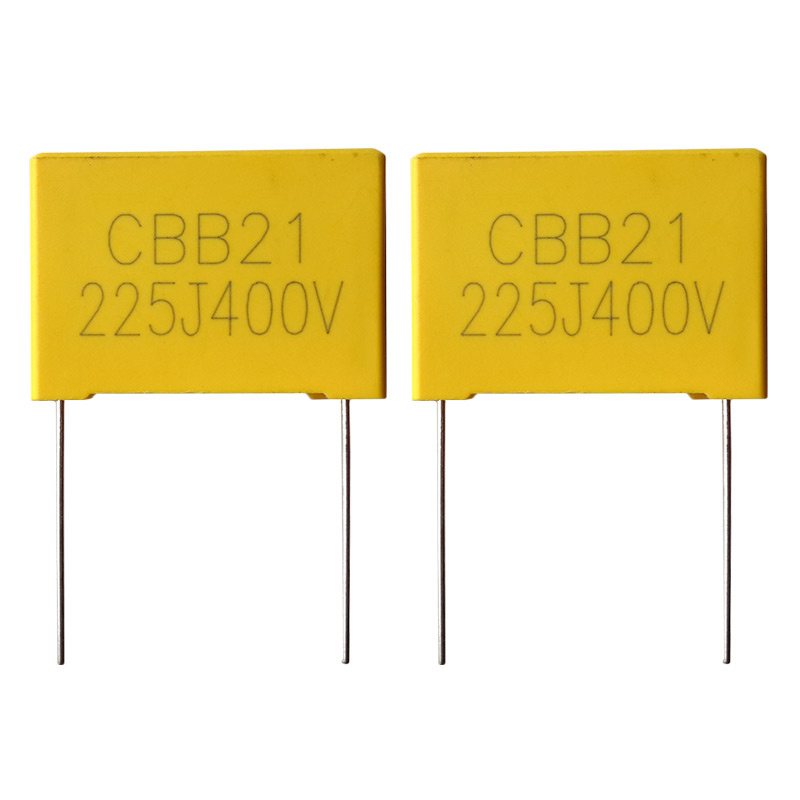

Box type Metallized polypropylene film capacitor CBB21-B(MPB)
1.Featurea and uses
CBB21-B are non-inductively wound with metallized polypropylene film as the dielectric / electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin,the identical outer appearance ,very low loss at high frequency , suitable for high current ,high insulation resistance ,long life due to self-healing effect ,widely used in high frequency ,DC,AC and pulse circuits .
2.specifications
| Reference standard | GB10190(IEC60384-16) |
| Climatic category | 40/85/21 |
| Rated voltage(Ur) | 250V,400V,630VDC |
| Capacitance range | 0.0047 ~ 4.7uF |
| Capacitance tolerance | J:±5% K:±10% M:±20% |
| Voltage proof | 1.5Ur(5S) |
| Dissipation factor | ≤0.001(1KHz ,20ºC) |
| Insulation resistance(IR) | Cr ≤0.33uF ≥25000MΩ |
| Cr > 0.33uF ≥7500S(20ºC,1min) |
3.Dimensions(Unit :mm)
| capacitance(uf) | 250V | 400V | 630V |
| W | H | T | P | W | H | T | P | W | H | T | P |
| 0.01 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 |
| 0.012 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 |
| 0.015 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 |
| 0.018 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 | 13 | 9 | 4 | 10 |
| 0.022 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 |
| 0.027 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 |
| 0.033 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 | 13 | 11 | 5 | 10 |
| 0.039 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 |
| 0.047 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 |
| 0.056 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 |
| 0.068 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 | 13 | 12 | 6 | 10 |
| 0.082 | 18 | 12 | 6 | 15 | 18 | 12 | 6 | 15 | 18 | 12 | 6 | 15 |
| 0.1 | 18 | 12 | 6 | 15 | 18 | 12 | 6 | 15 | 18 | 12 | 6 | 15 |
| 0.12 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 |
| 0.15 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 |
| 0.22 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 | 18 | 13.5 | 7.5 | 15 |
| 0.27 | 18 | 16 | 10 | 15 | 18 | 16 | 10 | 15 | 18 | 16 | 10 | 15 |
| 0.33 | 18 | 19 | 11 | 15 | 18 | 19 | 11 | 15 | 18 | 19 | 11 | 15 |
| 0.39 | 26.5 | 17 | 8.5 | 22.5 | 26.5 | 17 | 8.5 | 22.5 | 26.5 | 17 | 8.5 | 22.5 |
| 0.47 | 26.5 | 18.5 | 10 | 22.5 | 26.5 | 18.5 | 10 | 22.5 | 26.5 | 18.5 | 10 | 22.5 |
| 0.56 | 26.5 | 18.5 | 10 | 22.5 | 26.5 | 18.5 | 10 | 22.5 | 26.5 | 18.5 | 10 | 22.5 |
| 0.68 | 32 | 20 | 11 | 27.5 | 32 | 20 | 11 | 27.5 | 32 | 20 | 11 | 27.5 |
| 0.82 | 32 | 20 | 11 | 27.5 | 32 | 20 | 11 | 27.5 | 32 | 20 | 11 | 27.5 |
| 1 | 32 | 22 | 13 | 27.5 | 32 | 22 | 13 | 27.5 | 32 | 22 | 13 | 27.5 |
| 1.5 | 32 | 22 | 13 | 27.5 | 32 | 22 | 13 | 27.5 |
|
|
|
|
| 2.2 | 32 | 28 | 14 | 27.5 | 32 | 28 | 14 | 27.5 |
|
|
|
|
| 3.3 | 32 | 33 | 18 | 27.5 | 32 | 33 | 18 | 27.5 |
|
|
|
|
| 4.7 | 32 | 37 | 22 | 27.5 | 32 | 37 | 22 | 27.5 |
|
|
|
|
