Foor Box Open Type Hinged Floor Power Outlet Wiring Distribution Universal Socket Box

Name: Foor Box Open Type Hinged Floor Power Outlet Wiring Distribution Universal Socket Box
Brand: china-manufacturer-directory.com
SKU: 745077375
Availability: InStock
Rating: 4.4 (100 reviews)

Supplier:	Wenzhou Sinoamigo Electrical Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SOB-180SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	with Multi-Switch
Housing Material:	Copper
Application:	Laboratory
Certification:	CE
Customized:	Customized
Installation:	Floor Socket
Color:	Yellow

Product Description

Part of F series Modules

Base box details:

(B170 for SOP-180S and SOP-180B)

Temporary lid

Secure to box body during concrete pour to prevent ingress of slurry.

Steel box body size : 170x170x75mm

(B170K for SOP-180SC and SOP-180BC)

Temporary lid

Secure to box body during concrete pour to prevent ingress of slurry.

Steel box body size : 170x170x90mm

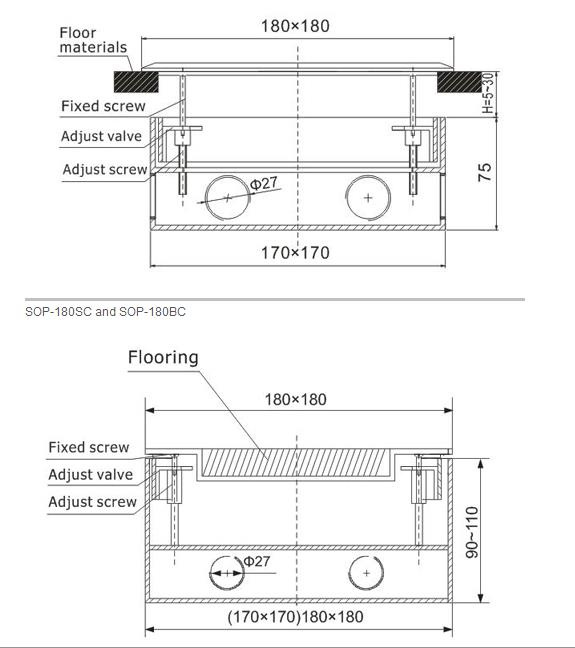

Outline Drawing

SOP-180S and SOP-180B

Specifications:
Panel Size: 180mm x 180mm
Panel Material: Brass alloy
Surface treatment: Satin/Sandblasting/Spray painting
Open way: 90 Degree or 180 Degree Opening.
Interface size:10 modules
Basebox material: Ga steel
Surface color: Golden

Advantages and Features:
1. Whether used in wood, concrete, or raised floors, the Evolution Series Floor Box installs with ease.
They can be installed before or after the floor covering has been put down and they are fully adjustable pre- and post-concrete pour.
2. Sockets uprage easily. Flexibility of inside plate for sockets and swtich installation
3. Lid moulded from high impact polycarbonate
4. Clamp fixing for easy and fast installation

Available accessories: Type 45 or Switchpanel

Interface size	10 modules
Material	Brass alloy
Panel Size	180mm x 180mm
Grounding	Non-Grounding
Type	Floor Socket
Application	Commercial
Voltage	110-220V
Rated Current	10-15A

Basic Data:

Panel material
Frame capacity
Available modules
Damping device (DP)
Optional base boxes

Brassalloy/Stainless steel
8 Modules
Type 45 series
Available
B170& B170K

Model Specification

Model	Panel Material	Panel Size(mm)	Surface Color	Module Capacity
SOP-180S	Stainless steel	180x180	Silver	10
SOP-180B	Brass alloy	180x180	Golden	10
SOP-180SC	Stainless steel	180x180	Silver	10
SOP-180BC	Brass alloy	180x180	Golden	10
