for PC USB Ultrasound Scanner with Software
Product Specifications
| Prod Model: |
TY-6868B-1 USB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Probe Connectors: |
2 Sockets |
| Structure: |
USB Cable, Ultrasonic Box, Probe, Software |
| Group: |
Female |
| Certification: |
ISO13485 |
| Type: |
Ultrasound Scanner |
| Classification: |
Imaging Diagnostic Equipment |
Product Description

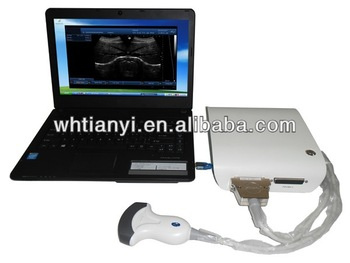

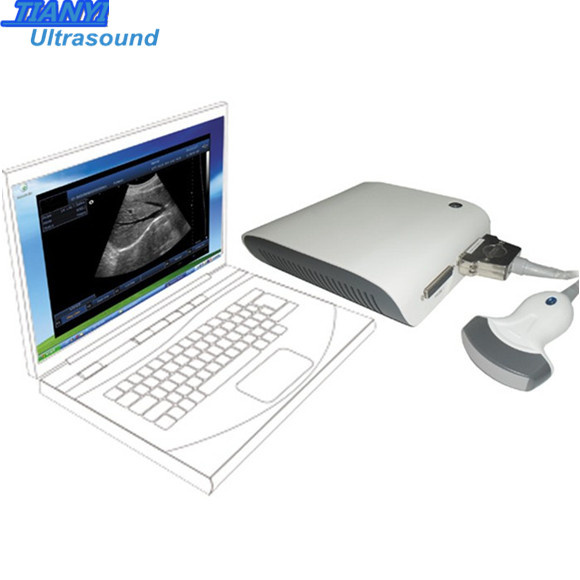

For PC USB ultrasound box with software
Instructions:
For PC USB ultrasound box with software Main Features
-Use computer of user's, lost cost to get ultrasound scanner
-Small and light
-PC based, powerful function, large volume storage
-Full digital, clear image
-3D image function(option)
-Print by computer's USB laser/inkjet printers
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-Operation system: Windows XP(Best) or windows 7
-D-Maximum Scanning Depth: Max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop: Max. 1024 frames
-Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; Enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ Revision.
-Measurement and calculation(human):
B mode: Distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: Heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: Gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: Transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: Optic, thyroid, jaw and face.
-Measurement and calculation(veterinary):
Cattle: BPD, CRL, TD;
Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: By computer hardisk or USB disk
-Print: By USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-3D image function(optional): Can get rebuilt 3D image by any probe
-Weight: With one probe around 1.2kg

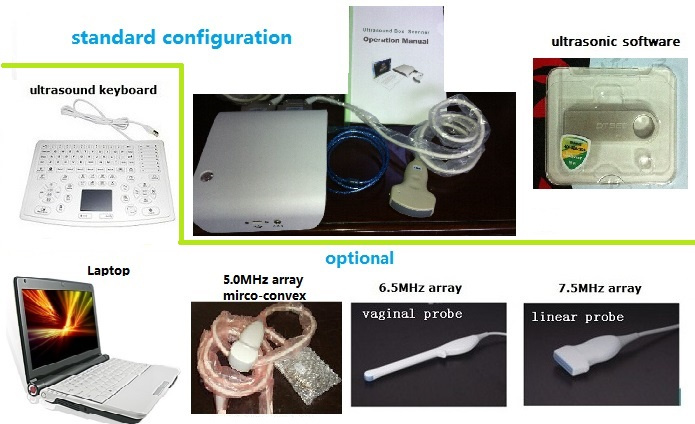

-Work time by battery(optional): About 3 hours| Standard configuration: | Main unit
3.5MHz Electronic convex array probe |
| Optional: | 7.5MHz high frequency linear probe
6.5MHz tranviginal probe
5.0MHz micro-convex probe
li-battery
Silica gel waterproof ultrasound keyboard |
| Gross Weight | 3.2kg |
| |
|
| Warranty | 12months |
| Delivery Time | within 7 days after payment |
Wuhan Tianyi Electronics Co., Ltd. Was founded in 1998. It is a high-tech joint-stock enterprise, specializing in medical equipment research, development, production and sales, including B_ultrasonic machine, medical ultrasound imaging systems, with strong capability to develop new products.
In 2008, the company launched a grand series of digital B-ultrasound diagnostic apparatus in the forefront of the industry, greatly meeting the needs of the vast number of users. Advanced technology, sophisticated design, scientific management, strict quality control, as well as life-after-sales service make our products popular in hospitals and clinics. The products have been widely used in medical ultrasound diagnosis in liver, gall and spleen, pancreas, kidney, heart, bladder, uterus, accessories, a fetus, and family planning departments to check pregnancy, and other checks in the Obstetrics and Gynecology.
The Company has passed YY/T0287-2003 (1S013485: 2003) Medical Devices Quality Management System and IS09001: 2000 Quality Management System Certification. The right to import and export-oriented carry out the companies foundation in the international market. The quality of products has obtained good comments at home and abroad.
All the colleagues in the company will strive to improve the service system and lower the price of our products to make the customers more satisfied. Tianyi campony will contribute to develop modern medical equipment the IPPF and a medical unit, in order to promote universal health!
