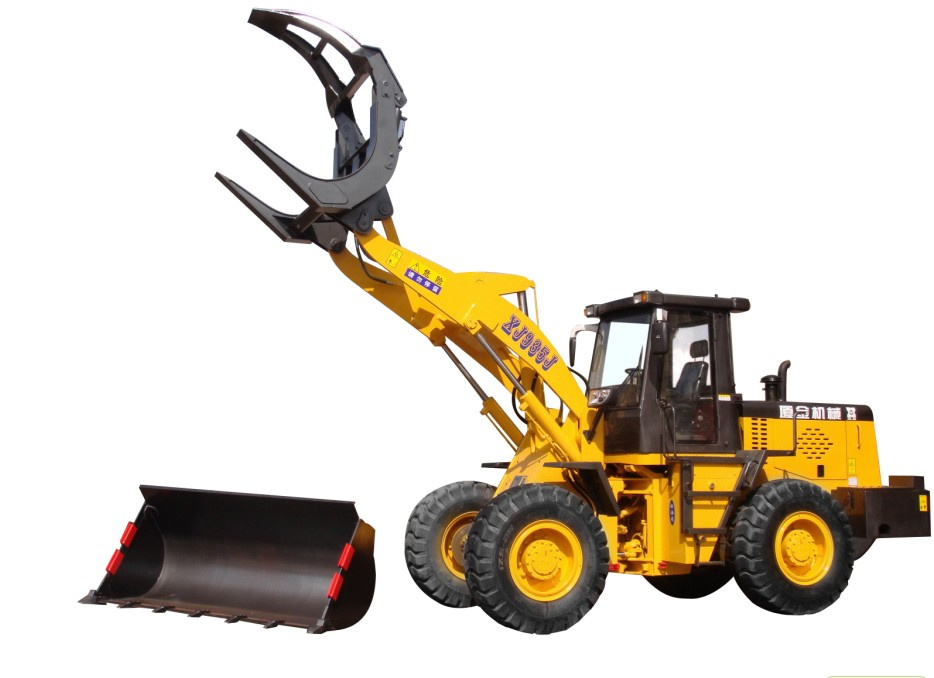

(XJ935J) New and cheapest wood Tractors timber grab
Main performance and parameters
| XJ935IIJ |
| Engine Model | CUMMINS 6BT5.9-C130 |
| Rated power | 130hp |
| Overall dimensions |
| Overall length | 7230mm |
| Overall width | 2440mm |
| Overall height | 2980mm |
| .Dumping height | 3330mm |
| Dumping reach | 1280mm |
| Clamping fork dimensions | |
| Length | 1460mm |
| Width | 1640mm |
| Height | 1540mm |
| Specification of tire |
| 17.5~25 |
| Performance parameters of entire machine |
| Rated Speed | 2200r/min |
| Max. Breakout Force | 120.6KN |
| Max. Traction Force | 75KN |
| Weight | 10.03t |
| Wheel Base | 2755mm |
| Tread Width | 1770mm |
| Max. Climbing Gradient | 30° |
| Bucket capacity | 1.8m3 |
| Rated loading capacity | 3t |
| Number of shifts ( forward / reverse ) | 4/ 2 |
| Lifting time | <5.8s |
| Total cycling time | <10s |
Driver Cab:
1.you can enjoy a nice working environment no matter weather is hot or cold .
2. Luxurious driver cab with large corner windscreen to ensure wide and clear vision.
Fork:
1.Our fork is made by round steel bar through forging technology, which need much complicated processing flow and higher cost. The Round Steel Bar needs more forging times than Square Steel Bar to be fork, so the Round Steel Bar has higher density, and toughness is better and more durable.
2. Enlarged forks and fork arm carrier, which good ensure the big block is not slided easily.
Dear friend,
Thanks very much for your time, hope we will be you the most suitable partners in China.
1. Our professional products, service, and market direction will do help for you find favorable product.
2. Effectively and top-class after-sales service will help you be more competitive in the market.
3. If this product is not the one you find, please kindly let me know, we will timely recommend you more products.
XIAMEN XIAJIN MACHINERY Co., Ltd, the short name----"XIAJIN MACHINERY"(www.hk3.cc), was located in beautiful XIAMEN island, it lies just across Taiwanese-held island of Kinmen, so it is where the trademark 'XIAJIN' from. The company moved to XIAJIN MACHINERY Industrial Park in Tong'an District Xiamen City on August 25, 2011.
The company was established in March, 2000 and the main products are XJ series wheel loader, XJ series block handler arrangement ( XJ955-9D, XJ953-16D, XJ968-18D, XJ968-20D, XJ968-23D, XJ968-27D, XJ968-28D. XJ976-32D, XJ988-40, XJ998-45 ), block handler arrangement with quick coupler(XJ976H, XJ998H ), bulk cargo leveling machine(XJ953PZ), container handling equipment(XJ988H), heavy log loader XJ998J, XJ988J, XJ976J, XJ968J) etc four series high-tech products. The industrial park has three production lines and 3600 testing ground and R&D center, the annual output is 1500 sets.
Through continuous technological investment and R&D, the company has achieved fruitful results in independent innovation: Up to now, the company has obtained 26 utility model patent certificates, 2 appearance patent certificates. Besides, 6 invention patents, 5 utility model patents and 1 PCT international protection are pending. These patents have been applied to the products and mass production. The company has block handler arrangement, bulk cargo leveling machine and container handling equipment etc four series high-tech products now.
Our products not only based on the domestic market, but also exported to all over the world, "XIAJIN MACHINERY" XJ series block handler arrangements have been supplied to world-wide markets such as India, Thailand, Russia, South Africa, Saudi Arabia, Indonesia, Ukraine etc 19 countries through XIAMEN J. M. EXPORT&EXPORT Co., Ltd etc companies. Products are highly-prized by the customers for the high performance price ratio and good service.
The company established a perfect modern enterprise management system and made the enterprise technology innovation develop planning & goal. Established the intellectual property office, hired full-time legal workers to do IPR protection work, created the enterprise culture of 'XIAJIN technology, win-win innovation'. To promote enterprise to fast development road with continuous technological innovation.
