Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Material: |
Limestone, Coke Coal, Feldspar, Clinker... |
| Purpose: |
Crushing Fuel in Sintering Project |
| Maintain: |
Easy to Maintain |
| Feature: |
Simple Structure, Effective Working |
| Type: |
Roller Crusher |
| Crushing Style: |
Extruding & Milling |
| Drive: |
Hydraulic |
| Finished Surface: |
Thread Process |
| Compressive Strength (',For Crushing): |
>300MPA |
| Application: |
Stone Industry |
| Crushing Degree: |
Fine Grinding Machine |
Product Description

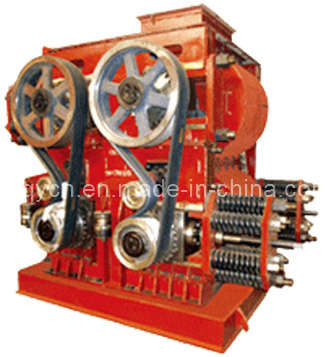

This machine is used for crushing sintering coal, coke powder and other fuel, it's also used for crushing limestone, marl, chalk, brick, slag, chamotte, feldspar, coke and so on.
Detailed Product Description:
Jiaozuo Winner Machinery Co., Ltd was founded in September,1961.Our Main Products:crushing equipment, grinding equipment, ore dressing equipment, metallurgy equipment and other series. These are widely used in metallurgy, mine, cement, building materials , chemical industry, environmental protection and other industries.
Application:
This equipment is used for crushing large sinter into small size that conforms to process requirements, the work temperature is about 900celsius degree, and the work condition is wicked; The special cool gear can make this equipment's function stable, for diminishing the cost of using.
Specification:
About Us:
Jiaozuo Winner Machinery Co., Ltd is a modern large joint-stock enterprise which includes scientific research, manufacture, sale and service. The company is located in Jiaozuo, one of the Top Tourism Cities and nearby the World Geopark Yuntai Mountain.
Winner company was founded in September, 1961, and the total assets worth RMB 180 million. The company covers has 120,000m2, including 65,000m2 standardize plant. As the result of fifty-year development, Winner Company has become an important manufacturer and exporter of heavy machineries in China.
In Winner Company, there are rivet welding, machining, assembling, casting, heat treating, maintaining and other manufacture plants and branch companies. Also, we have the capability of conducting physical and chemical experiments, measure detection, nondestructive testing and other testing methods.
The company keeps long term cooperation with many design institutes, found a set of prominent quality guarantee, including product development, design, installation, manufacture and after-sales service.
Why choose us
1. We Are Factory
All machineries from Jiaozuo Winner Machinery Co.,Ltd are made by ourselves,
with lower price, good quality and assured full after service.
2. Full and Perfect Service
a.Pre-sale services:
We provide you the equipment according to your special demand.
b.Sale services:
Send technicians to the jobsite for guiding the installation and adjustment.
c.After-sale services:
To establish long term friendship, we will regularly pay return visit to
customers.
Welcome to visit our factory!
Crushing materials | Medium hardness ore, limestone, chalk, chamotte,etc. |
| Roller size(mm) | Ø750x500 | Ø900x700 |
| Feeding size(mm) | 30 | Capacity (t/h) | When the upper rollers distance is 40mm and the lower rollers distance is 10mm | ≈18 |
| Discharging size (mm) | 2-4 | When the upper rollers distance is 10mm and the lower rollers distance is 2mm | ≈16 |
Upper roller
rotation speed
(rpm) | 115.5 | Feeding size
(mm) | When the upper rollers distance is 40mm | ≈100 |
Lower roller
rotation speed
(rpm) | 215.5 | When the lower rollers distance is 40mm | ≈40 |
Turning
rotation speed
(rpm) | 57 | Motor | Type | Used for upper active roller | YD250M-12/6 |
| Discharging size (mm) | 2 |
| 3 | Used for lower active roller | Y225M-6 |
| 4 | Power
( kw) | When it's crushing | upper active roller | 24 |
| Capacity(t/h) (corresponding discharging size) | 5.5-6 | lower active roller | 30 |
| 8-9 | When it's turning | 15 |
| 11-12 |
| Upper roller motor | Type | YD180L-8/4 | Rotation speed (rpm) | When it's crushing | 980 |
Power
(kw) | 11/17 |
| Lower roller motor | Type | Y200L1-6 | When it's turning | 480 |
Power
(kw) | 18.5 | Roller rotation speed when it's crushing
(rpm) | Upper active roller and upper passive roller | 98 |
Upper roller
reduction gear | JZQ400-12.6 | Lower active roller and lower passive roller | 196 |
Roller rotation speed when it's turning
(rpm) | Upper active roller and upper passive roller | 48 |
| Lower active roller and lower passive roller | 48 |
Lower roller
reduction gear | ZD20-4.5 | reduction gear for upper active roller | ZL50-10 | Speed ratio i=10 |
| reduction gear for lower active roller | ZD30-5 | Speed ratio
i=5 |
| Weight(kg) | 17320 | Weight(kg) | 27378 |
Jiaozuo Winner Machinery Co., Ltd. Was founded in 1961, restructured in 2003 as joint-stock enterprises, the total assets of the company is USD 23 million, and covers an area of 160, 000 square meters. The existing staff of more than 1600, with more than 200 professional and technical personnel, and specifically for the metallurgical, mining, building materials, chemicals, coal and electric power, providing crusher, ball mill, processing equipment, pellet and sintering equipment, cement, building materials equipment, coal washing, mineral equipment and hoisting equipment. It' S the good faith enterprises in Henan and the focus of industrial enterprises in Jiao Zuo.
The company has large scale welding, machining, assembly, casting, forging, heat treatment, maintenance workshop and accessories company, the physical and chemical experiments, the measurement detection, nondestructive testing and other testing methods are complete, using three-dimensional computer design technology and finite element analysis in technology, having the capability of independent product design and development, the complete and reliable production process and the solid technical. The company currently has multiple large scale processing equipments, such as DIA8m vertical lathe, DIA6.3m vertical lathe, DIA5m hobbling machine, DIA8m hobbling machine, DIA6.0mX20.0m cylinder lathe, DIA12m milling machine, DIA220mm boring, DIA160mm boring, T6216 boring, DIA160mm landing boring and milling machine, CNC-4000 cutting machine, HJ-5 automatic welding center, 100mm board-coiling machine, DIA3.5m, DIA2.5m CNC vertical lathe, gantry milling machine and so on, providing 90 varieties and more than 600 specifications of products for many industries. The company found a set of perfect quality guarantee system from product development, design, and installation commissioning and after-sale service. The products are exported to many countries and regions. The mineral dressing products, especially crusher and ball mill have dominance in domestic market. The run mill, cylinder mixers, ball-making machine, single-roller crusher, rotary kiln, drying machines and other pellet and sintering products were used in many major iron and steel companies. Hoist and winch are national security standard products, having a good used for the coal and mining group in province.
"Customer' s first, quality' S first, integrity management and quality service" is our company' S business purpose, quality' S reliable and satisfying service is our company' S foundation for revitalization and development, technological innovation, people-oriented. The company keeps a long-term touch with many metallurgy, machinery, chemicals, coal and other design institutes, working together for the developing of quality products and the application of internal leading-edge technology.
