Product Specifications
| Prod Model: |
ZHX-M416 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Width: |
160mm |
| Certification: |
SGS |
| Motor Power: |
21.25kw |
| Working Depth: |
8-120mm |
| Working Width: |
160mm |
| Type: |
Four-Side Moulder |
Product Description
？Four-side moulder
1)Each principal axis adopts independent drive to electric motor,features stronger cutoff force.
2)Adusts for principal axis integrates at central of frontal side, features easy operation.
3)Galvanized workstation features superior abrasion resistance.
4)Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
5)Active roller below improves feeding efficiency.
6)Pneumatic pressing feeding roller section by section adjusts for pressing force,it favors for smooth feed-in of different thicknesses of timber.
7)Adopts central charging system,feetures convenience and promptness.
8)Equips with world-class electric element,features superior stability.
9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.
10)Double-deck working tables;it is easy for maintenance.
11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors Forsmooth Feed-In Of Dfferent Thickness Of Timber.？
？
|

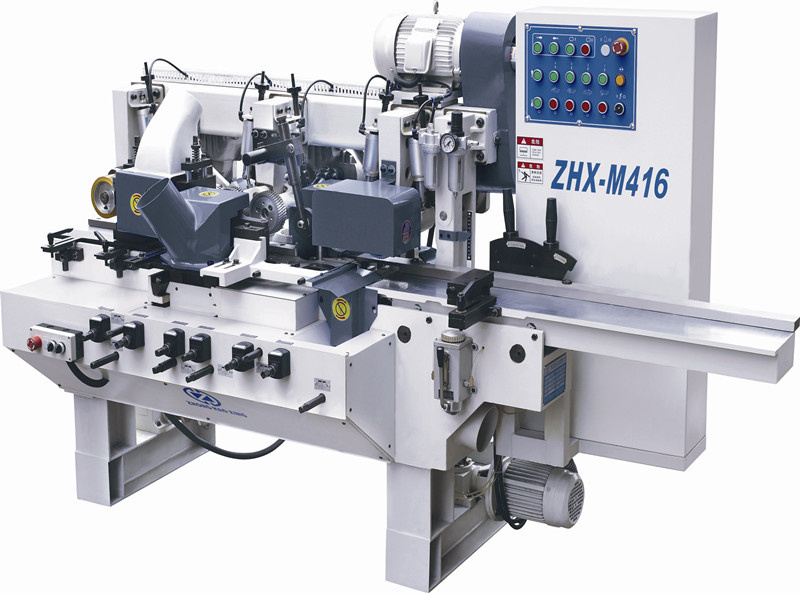

Model:ZHX-M416 Four-side Moulder |
|
Technical data |
|
|
Machine Parameter |
|
Working Width: |
15-160mm |
|
Working Thickness: |
8-120mm |
|
Operating Platform Length: |
1800mm |
|
Feeding Speed: |
5-25m/min |
|
Spindle Diameter: |
ø40mm |
|
Spindle Speed: |
6000r/min |
|
Gas Source Press: |
0.6MPa |
|
Motor Power: |
|
Ist Bottom Sindle: |
4kw/10HP |
|
First Top Spindle: |
5.5kw/15HP |
|
Right Side Spindle: |
5.5kw/10HP |
|
Left Side Spindle: |
4kw/10HP |
|
Second Top Spindle: |
-- |
|
Second Bottom Spindle: |
-- |
|
Feed Beam Rise&Fall: |
0.75kw/1HP |
|
Feeding: |
3kw/5.5HP |
|
Total Motor Power: |
21.25kw/40HP |
|
Knife Diameter: |
|
Right Side Spindle: |
ø125-ø160mm |
|
Left Side Spindle: |
ø125-ø160mm |
|
Ist Bottom Spindle: |
ø125 |
|
First Top Spindle: |
ø125-ø160mm |
|
Feeding Wheel Diameter: |
ø120mm |
|
Dust Absorption Tube Diameter: |
ø125mm |
|
Overall Machine Dimension: |
3000*1500*1650mm |
|
Gross Weight(kg): |
1850 |
|
Net Weight(kg): |
1900 |
