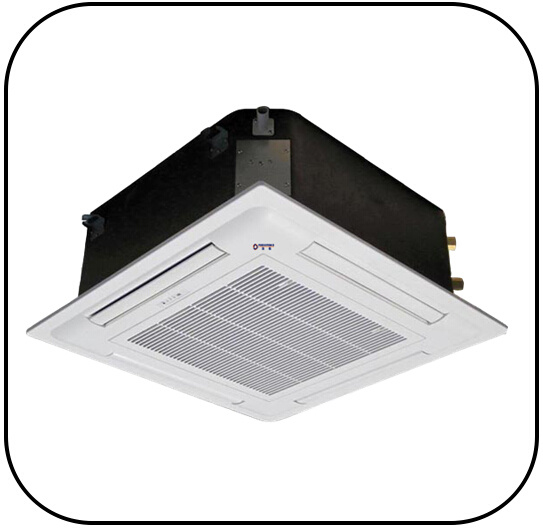

Four Way Cassette Fan Coil Unit (H Type)

Name: Four Way Cassette Fan Coil Unit (H Type)
Brand: china-manufacturer-directory.com
SKU: 677995712
Availability: InStock
Rating: 4.8 (146 reviews)

Supplier:	Shanghai Bojin Business Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	BJFP-XX-KM4H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Bjfp-Xx-Km4h
Drain Pump:	Life 750mm
Motor:	DC for Option
Usage:	for Air Conditioner
Cooling Method:	Water
Blade Material:	Plastic
Certification:	CCC
Type:	H Type
Electric Current Type:	AC Standard, DC Optional
Mounting:	Ceiling Cassette

Product Description

General Features:

1. Cooling capacity: 1.8-13.6kw
2. Air volume: 340-2380 kw
3. Condensing drain pump with lift 750 mm
4. Big air volume, low noise
5. 4way air outlet
6. DC motor is for option
7. The big diameter turbo fan is adopted
8. 4 pipe is avaiable

For detail, welcome to contact us freely.

Model				BJFP-34KM4H2	BJFP-51KM4H2	BJFP-68KM4H2	BJFP-80KM4H2	BJFP-85KM4H2	BJFP-102KM4H2	BJFP-136KM4H2	BJFP-170KM4H2	BJFP-204KM4H2	BJFP-238KM4H2
Power supply				220V,50Hz,1Ph
Air volume		H	m3/h	340	510	680	800	850	1020	1360	1700	2040	2380
		M		290	400	540	650	700	850	1110	1400	1670	1950
		L		200	290	400	500	550	680	860	1100	1300	152-
static pressure			Pa	0	0	0		0	0	0	0	0	0
Cooling capacity	TH	H	W	1800	2700	3600	4200	4500	5400	7200	9000	10800	12600
	TH		BTU/h	6142	9212	12283	14300	15354	18425	24566	30708	36850	42991
	SH		W	1365	2100	2790	3200	3365	4085	5702	6780	8240	9320
	SH		BTU/h	4657	7165	9519	10918	11481	13938	19455	23133	28115	31800
	TH	M	W	1555	2341	3080	3570	3811	4510	6187	7600	9221	10513
	1092	M	W	1092	1680	2186	2500	2604	3130	4300	5301	6490	7300
	TH	L	W	1367	2059	2700	3201	3362	4040	5515	6733	8230	9390
	SH	L	W	883	1316	1743	2055	2117	2532	3458	4314	5314	5857
Heating capacity	H		W	2700	4050	5400	6350	6750	8100	10800	13500	16200	18900
	M		W	2187	3210	4375	5108	5435	6550	8691	11000	13259	15300
	L		W	1896	2812	3751	4396	4673	5570	7413	9319	11312	12890
Noise	H	0Pa	dB(A)	37	39	41	42	43	45	46	48	50	51
Power input	H	0Pa	W	37	52	62	65	76	96	134	152	189	228
Waterflow volume			m3/h	0.31	0.46	0.62	0.73	0.77	0.93	1.23	1.54	1.85	2.16
Water pressure dropping			kPa	11.8	12.9	22.1	24.3	18.2	26.8	28.4	33.2	35.4	38.4
Dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
Dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
Working pressure			Mpa	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Dimension of water drain pipe			mm	¢26	¢26	¢26	¢26	¢26	¢26	¢26	¢26	¢26	¢26
Net dimension	unit		L×W×H mm	570570290				730730290			930930290
Net dimension	panel		L×W×H mm	65065045				85085045			1050105045
Net weight	unit		kg	21	21	23	24	27	28	28	31	32	33
Net weight	panel		kg	3				6			9

Founded in 2000, Shanghai Bojin Business Development Company (Persistence) is a member of Hong Kong Armada international group, a professional Heating, Ventilation and Air Conditioning (HVAC) enterprise, owned high reputation in domestic and abroad markets. Our services are designed to help our worldwide customers with more reliable product and efficient cooperation.

BOJIN(Persistence ) headquarter office sets up in China financial center Shanghai and the factory is located at zhengjiang Provience. Factory area is around 30, 000m2, with 10 assembly lines, 8 accessory production lines. BOJIN (PERSISTENCE)possesses completed air conditioner industry chain with more than 200 employees. In addition to Bojin(Persistence) own brand products, we also accept large quantity of ODM and OEM order yearly.

Bojin(Persistence) product range is:

Fresh Air System(Heat Recovery Ventilator/ Recuperator):

A. Ceiling total heat exchanger unit

B. Vertical total heat exchanger unit

C. Energy saving ceiling type air handling unit

D. Energy saving horizontal type air handling unit

E. Energy saving vertical type air handling unit

F. Modular type total heat exchanger unit

G. Rotary type total heat exchanger unit

H. Integration Heat Pump Type Heat Recovery Unit(Horizontal)

I. Duct fresh air dehumidifier (Industrial use)

J. Ceiling concealed fresh air dehumidifier (Room use)

K. General ventilators

HVAC System(Water chilled / Hydronic / Terminal unit / Heat Pump):

A. Ceiling cassette fan coil unit with 3 kind of different air outlet: One way, four way, circulation way

B. Universal fan coil unit with 6 type for choice

C. Duct fan coil unit

D. High wall mounted fan coil unit

E. Standard air handling unit with ceiling type/vertical type/horizontal type

F. Modular air handling unit

G. Water loop heat pump

VRV/VRF Central Air Conditioning System

A. Daikin

B. Hitachi

C. LG

D. Fujitsu

E. Mitsubishi Electric

Accessory:

A. Thermostat

B. Valve

C. CO2 controller

D. Air diffuser

Welcome your inquiry at any time!
